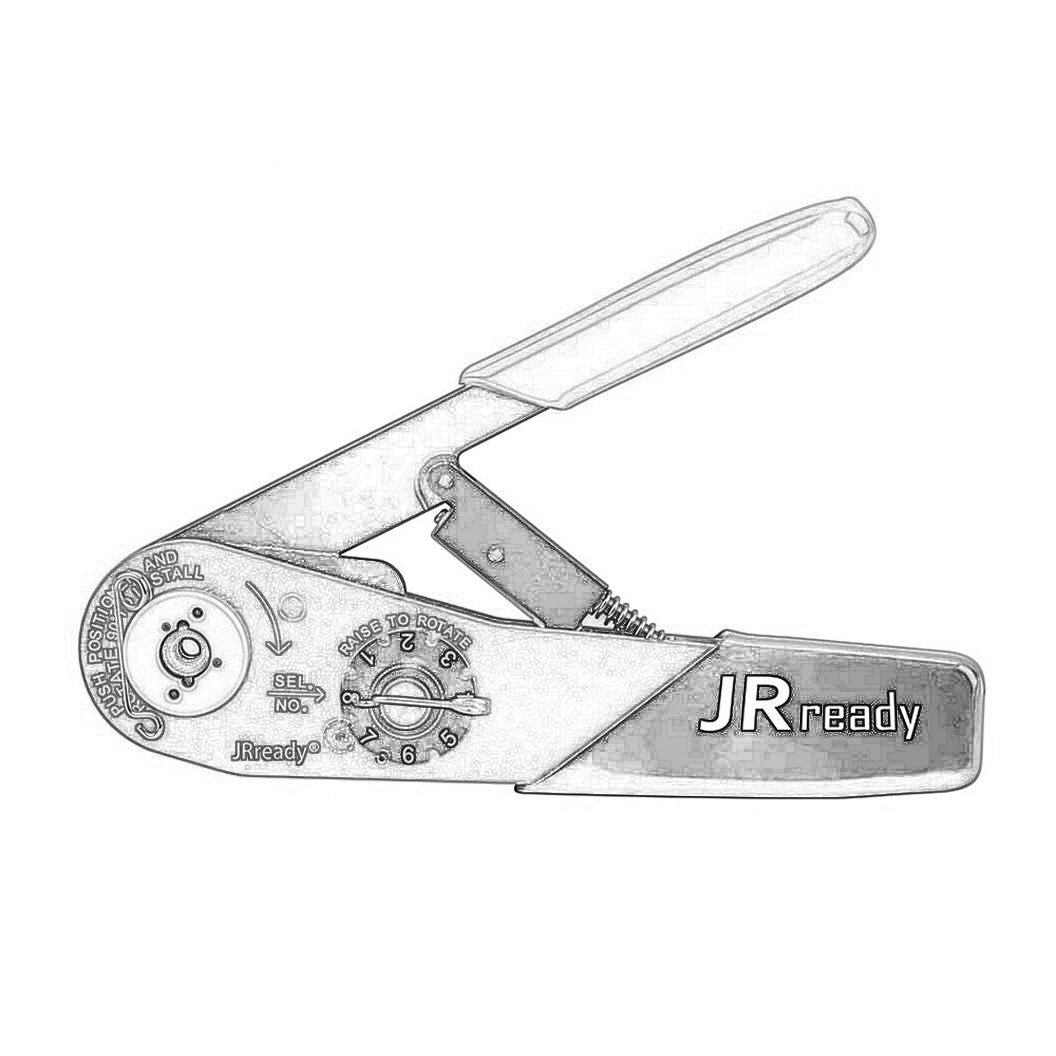

JRready Miniature Adjustable Hand Crimp Tool YJQ-MH992 Fine Tipped Crimp Tool for Electric Military Connectors 36 AWG

YJQ-MH992 Fine Tipped Indenter Tool

The MH992 Fine Tipped Indenter tools are similar to the AFM8 miniature adjustable indent crimp tool, but have sharper indenter tips measuring .07 inches.

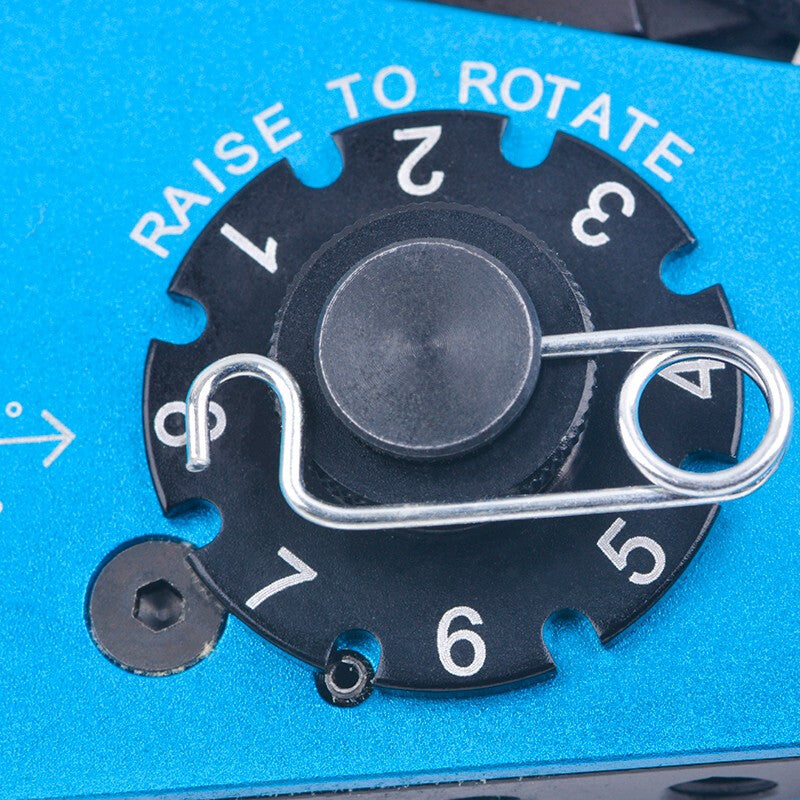

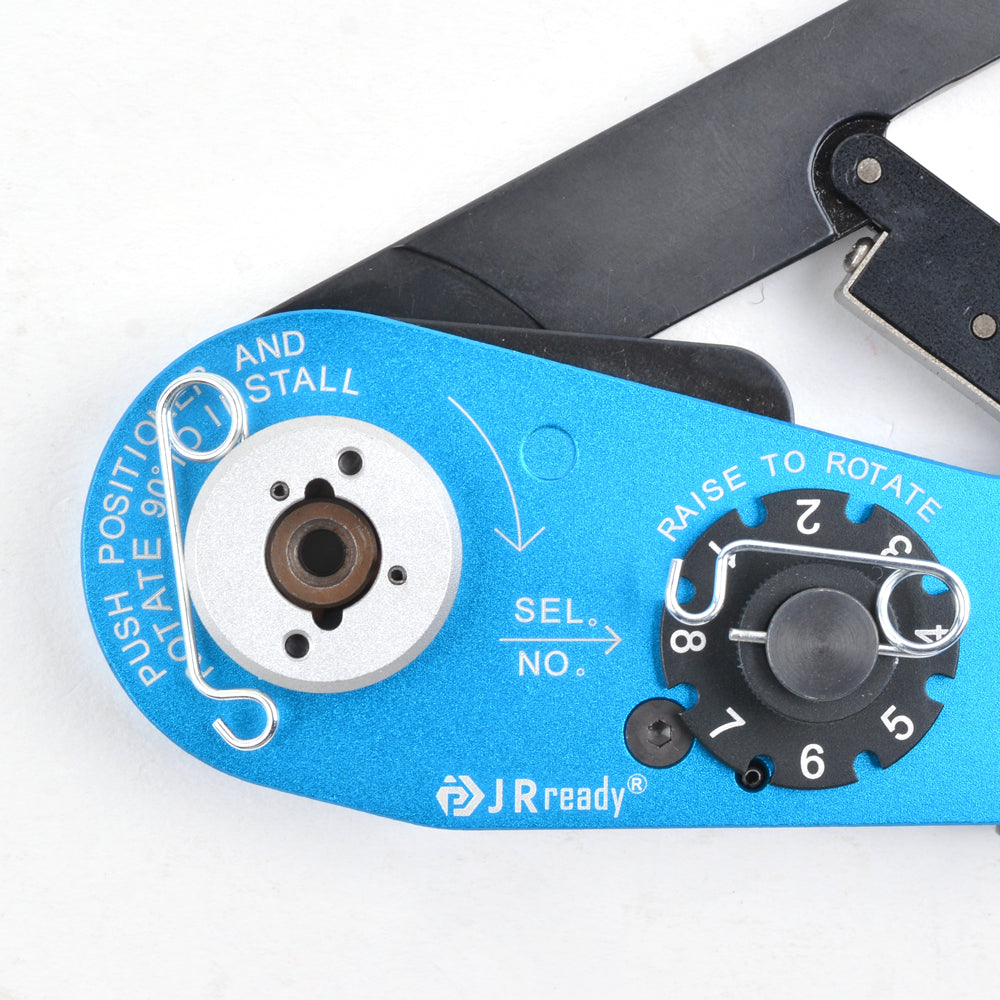

The MH992 tool produces an 8-indent crimp. The MH992 has eight crimp settings from 0.0070 to 0.0330 inches and is gaged with the G822 Go/No-Go gage.

The tool is 6.75 inches in length and weighs approximately 10 oz.

The pneumatic power version of this tool is the.

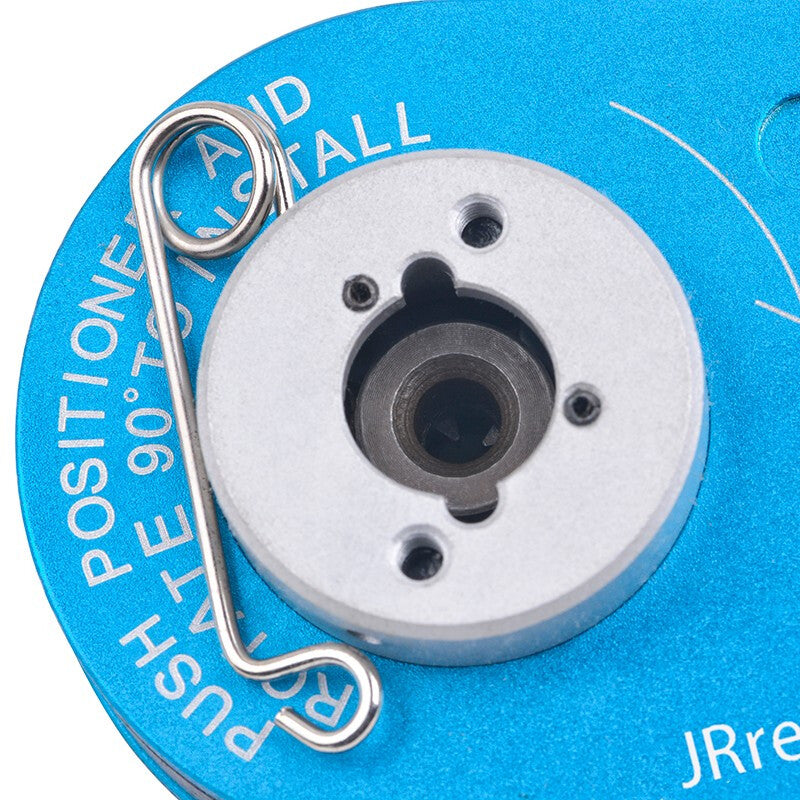

YJQ-MH992 is widely used for the crimping of wires and contacts in electronic connectors. It’s a type of fine tipped crimp tool with miniature indenters. Minimum wire crimp size up to 36awg（0.0127 mm²）. Adapts M22520/1 series positioners.

Minimum Wire Size: 36AWG
Through-hole Diameter: 3.6mm / 0.141 inch
Weight: 300g / 0.66 lb
Length: 190mm / 7.5 inch
Crimp style:4-indents 8-impressions

GAGING LIMITS OF INDENTERS:
Selector No. Intender Working Diameter mm/INCH
Selector No. 1 0.18/0.0070 (GO) --0.23/0.0090 (NO GO)
Selector No. 2 0.24/0.0095 (GO) --0.29/0.0115 (NO GO)
Selector No. 3 0.30/0.0120 (GO) --0.36/0.0140 (NO GO)
Selector No. 4 0.38/0.0150 (GO) --0.43/0.0170 (NO GO)
Selector No. 5 0.46/0.0180 (GO) --0.51/0.0200 (NO GO)
Selector No. 6 0.57/0.0225 (GO) --0.64/0.0250 (NO GO)
Selector No. 7 0.66/0.0260 (GO) --0.72/0.0285 (NO GO)
Selector No. 8 0.77/0.0305 (GO) --0.84/0.0330 (NO GO)
CHECK WITH GAGE G822 GO / NO-GO GAGE SELECTOR NO. 8
