JRready tools

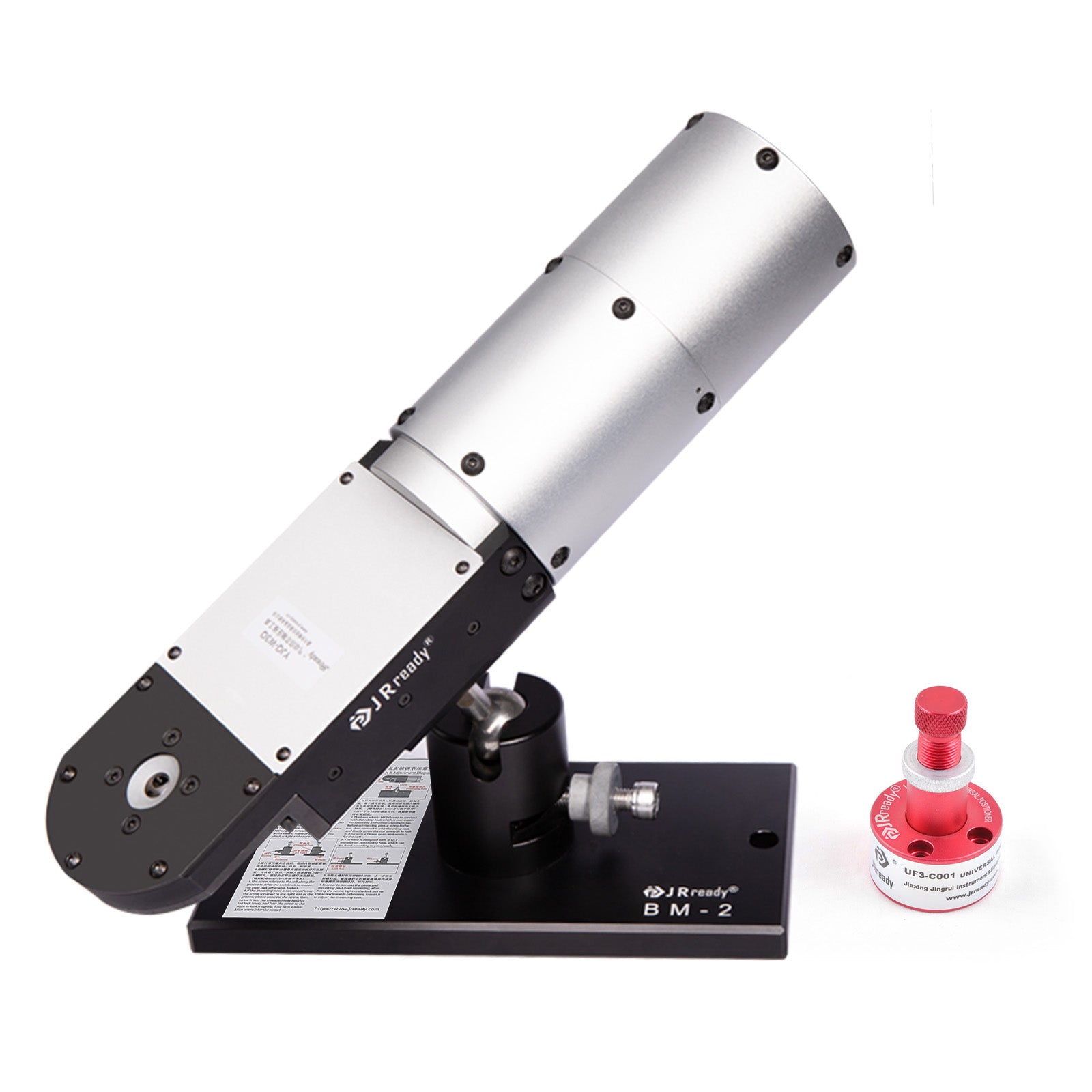

ST4030 Pneumatic Crimp Tool Kit: YJQ-W3Q WA27-309-2C Pneumatic Mid-Current Range Crimp Tool & UF3-C001 Adjustable Positioner 8-18 AWG

Regular price $769.00
/

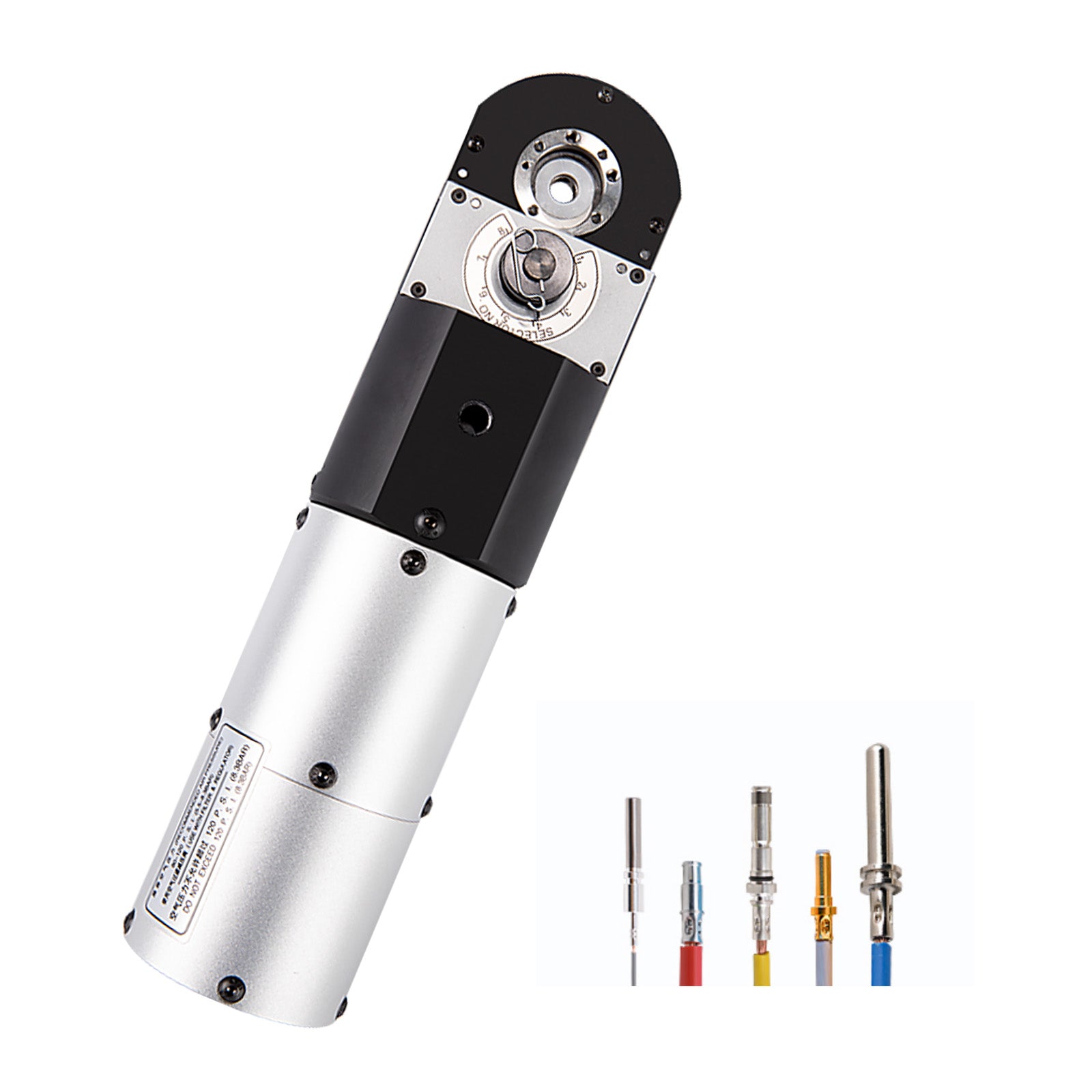

  • It is is widely used for the crimping of wires and contacts in both military and proprietary programs
  • Compatible with hand crimp tool ACT-M309,equivalent to pneumatic tool WA27-309-2C

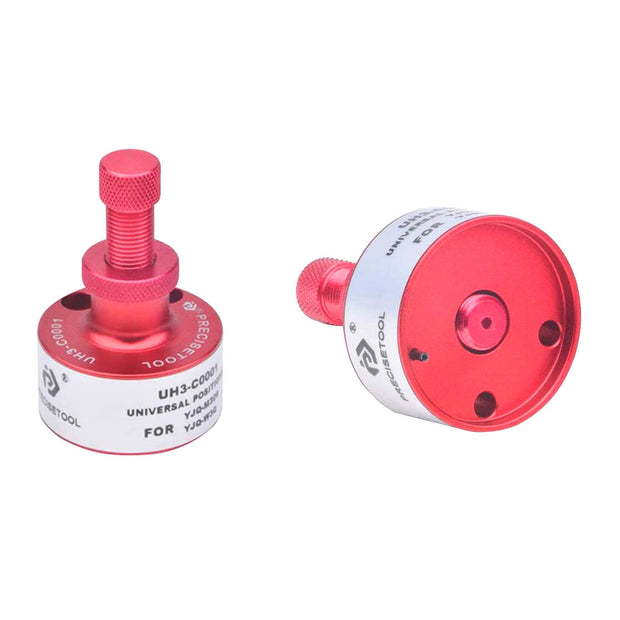

  • UF3-C001:Adjusting screw and lock nut are respectively used in length adjustment and nut lock
  • Air control system is a combination of air control components which cyclically controlled by foot value
  • Adjustable bench mount is quick and easy positioning and unlocking,multi-angle rotation, 360-degree adjustment in the horizontal direction

FEATURES:
● Productivity (It can crimp 30-40 contacts per minute,High production)
● Material of Mould Steel (Good Durability & Good Anti-deformation & Good appearance & Anti-rust)

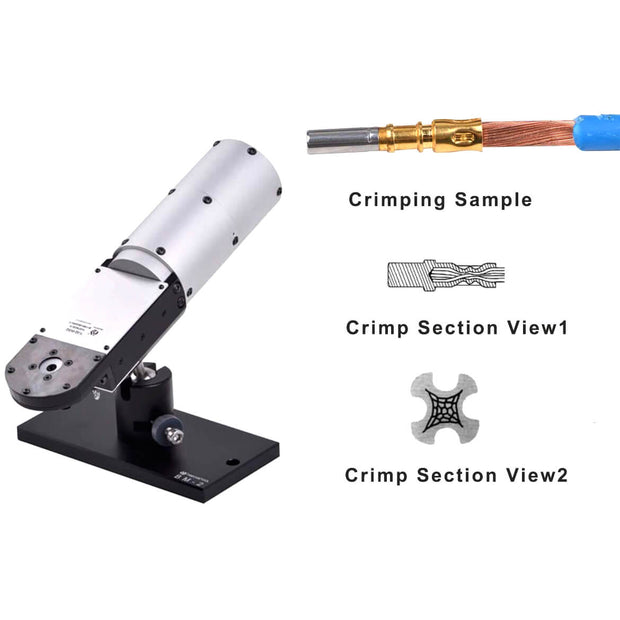

● Four-indent Crimp Tool (Crimp tension is 1.3 times that of the hexagonal crimp, more stable & more reliable)

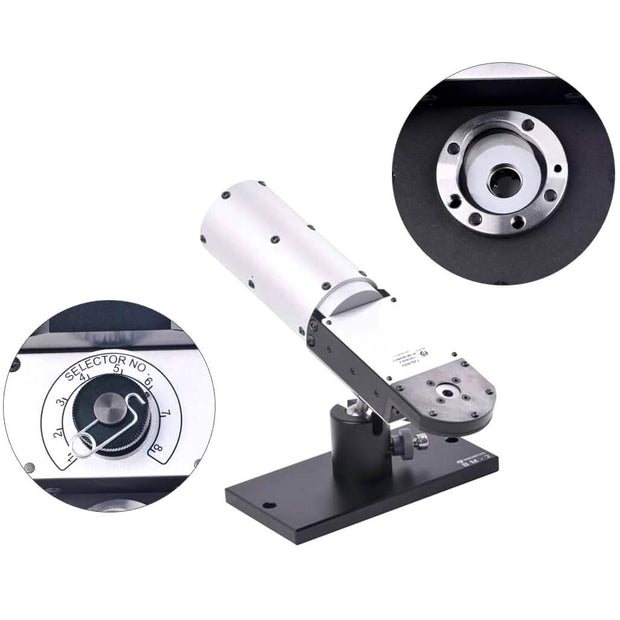

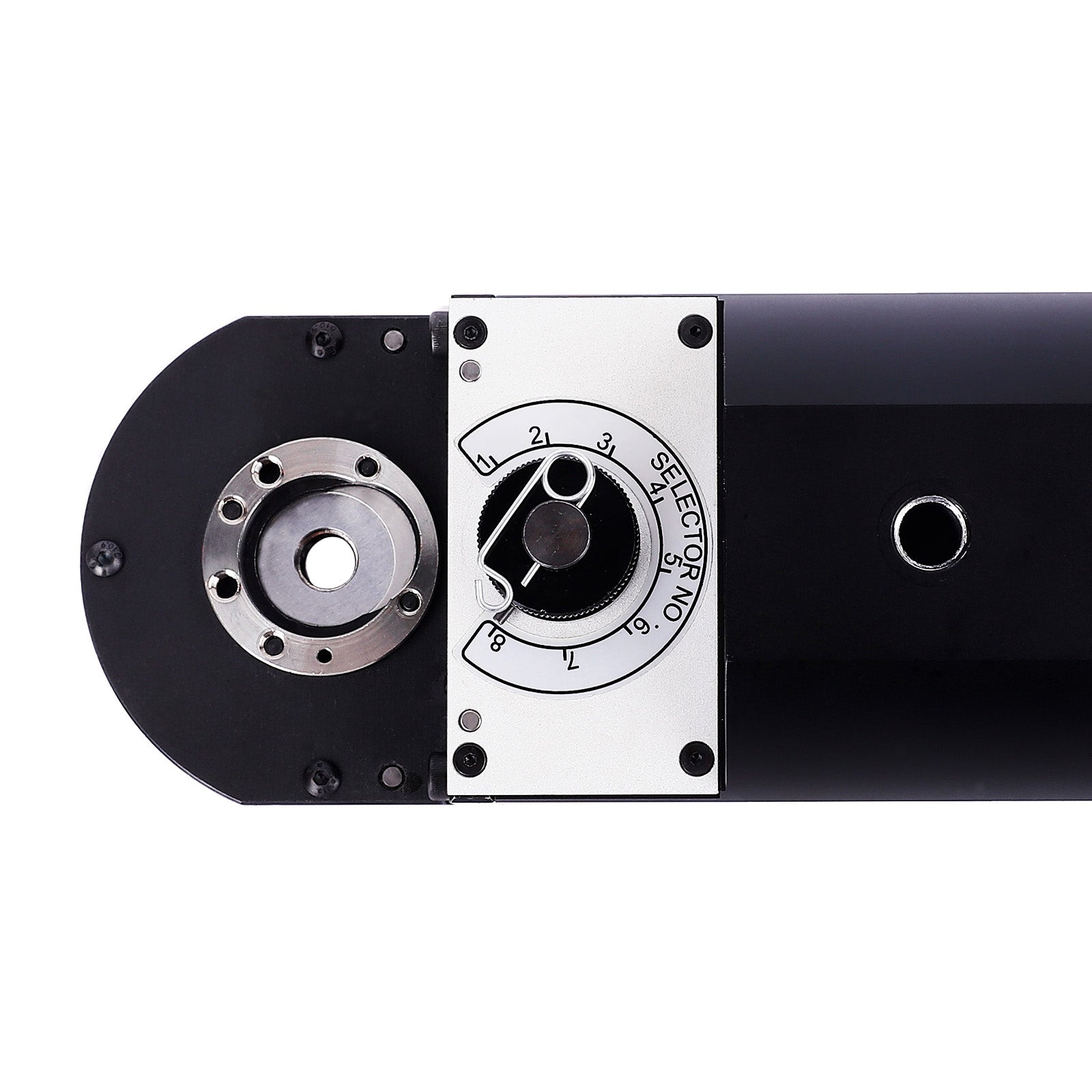

● 8 Selector Numbers(Adjustable crimping ranges in different selector number, more convenient for wider applications)

SPECIFICATIONS:
● Material: Mould Steel
● AWG: 8-18AWG (8.37-0.8107mm²)
● Thru-Hole Diameter (mm): Φ8.3
● Air Supply & Working Air Pressure (Bar): 5.5-8.3

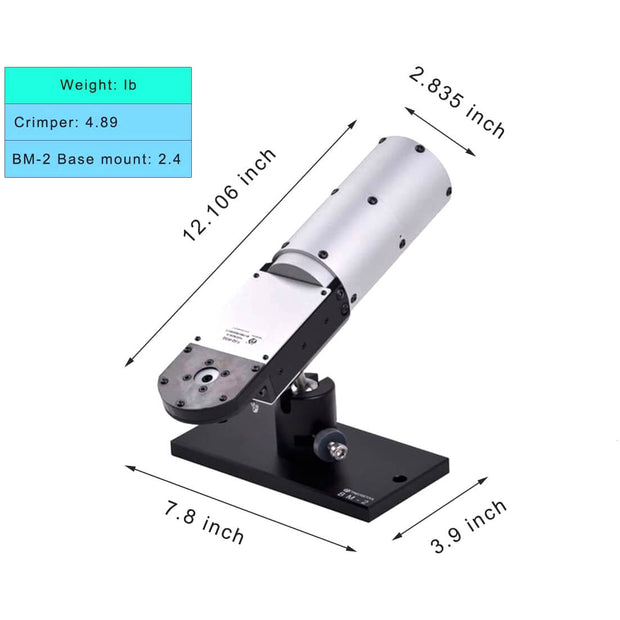

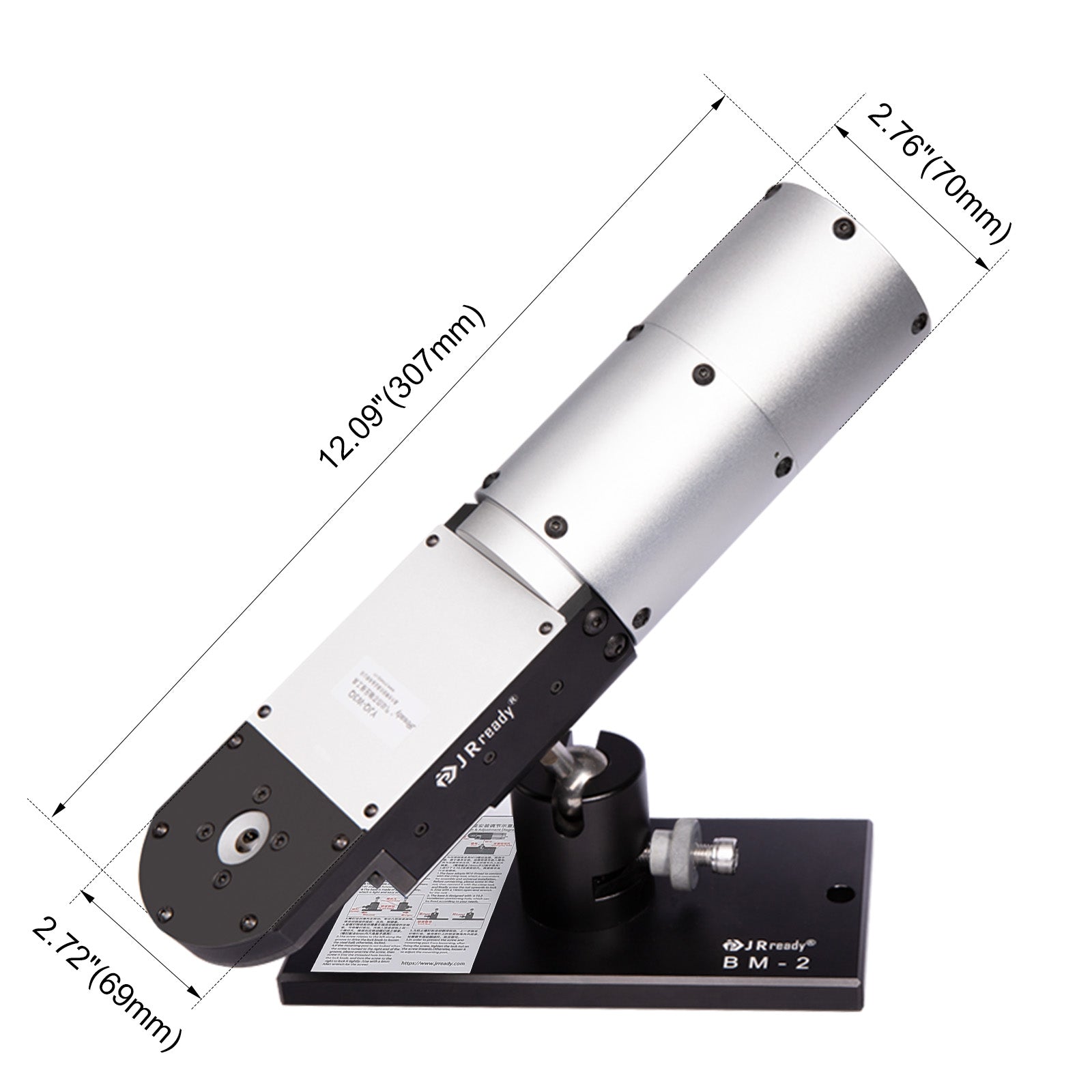

● Dimension (mm): 307.5*70.5*69.3
● Weight (g): 2218

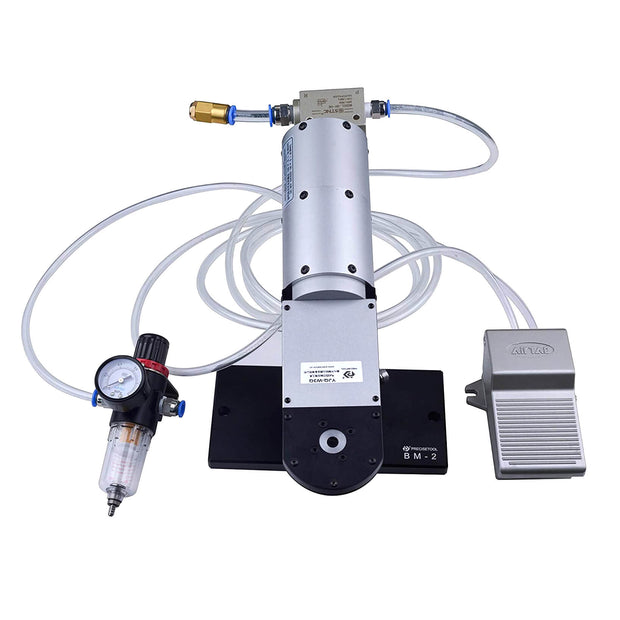

PACKAGE INCLUDED:
1 × Pneumatic Crimping Tool YJQ-W3Q
1 × UF3-C001 Positioner
1 × BM-2 Adjustable Bench Mount

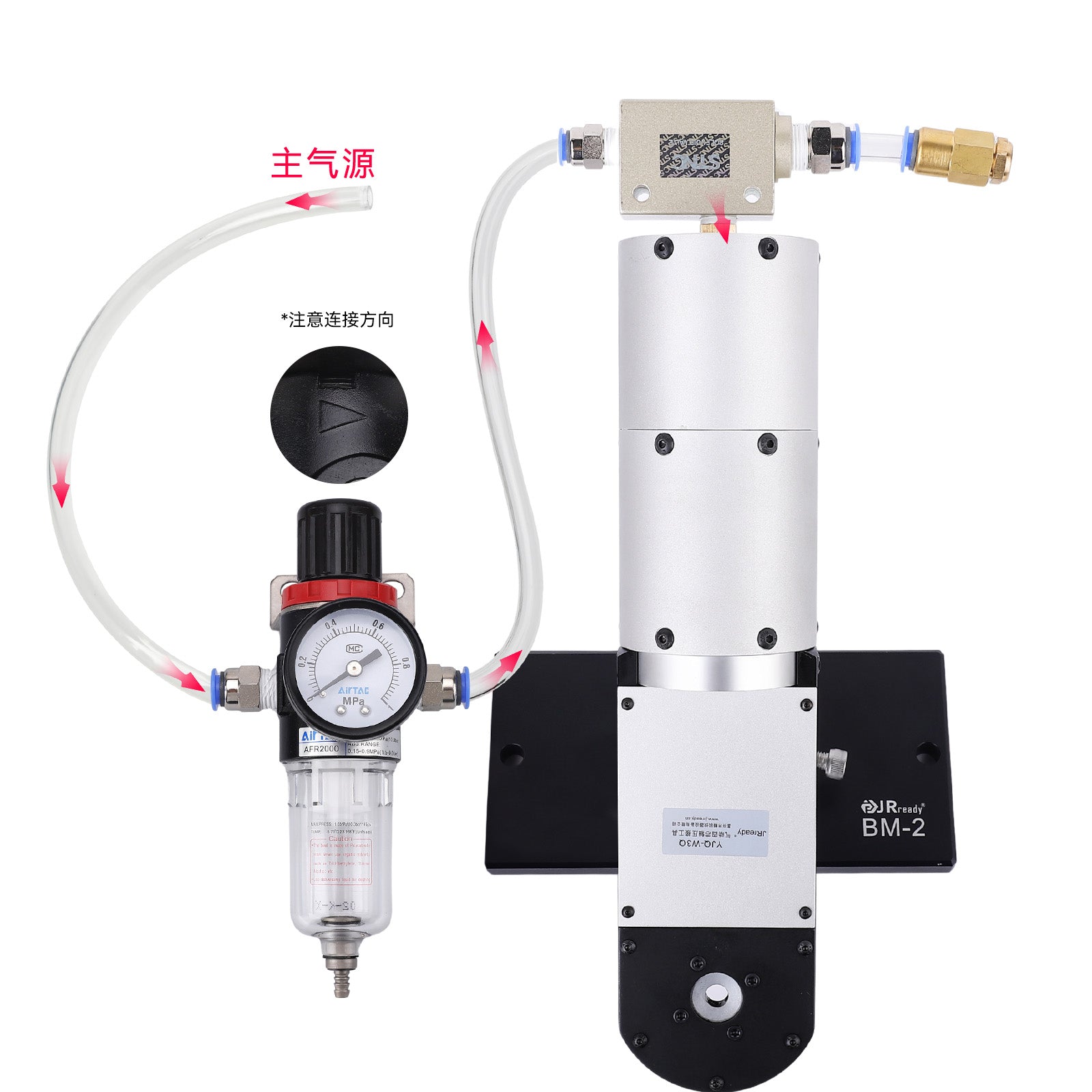

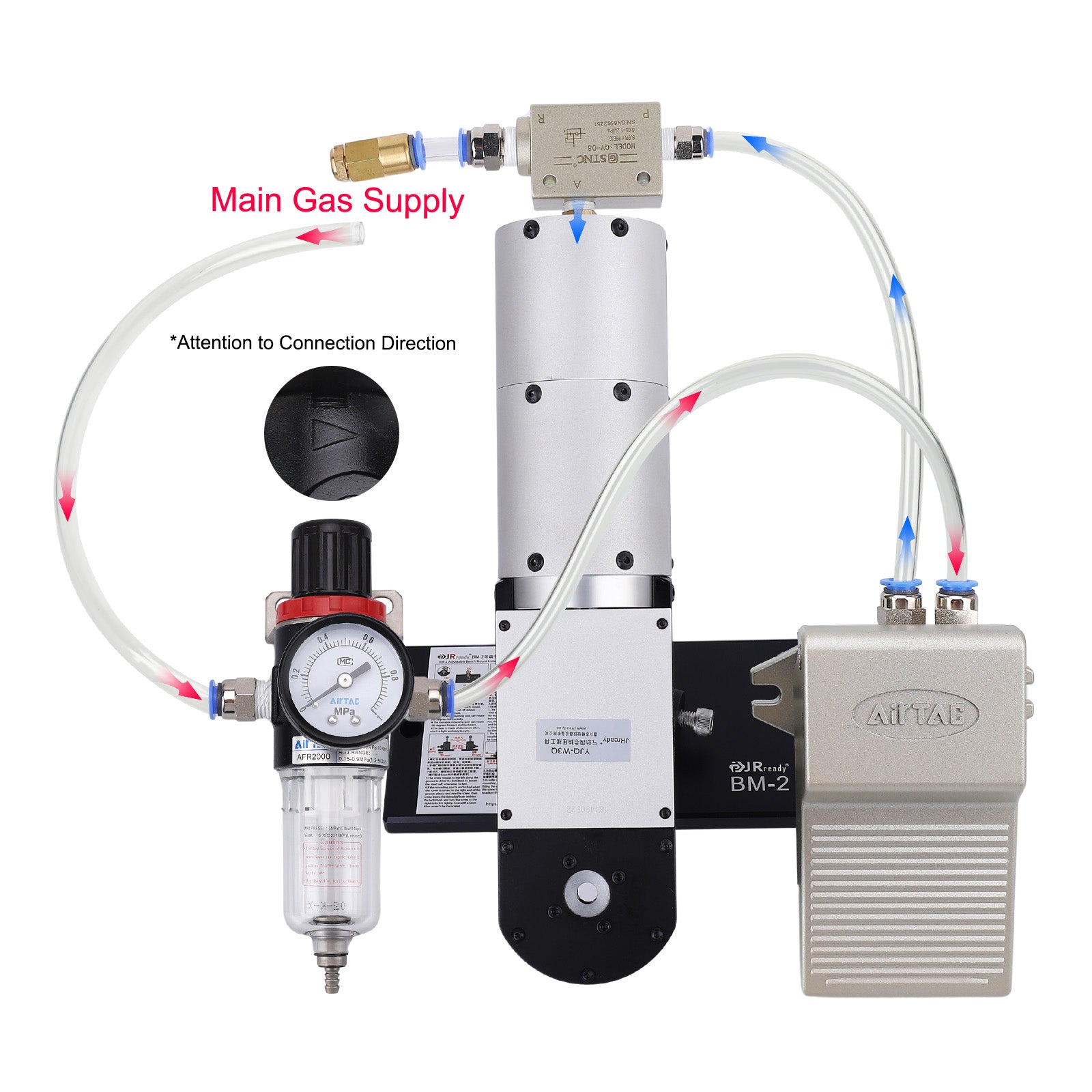

1 × PC-SUITE2 Air Control System(foot value, regulating value, exhaust valve, and air pipes)
