ST5133 86 Positioners KIT G145 Gauge Work with MH860 YJQ-W7A Astro Crimping Tool

Regular price $130.00
/

  • This positioner tool kit is suitable for MH860 crimper YJQ-W7A(manual) & YJQ-W7Q(pneumatic)
  • Suitable terminal contacts M39029/58-360 M39029/57-354 M39029/31-228 M39029/32-247 M39029/31-240 M39029/32-259 M39029/4-112 M39029/5-117 M39029/31-229 M39029/32-248 etc.
  • The YJQ-W7A accepts the entire middle wire range of 16 through 28 AWG, with these positioners which adapt it to virtually all applications consistent with others in the MIL DTL-22520 family
  • The 86-37 is a universal positioner that has an adjusting screw and a lock nut, so the position of the crimping can be adjusted up and down

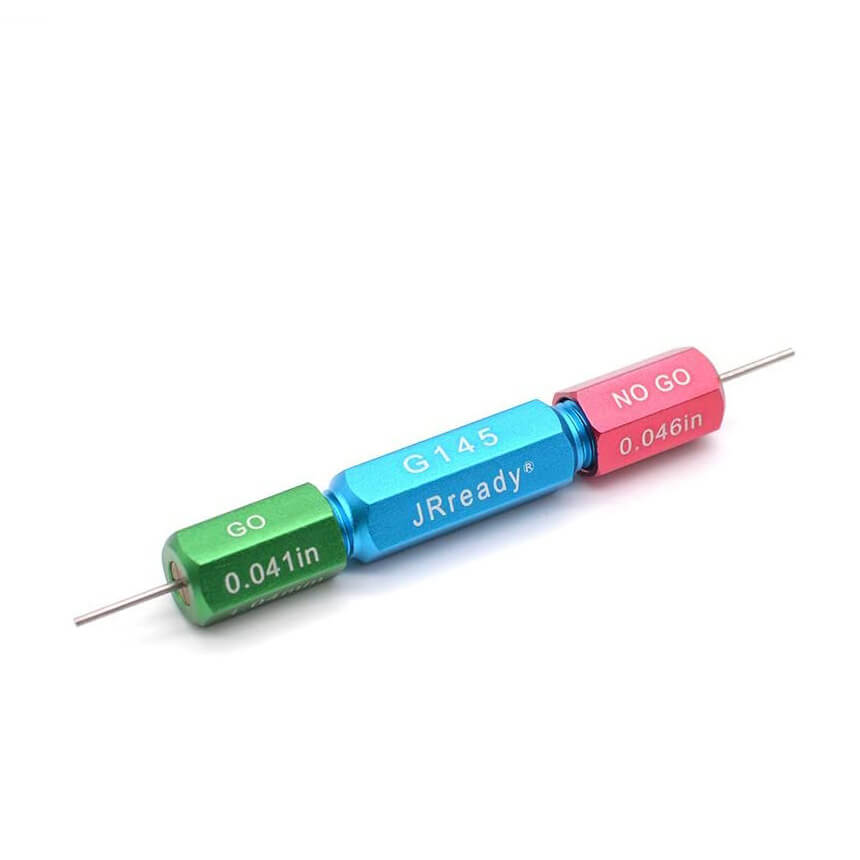

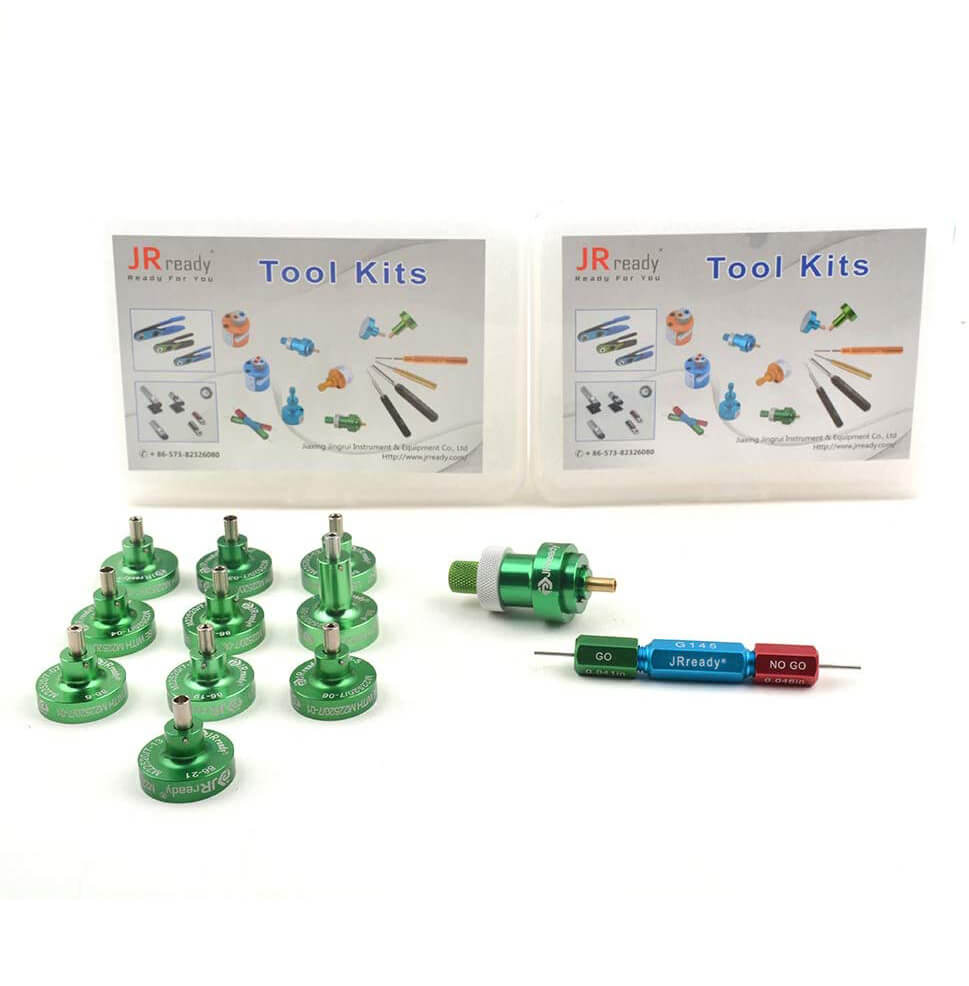

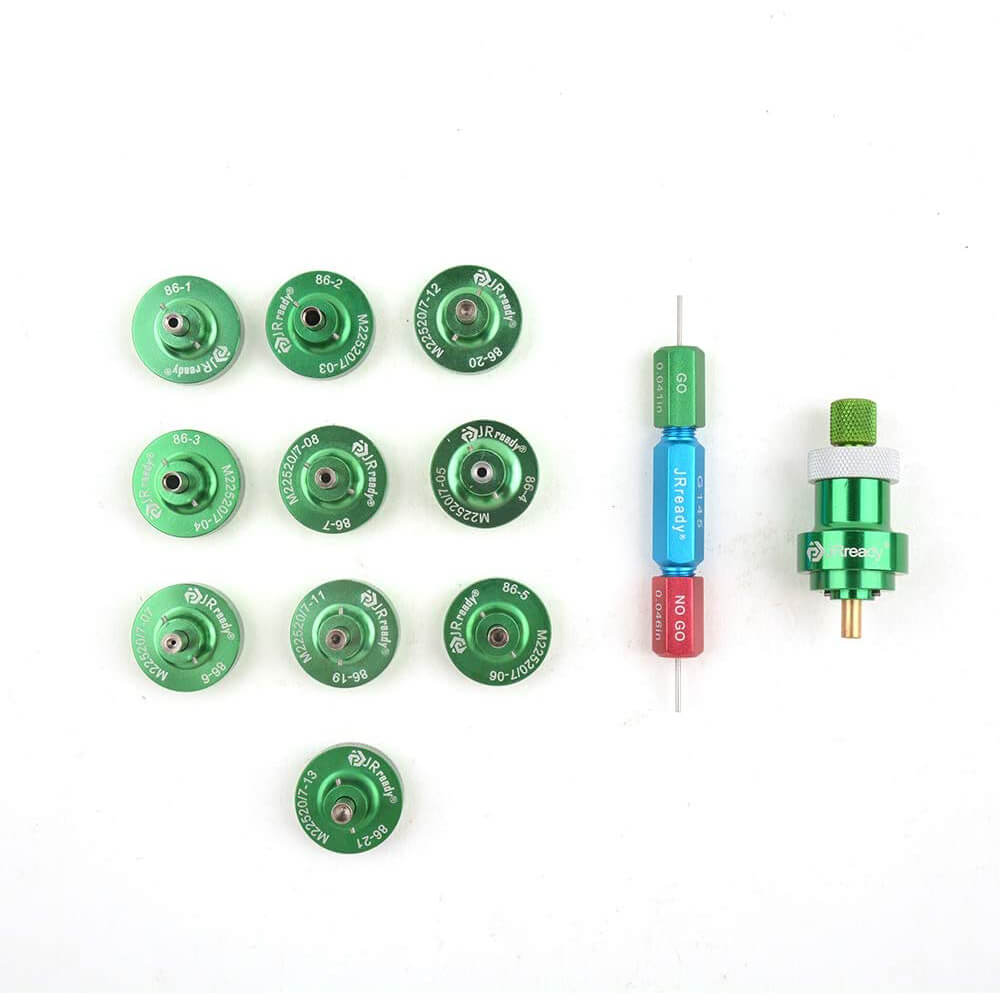

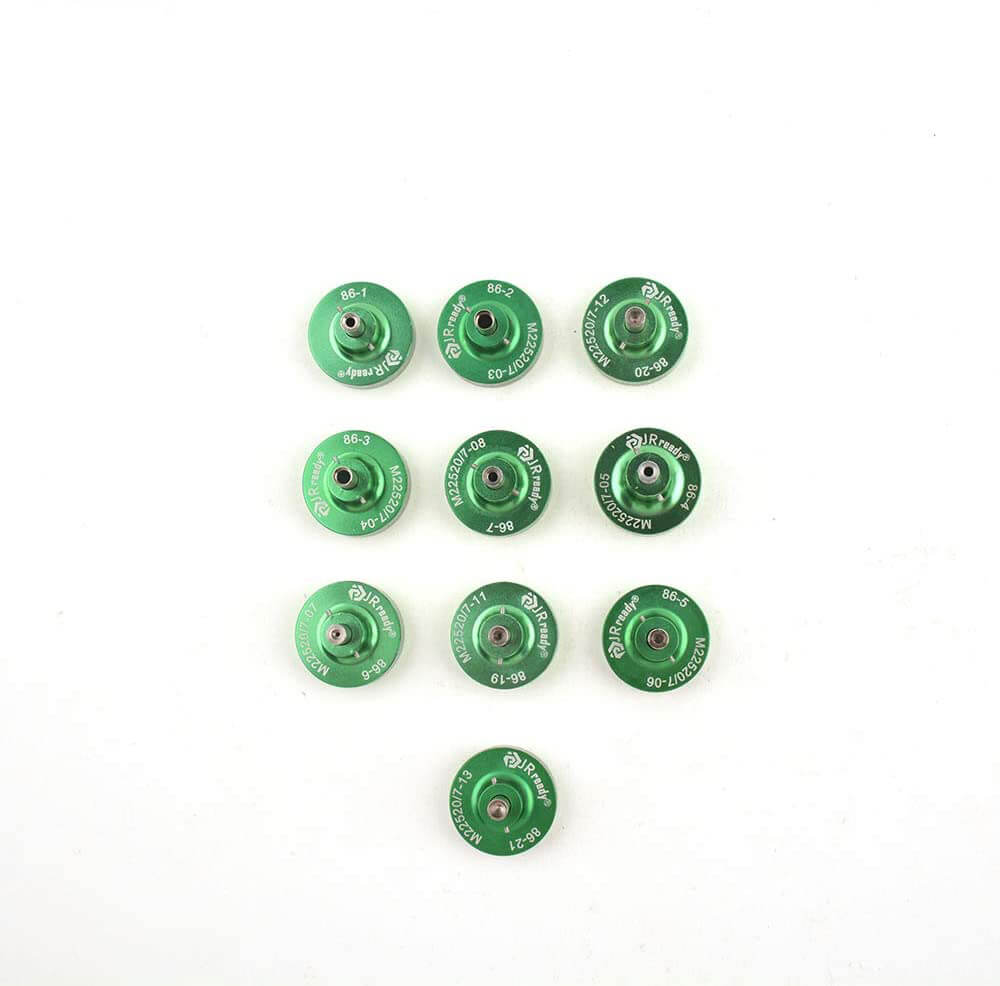

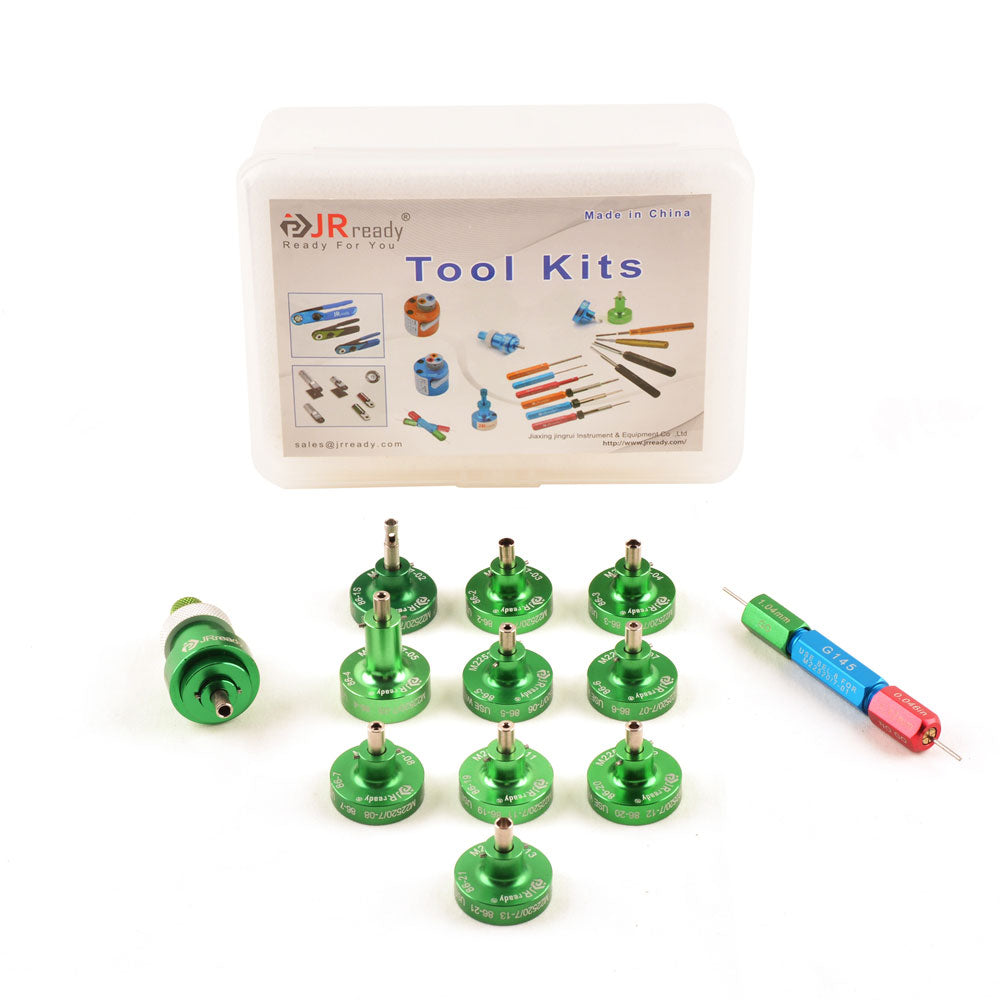

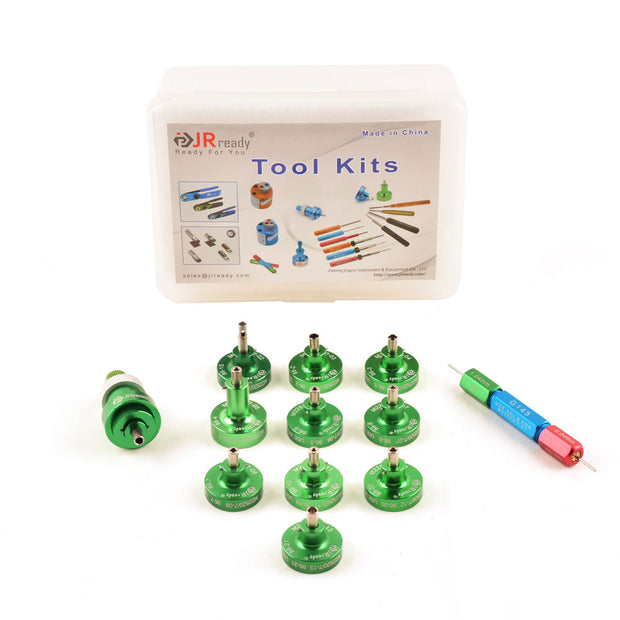

  • What you will received :86-1 86-2 86-3 86-4 86-5 86-6 86-7 86-19 86-20 86-21 86-37 Positioners and one G145 Go-NoGo gage
Installation of Positioner

1. Before installing the positioner, the tool should be open
2. Remove the safety clip from positioner guide
3. Select the correct positioner for terminal crimping
4. Insert the positioner into positioner guide, push down and then rotate 90 °, until bayonet pins lock
5. Remove the spring clip from the selector knob, adjust it to the correct selector position

Connector to be crimped

86-1/M22520/7-02:MIL-DTL-26482 Series 1&MIL-DTL-26482 Series 2&MIL-DTL-26520 CLASSR&MIL-C-38300&MIL-C-81511 SERIES 2&MIL-C-81703 SERIES 3&MIL-DTL-83723 SERIES 3&MIL-DTL-83733
86-2/M22520/7-03:MIL-DTL-26482 Series 1&MIL-DTL-26482 Series 2&MIL-DTL-26500&MIL-DTL-26518 CLASSR&MIL-C-38300&AS50151 SERIES3400&AS50151 SERIES3450&MIL-C-81511 SERIES 3&MIL-C-81511 SERIES 4&MIL-DTL-81659 SERIES 1&MIL-DTL-81659 SERIES 2&MIL-C-81703 SERIES 2&MIL-C-81703 SERIES 3
86-3/M22520/7-04:MIL-PRF-38999 Series 1&MIL-PRF-38999 Series 2&MIL-PRF-38999 Series 3&MIL-PRF-38999 Series 4
86-4/M22520/7-05:MIL-PRF-38999 Series 1&MIL-PRF-38999 Series 3&MIL-PRF-38999 Series 4
86-5/M22520/7-06:MIL-DTL-24308&MIL-PRF-38999 Series 2
86-6/M22520/7-07:MIL-DTL-24308&MIL-PRF-38999 Series 1&MIL-PRF-38999 Series 2&MIL-PRF-38999 Series 3&MIL-PRF-38999 SerieS 4
86-7/M22520/7-08:MIL-PRF-38999 Series 1&MIL-PRF-38999 Series 2&MIL-PRF-38999 Series 3&MIL-PRF-38999 Series 4
86-19/M22520/7-11:MIL-C-81511 SERIES 3&MIL-C-81511 SERIES 4&MIL-STD-1549
86-20/M22520/7-12:MIL-C-81511 SERIES 3&MIL-C-81511 SERIES 4&MIL-STD-1549
86-21/M22520/7-13:MIL-C-81511 SERIES 3&MIL-C-81511 SERIES 4&MIL-STD-1549
