JRready tools

ST5163 HT250-4 retention Tool Kit: check the retention of pins and sockets in electrical connectors by indicating

Regular price $81.90
/

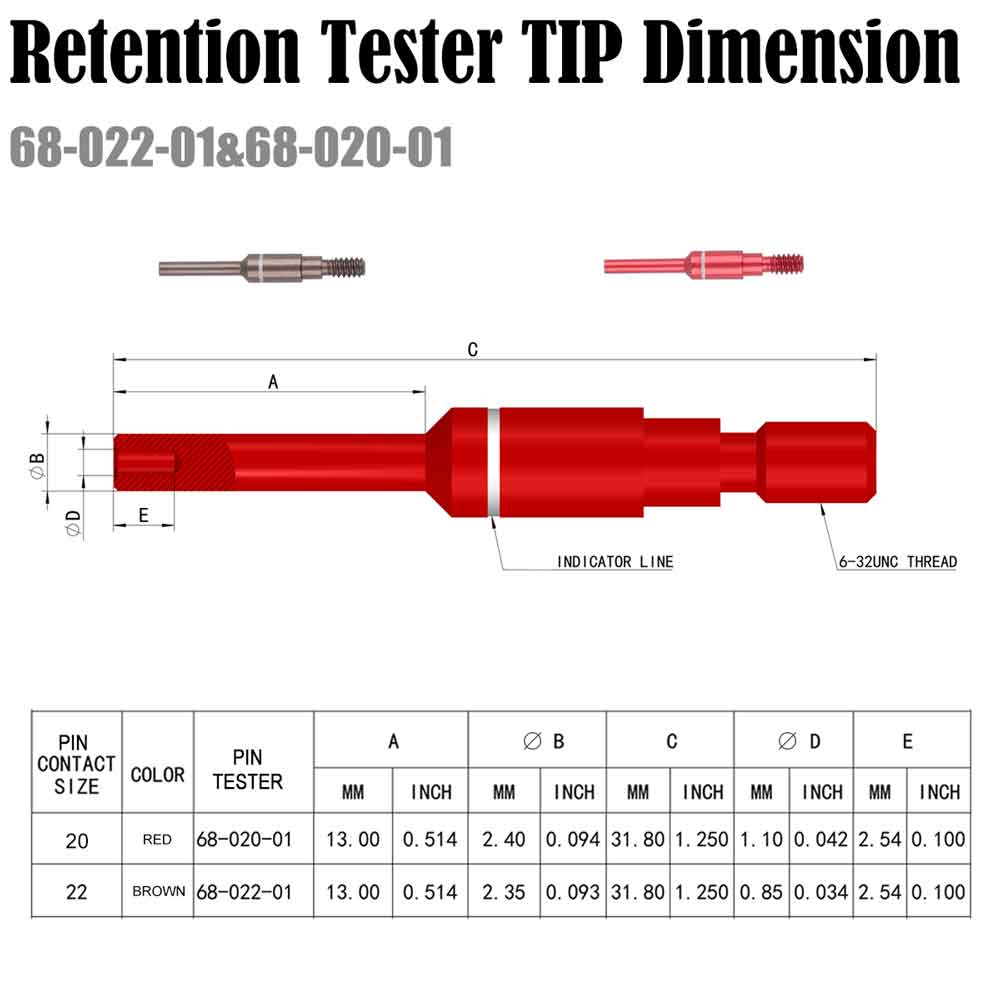

Typical application showing tool testing pin contacts.
The quality assurance test most often overlooked is contact retention (proper seating of power contacts). This important test can now be performed simply and in a matter of seconds with the JRready retention testing tools for power conatcts.

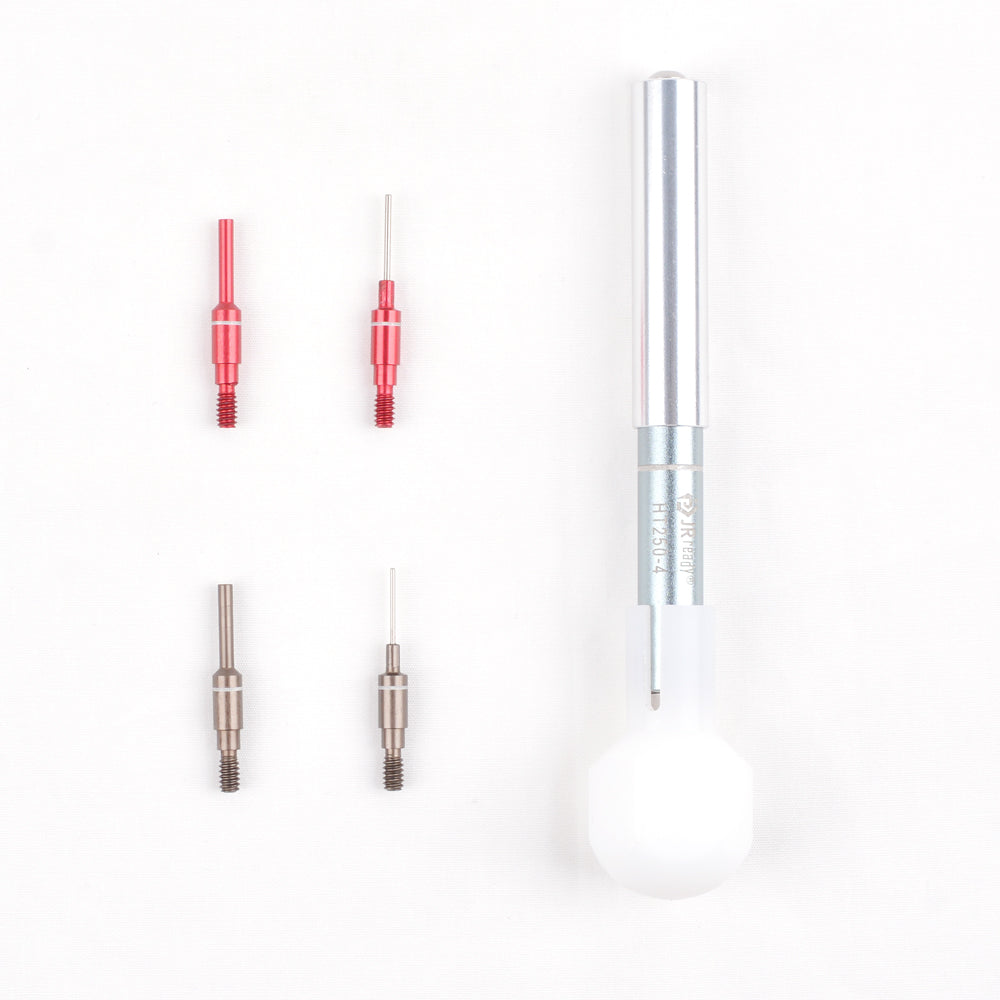

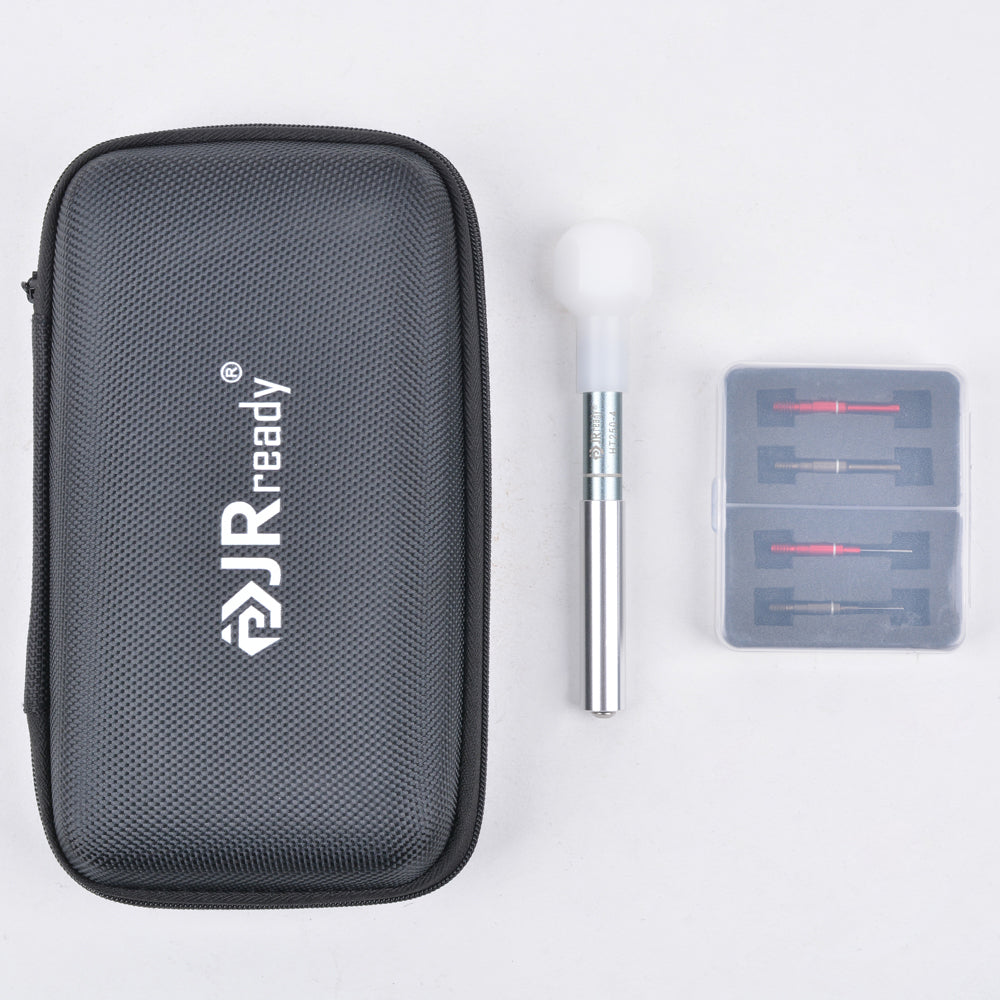

  • Package List: HT250-4+68-020-01+68-022-01+67-020-01+67-022-01

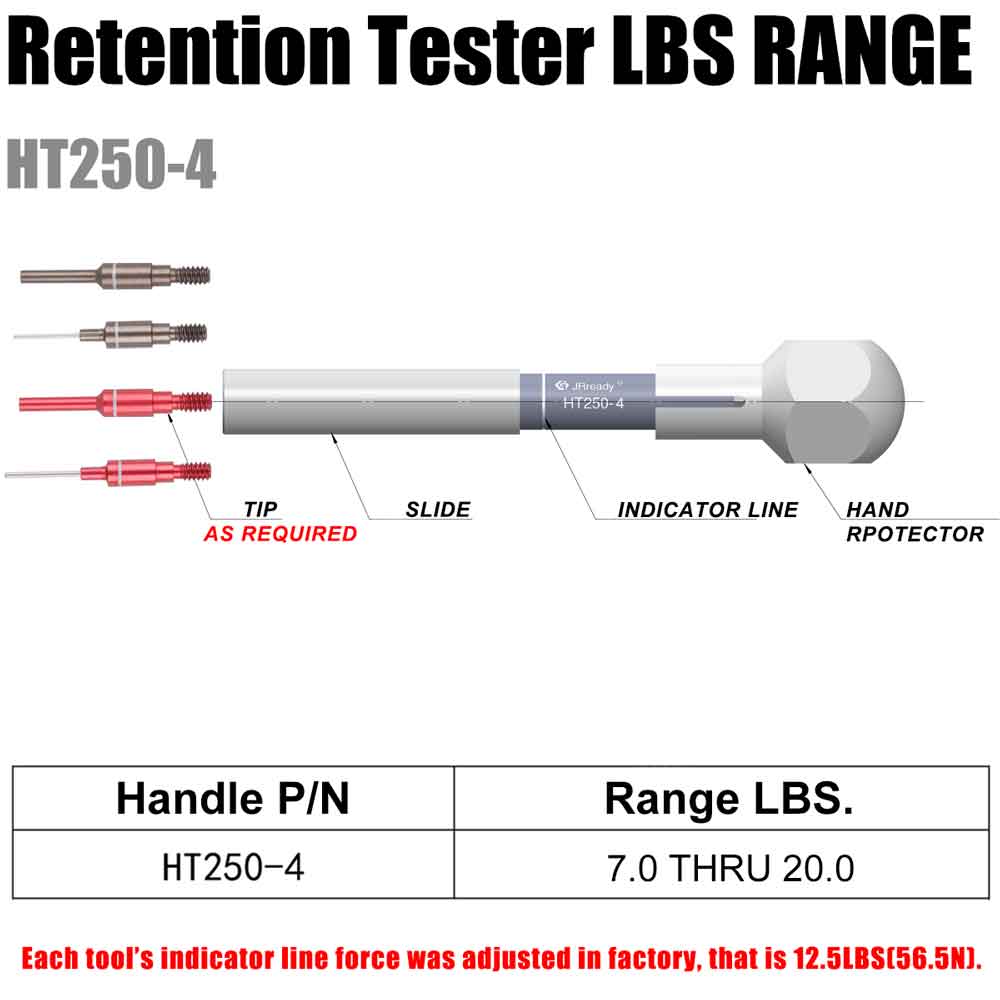

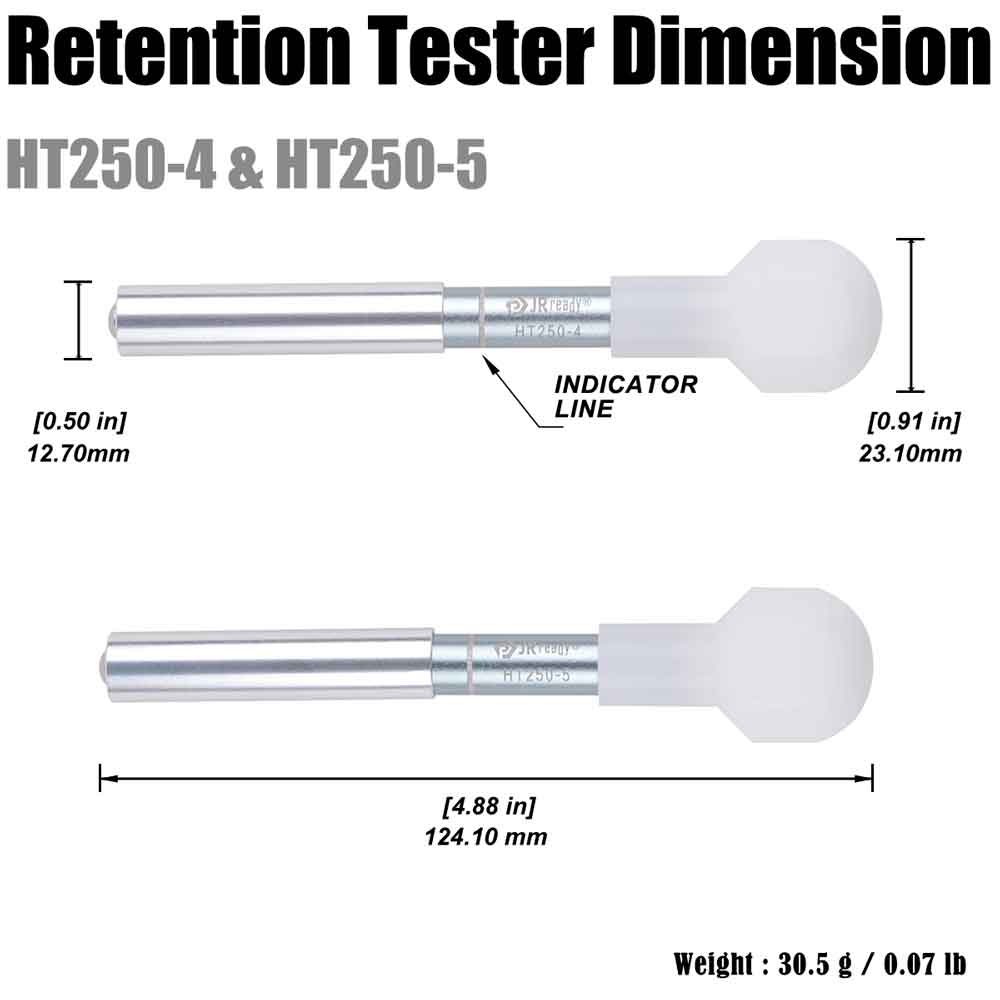

  • Range LBS.(7.0 THRU 18.0)
  • Tips are used together with retention tester to check contact's retention force
  • The indicated linear force of each tool has been adjusted at the factory, which is 12.5lbs (56.5N). The tools can be preset at the factory to your request
  • Insert tester into a contact so that the tester and contact are in a straight line. Hold in this position throughout the testing procedure.
  • NOTE: Retention test tools are to be used as a simple indicator to verify contact locking

 These tools check the retention of pins and sockets in electrical connectors by indicating when propper pressure has been applied. Each tool body is set for a different poundage range (see chart A on back of this page). The tester tips are color coded for specific sizes and designated for pins or sockets. Use pin end tipes to test sockets and socket end tips to test pins. All tips are replaceable.

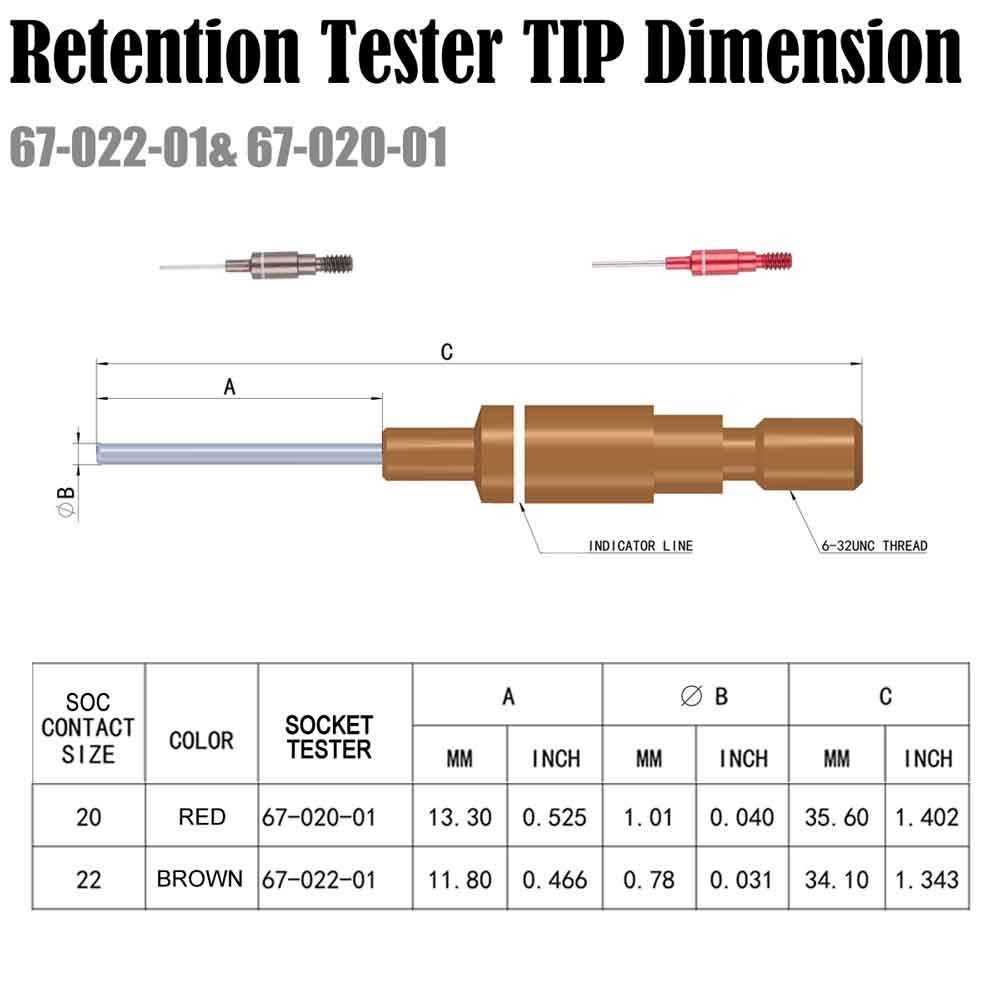

Pin Tester Tip And Socket Tester Tip
Retention Tester Military Standard Tester Tip
Model Force range Value Standard contact size  Retention Pin Tester Tip Socket Tester Tip
LBS (MIN) LBS (MAX) N(MIN) N(MAX) LBS N LBS N Model Color Model Color
HT250-4 7.00  20.00  31.50  81.00  12.50  56.25  MIL-DTL-38999 22D 10 45 68-022-01 Copper 67-022-01 Copper
20 15 67.5 68-022-01 Copper 67-022-01 Copper
MIL-DTL-24308 9 40.5
MIL-DTL-26482 20 15 67.5 68-020-01 Red 67-020-01 Red
MIL-C-81659 22 15 67.5 68-022-01 Copper 67-022-01 Copper
AS81703 20 15 67.5 68-020-01 Red 67-020-01 Red
HT250-5 17.00  32.5  76.50  112.50  21.00  94.50  AS50151 16 25 112.5 68-016-01 Blue 67-016-01 Blue
MIL-DTL-38999 16 25 112.5 68-016-01 Blue 67-016-01 Blue
12 25 112.5 68-012-01 Yellow 67-012-01 Yellow
10 25 112.5
8 25 112.5 68-008-01 Red 67-008-01 Red
MIL-DTL-26482 16 25 112.5 68-016-01 Blue 67-016-01 Blue
12 25 112.5 68-012-01 Yellow 67-012-01 Yellow
MIL-C-81659 20 20 90 68-020-01 Red 67-020-01 Red
16 25 112.5 68-016-01 Blue 67-016-01 Blue
MIL-DTL-26500 20 20 90 68-020-01 Red 67-020-01 Red
16 25 112.5 68-016-01 Blue 67-016-01 Blue
AS81703 16 25 112.5 68-016-01 Blue 67-016-01 Blue
12 25 112.5 68-012-01 Yellow 67-012-01 Yellow
MIL-DTL-83723 20 20 90 68-020-01 Red 67-020-01 Red
16 25 112.5 68-016-01 Blue 67-016-01 Blue
