AF8 Crimp Turret Head and Positioner For M38999 Series MIL Connector Pin/Socket

$59.00

TYPE

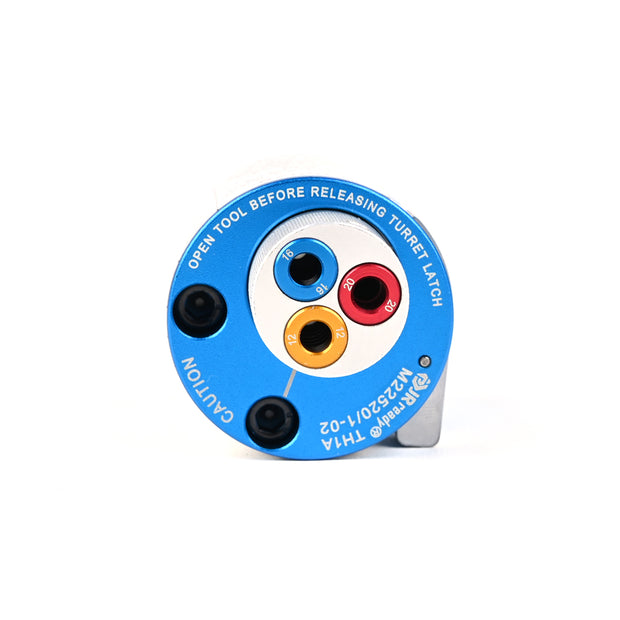

TH1A(M22520/1-02)

TH163(M22520/1-04)

UH2-5(M22520/1-05)

TH554

TH592

Quantity

[{"id":31112502345801,"title":"TH1A(M22520\/1-02)","option1":"TH1A(M22520\/1-02)","option2":null,"option3":null,"sku":"TH1AS28A","requires_shipping":true,"taxable":false,"featured_image":{"id":13436478685257,"product_id":4342802088009,"position":2,"created_at":"2019-12-04T14:11:57+08:00","updated_at":"2020-01-14T16:21:13+08:00","alt":"TH1A turret head M22520\/1-02","width":1000,"height":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/5534\/9577\/products\/1_490ef270-2ce9-41d6-aed2-e4f87b72c885.jpg?v=1578990073","variant_ids":[31112502345801]},"available":true,"name":"AF8 Crimp Turret Head and Positioner For M38999 Series MIL Connector Pin\/Socket - TH1A(M22520\/1-02)","public_title":"TH1A(M22520\/1-02)","options":["TH1A(M22520\/1-02)"],"price":5900,"weight":110,"compare_at_price":null,"inventory_management":"shopify","barcode":"7618423885512","featured_media":{"alt":"TH1A turret head M22520\/1-02","id":5609418391625,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/5534\/9577\/products\/1_490ef270-2ce9-41d6-aed2-e4f87b72c885.jpg?v=1575439917"}}},{"id":31140982718537,"title":"TH163(M22520\/1-04)","option1":"TH163(M22520\/1-04)","option2":null,"option3":null,"sku":"TH163S28A","requires_shipping":true,"taxable":true,"featured_image":{"id":13436479209545,"product_id":4342802088009,"position":4,"created_at":"2019-12-04T14:12:08+08:00","updated_at":"2020-01-14T16:21:51+08:00","alt":"TH163 turret head m22520\/1-04","width":1000,"height":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/5534\/9577\/products\/1_3635f8b2-8d17-425f-a5fa-306ec0527df3.jpg?v=1578990111","variant_ids":[31140982718537]},"available":true,"name":"AF8 Crimp Turret Head and Positioner For M38999 Series MIL Connector Pin\/Socket - TH163(M22520\/1-04)","public_title":"TH163(M22520\/1-04)","options":["TH163(M22520\/1-04)"],"price":7600,"weight":110,"compare_at_price":null,"inventory_management":"shopify","barcode":"7771070070134","featured_media":{"alt":"TH163 turret head m22520\/1-04","id":5609418915913,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/5534\/9577\/products\/1_3635f8b2-8d17-425f-a5fa-306ec0527df3.jpg?v=1575439928"}}},{"id":31141014667337,"title":"UH2-5(M22520\/1-05)","option1":"UH2-5(M22520\/1-05)","option2":null,"option3":null,"sku":"UH25S28A","requires_shipping":true,"taxable":true,"featured_image":{"id":13436447522889,"product_id":4342802088009,"position":9,"created_at":"2019-12-04T14:00:51+08:00","updated_at":"2020-01-14T16:23:52+08:00","alt":"m22520\/1-05 positioner","width":1000,"height":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/5534\/9577\/products\/1_f556d741-b0dd-4cf5-84d4-4c4a8033fa19.jpg?v=1578990232","variant_ids":[31141014667337]},"available":true,"name":"AF8 Crimp Turret Head and Positioner For M38999 Series MIL Connector Pin\/Socket - UH2-5(M22520\/1-05)","public_title":"UH2-5(M22520\/1-05)","options":["UH2-5(M22520\/1-05)"],"price":3000,"weight":110,"compare_at_price":null,"inventory_management":"shopify","barcode":"7771070070158","featured_media":{"alt":"m22520\/1-05 positioner","id":5609387229257,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/5534\/9577\/products\/1_f556d741-b0dd-4cf5-84d4-4c4a8033fa19.jpg?v=1575439251"}}},{"id":31140999135305,"title":"TH554","option1":"TH554","option2":null,"option3":null,"sku":"TH554S28A","requires_shipping":true,"taxable":true,"featured_image":{"id":13436488220745,"product_id":4342802088009,"position":6,"created_at":"2019-12-04T14:14:34+08:00","updated_at":"2020-01-14T16:22:30+08:00","alt":"TH554 turret head ","width":1000,"height":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/5534\/9577\/products\/1_9d01c130-2ced-4af5-98ca-3a58eded1263.jpg?v=1578990150","variant_ids":[31140999135305]},"available":true,"name":"AF8 Crimp Turret Head and Positioner For M38999 Series MIL Connector Pin\/Socket - TH554","public_title":"TH554","options":["TH554"],"price":7600,"weight":110,"compare_at_price":null,"inventory_management":"shopify","barcode":"7771070070141","featured_media":{"alt":"TH554 turret head ","id":5609427927113,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/5534\/9577\/products\/1_9d01c130-2ced-4af5-98ca-3a58eded1263.jpg?v=1575440074"}}},{"id":31141003788361,"title":"TH592","option1":"TH592","option2":null,"option3":null,"sku":"TH592S28A","requires_shipping":true,"taxable":true,"featured_image":{"id":13436482781257,"product_id":4342802088009,"position":8,"created_at":"2019-12-04T14:13:10+08:00","updated_at":"2020-01-14T16:23:31+08:00","alt":"turret head for FT8 crimper","width":1000,"height":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/5534\/9577\/products\/1_3ae7362a-5370-4b4f-828c-0ba5c00304af.jpg?v=1578990211","variant_ids":[31141003788361]},"available":true,"name":"AF8 Crimp Turret Head and Positioner For M38999 Series MIL Connector Pin\/Socket - TH592","public_title":"TH592","options":["TH592"],"price":7600,"weight":110,"compare_at_price":null,"inventory_management":"shopify","barcode":"7618423885383","featured_media":{"alt":"turret head for FT8 crimper","id":5609422487625,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"https:\/\/cdn.shopify.com\/s\/files\/1\/0079\/5534\/9577\/products\/1_3ae7362a-5370-4b4f-828c-0ba5c00304af.jpg?v=1575439990"}}}]

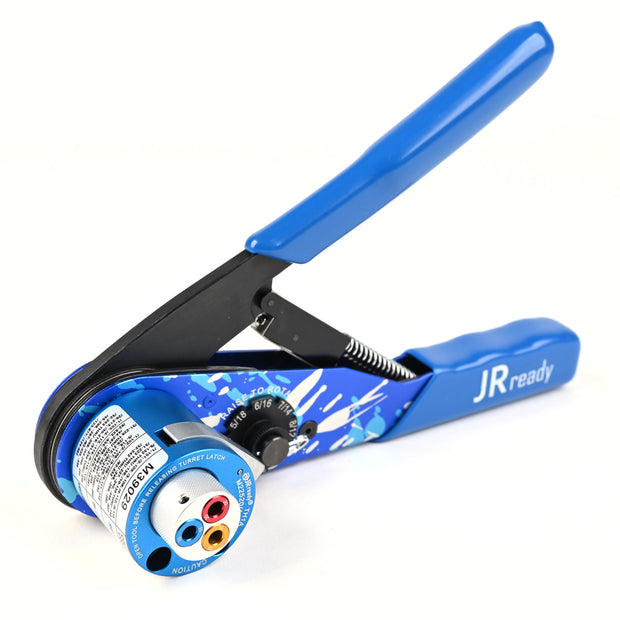

TH1A ,TH163,TH554,TH592 Turret Head Positioner And UH2-5 Universal/General Postioner Head For JRD-FT8 Cable Crimping Tool

TH1A(M22520/1-02)+TH163(M22520/1-04)And UH2-5(M22520/1-05) Postioner/ITT CANNON Combo D Series/AB Series Head For FT8 Cable Crimping Tool

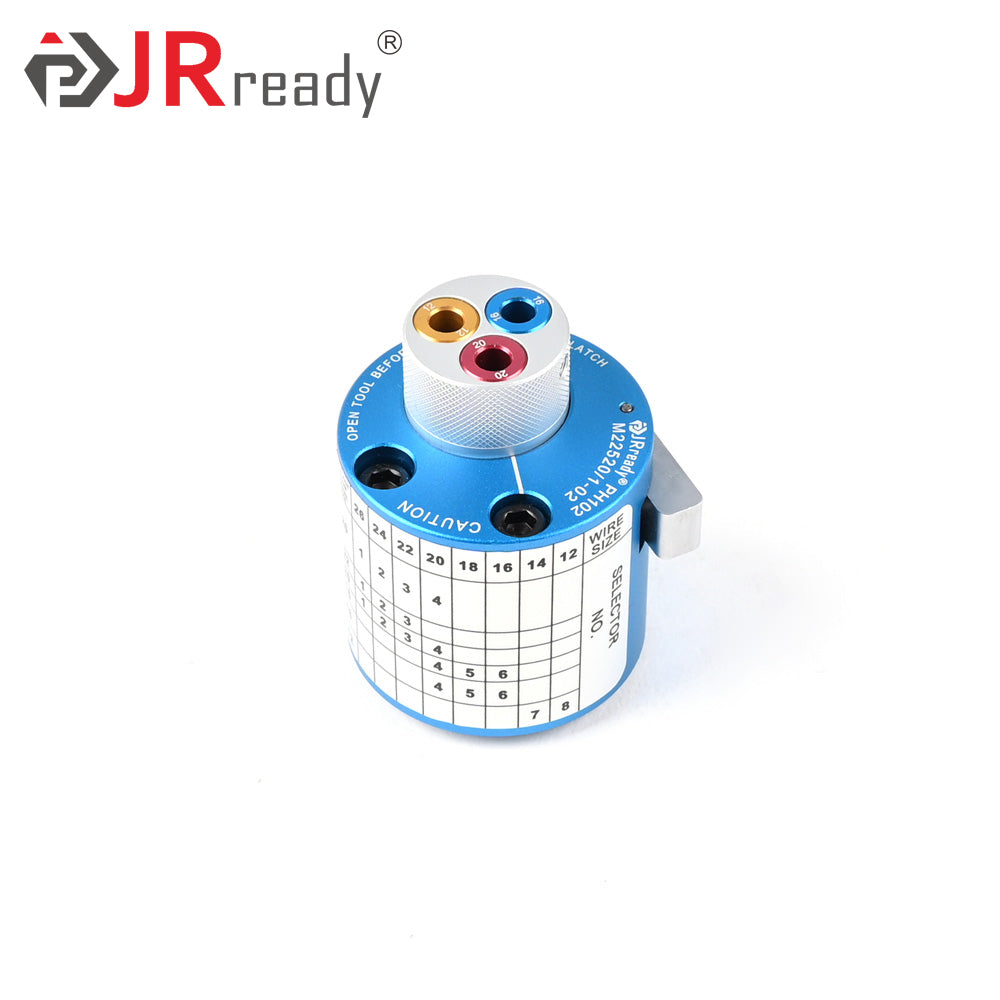

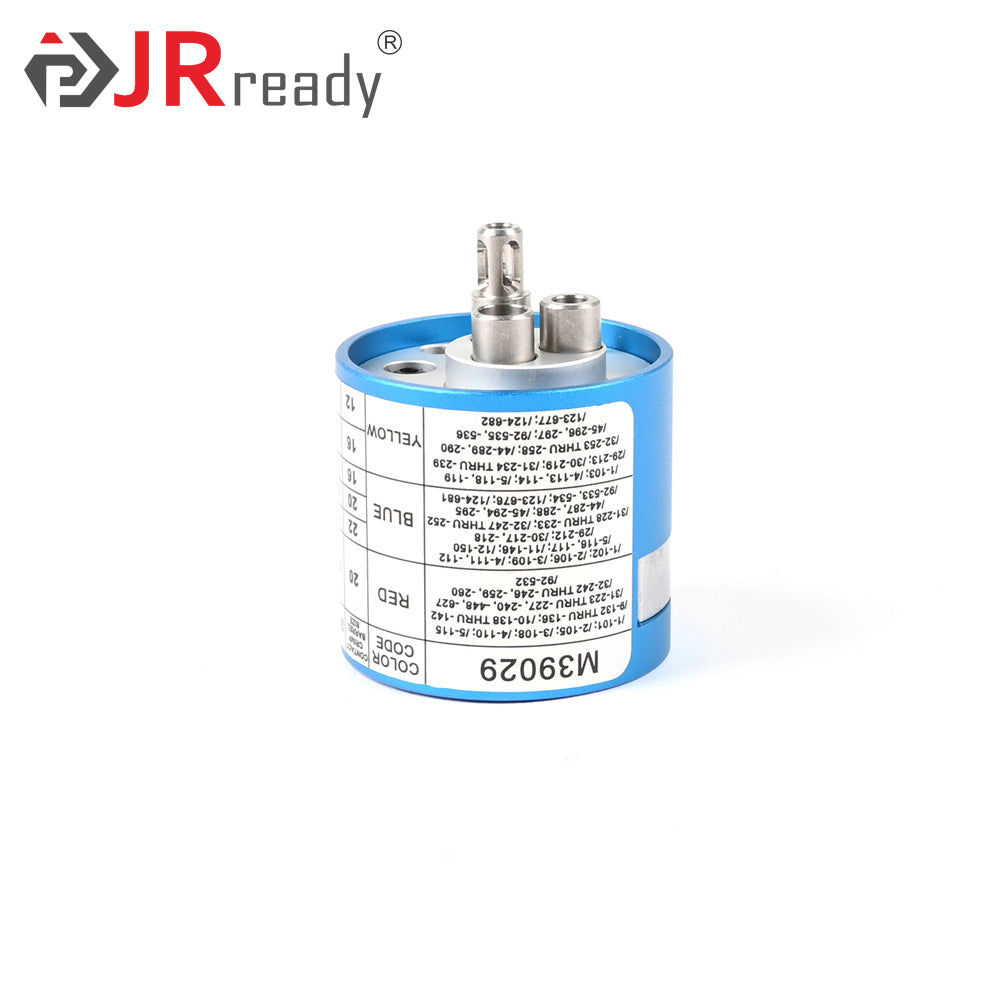

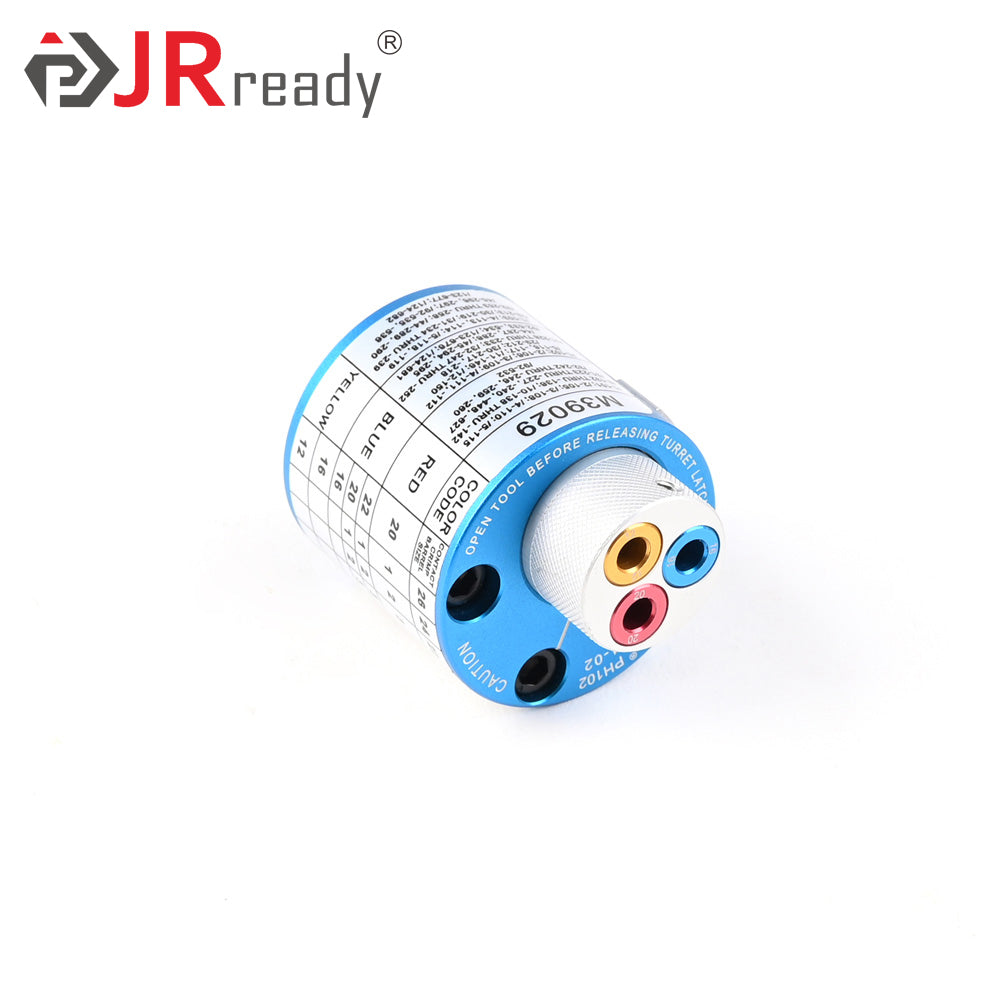

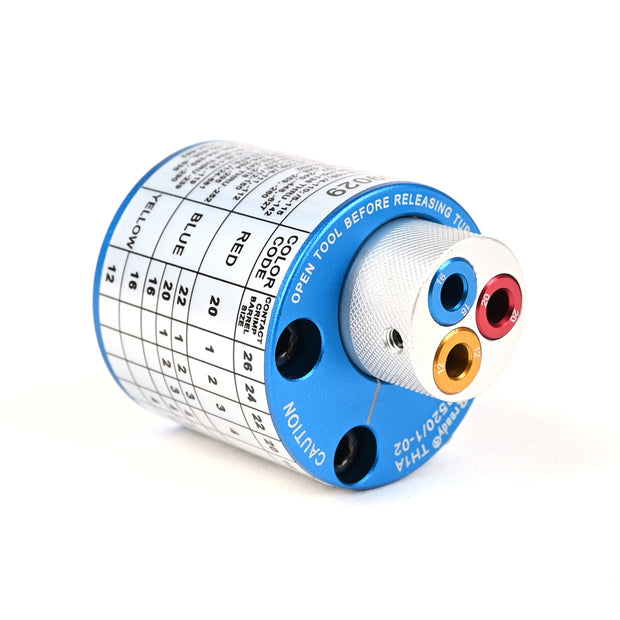

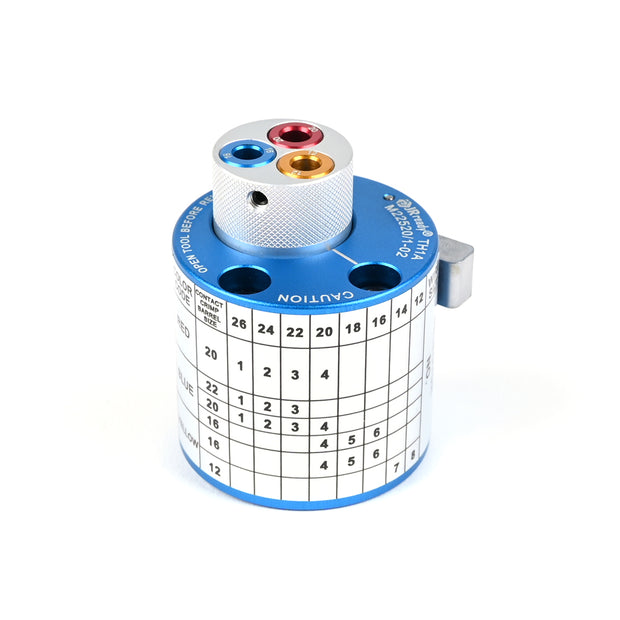

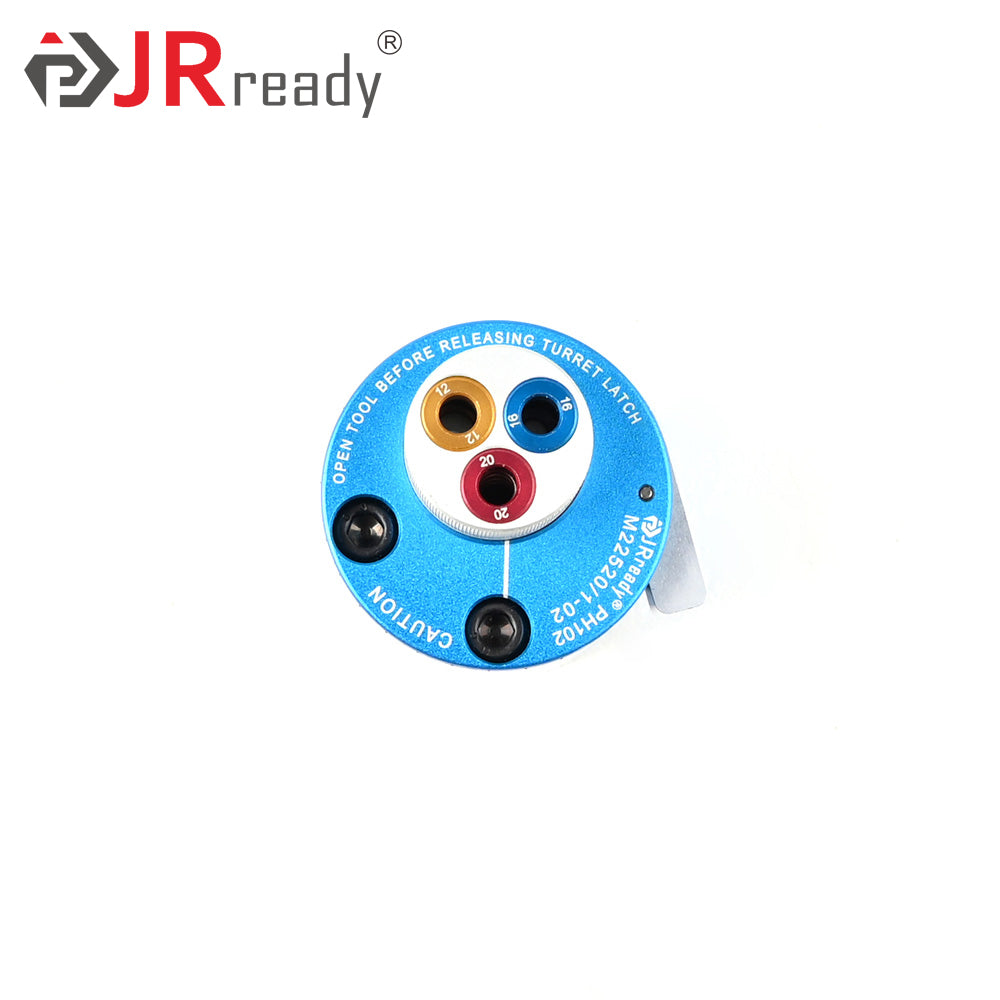

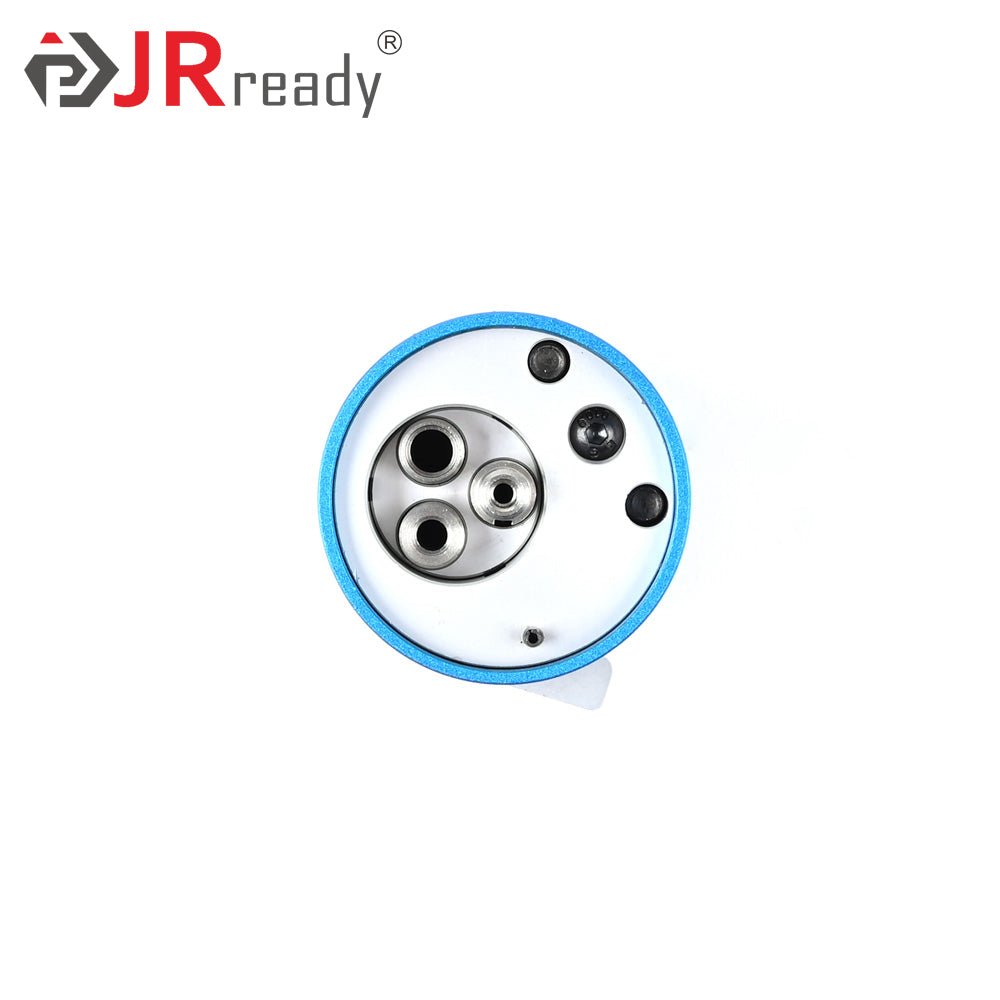

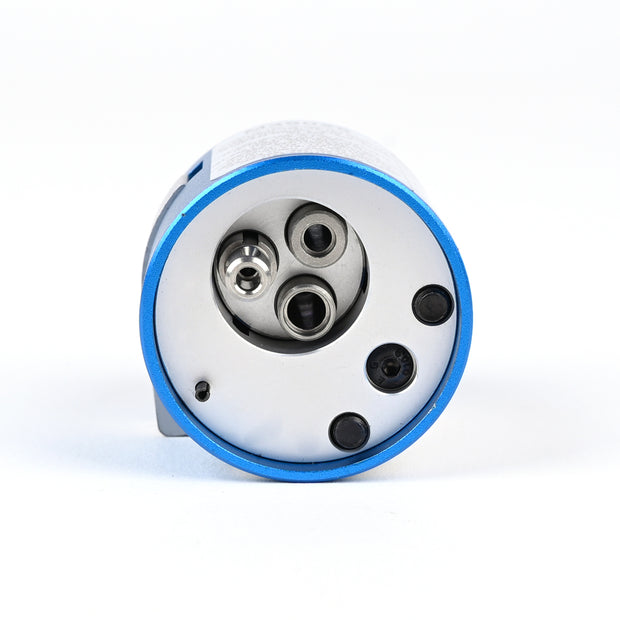

TH Series Turret Positioner

Turret positioner contains three different specifications of the positioning core.There is no need to change the positioning device for crimping different standard contacts, just rotate the positioning core.
Each core is corresponding to the different positioning turret colors , rotate to the right color according to the different terminal specifications.

UH2-5 Universal/General Postioner

UH2-5 positioner designed according to MIL-C-22520/1-05. It is used to locate contacts horizontally and vertically between the indenters of the tools to ensure the accuracy and consistency of the crimp position. The height adjusting screw can be rotated until the contact is in the proper position for crimping. After the position is adjusted, lock the lock nut. Then insert the contact to complete the crimping.

Number	Model	MIL standard	Compatible contacts model

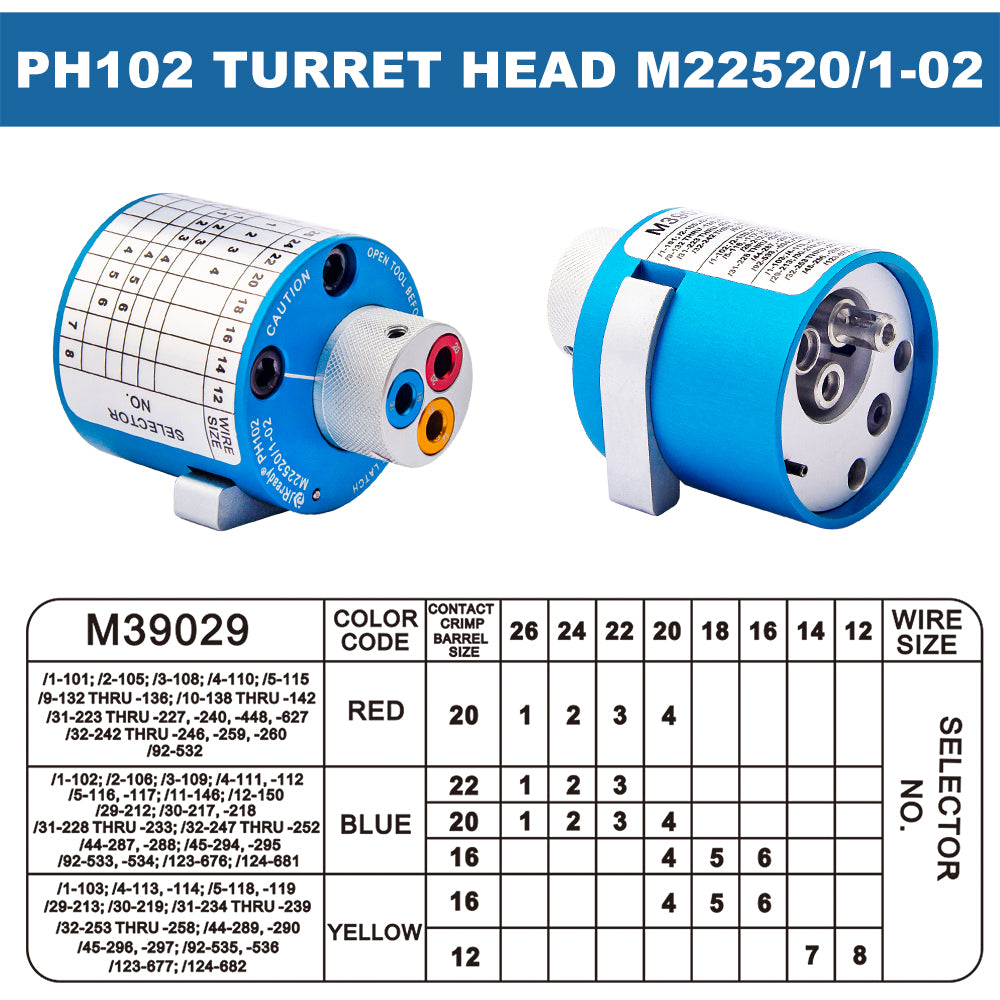

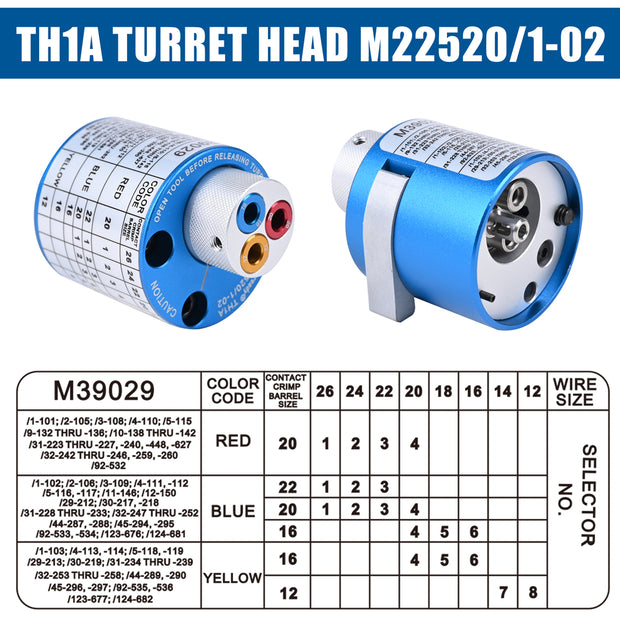

1	TH1A	M22520/1-02	MS3162&63 MS3192&93 MS18134&36 MS24254&55 MS90453&54
2	TH163	M22520/1-04	MS27655 MS27490&91&92&93&94
3	TH554	/	ITT CANNON Combo D Series Connectors Contacts
4	TH592	/	AB CONNECTORS CONTACTS
5	UH2-5	M22520/1-05	Universal in the crimp range

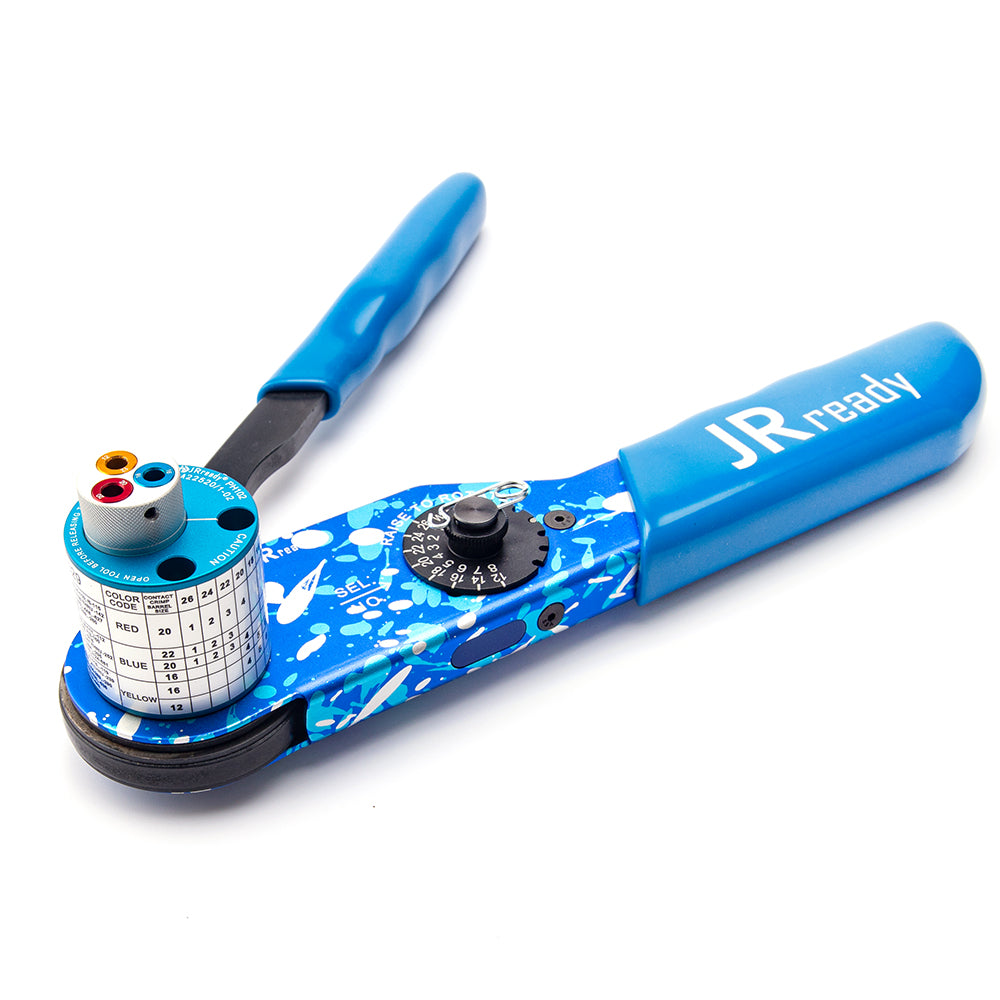

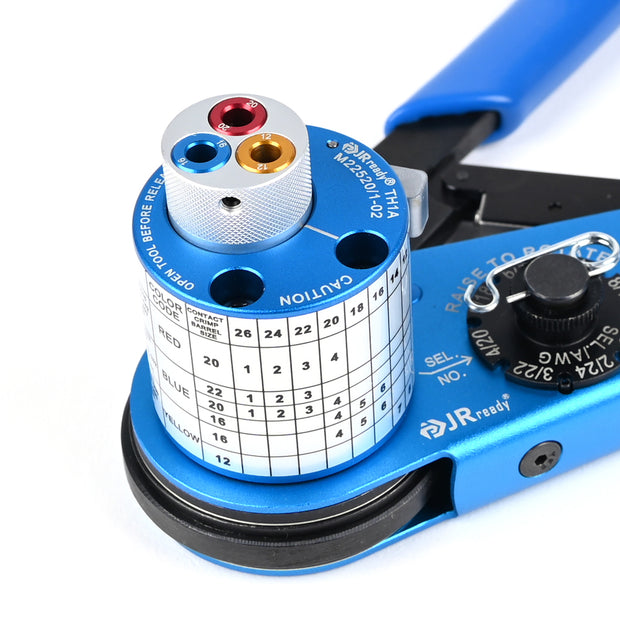

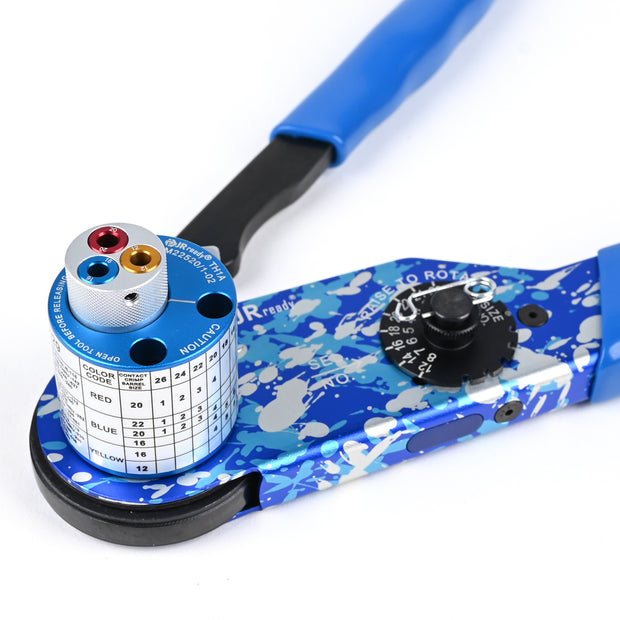

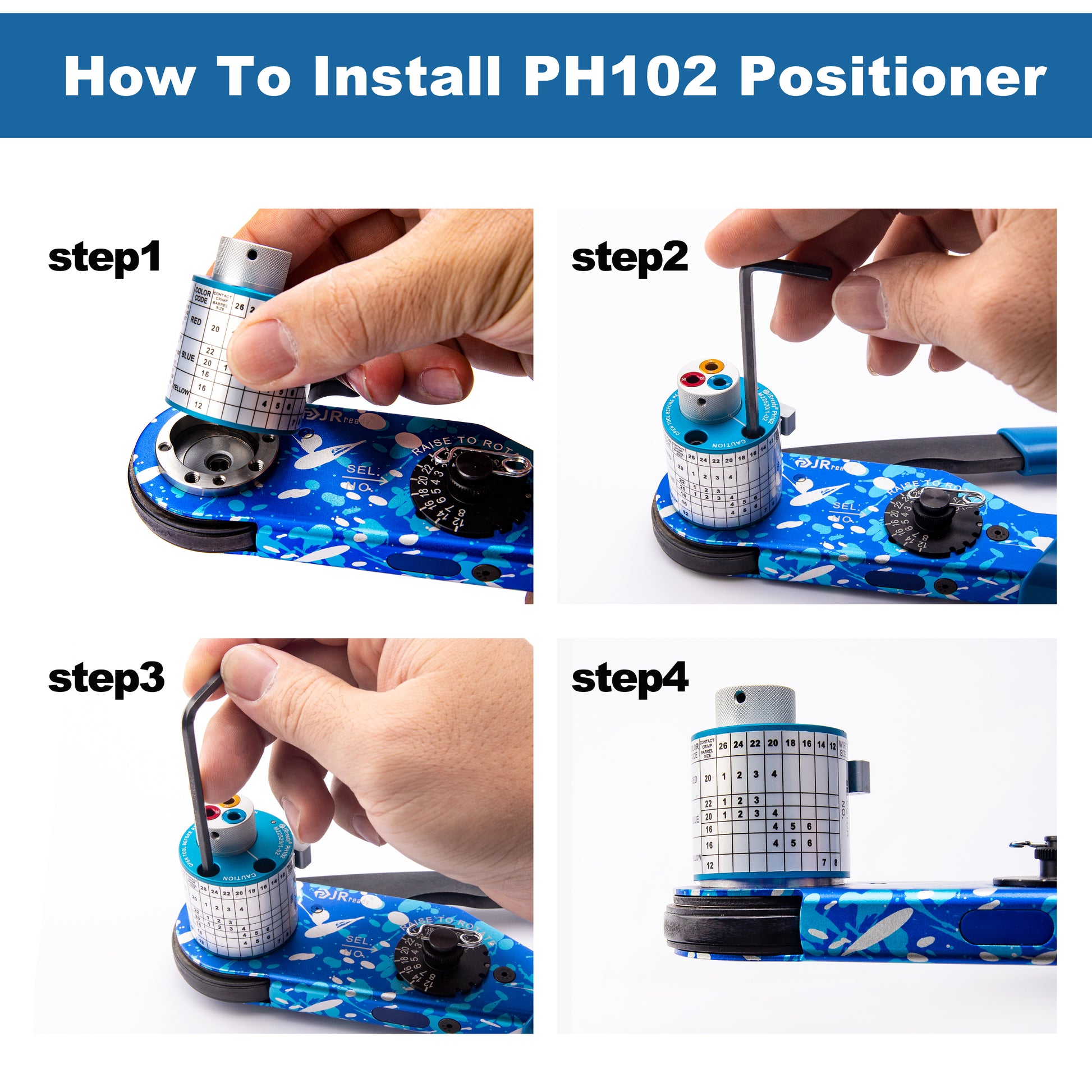

Turret positioner installing

1.Keep the crimp tool in open position,press turret trigger latch which releases turret to indexing position.
2.Place selected turret head assembly onto retainer ring with socket head screws lined up with tapped holes.
3.After turret head is seated against retainer ring, tighten socket head screws.
4.Turret head & positioner installation is completed.
