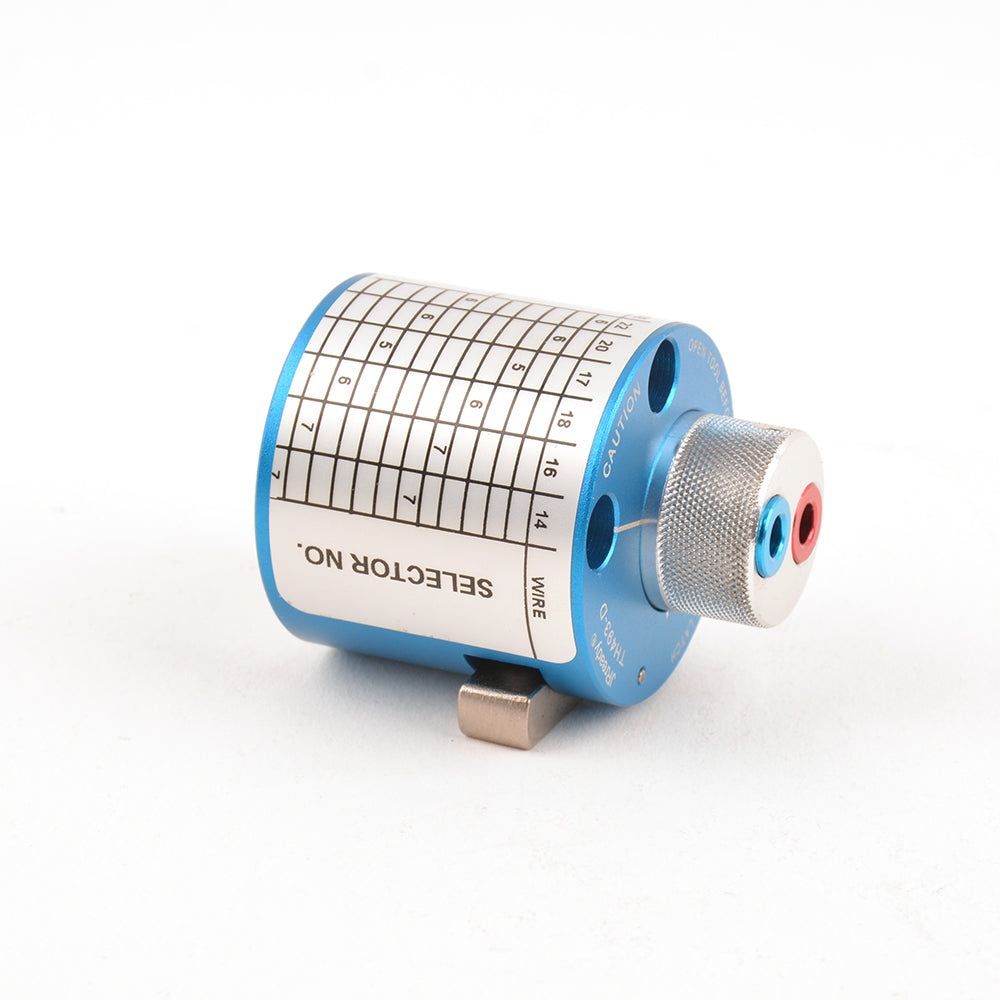

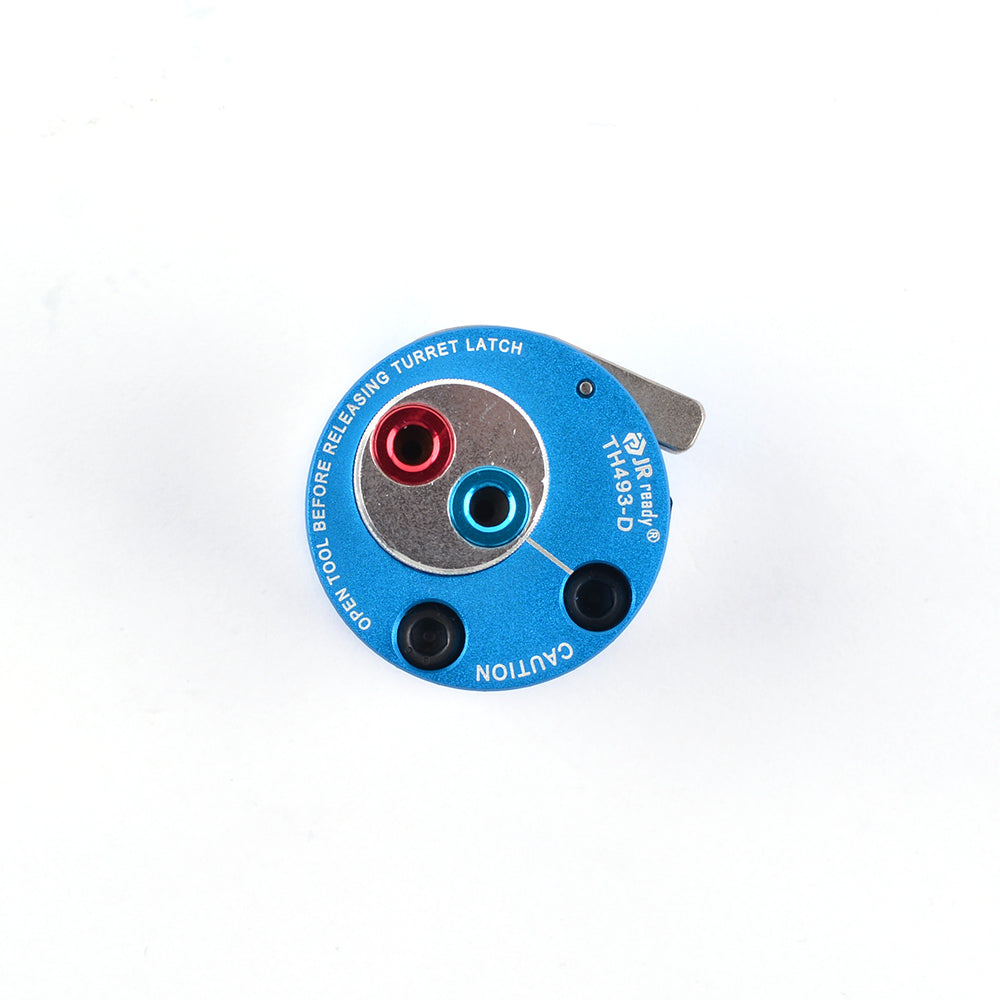

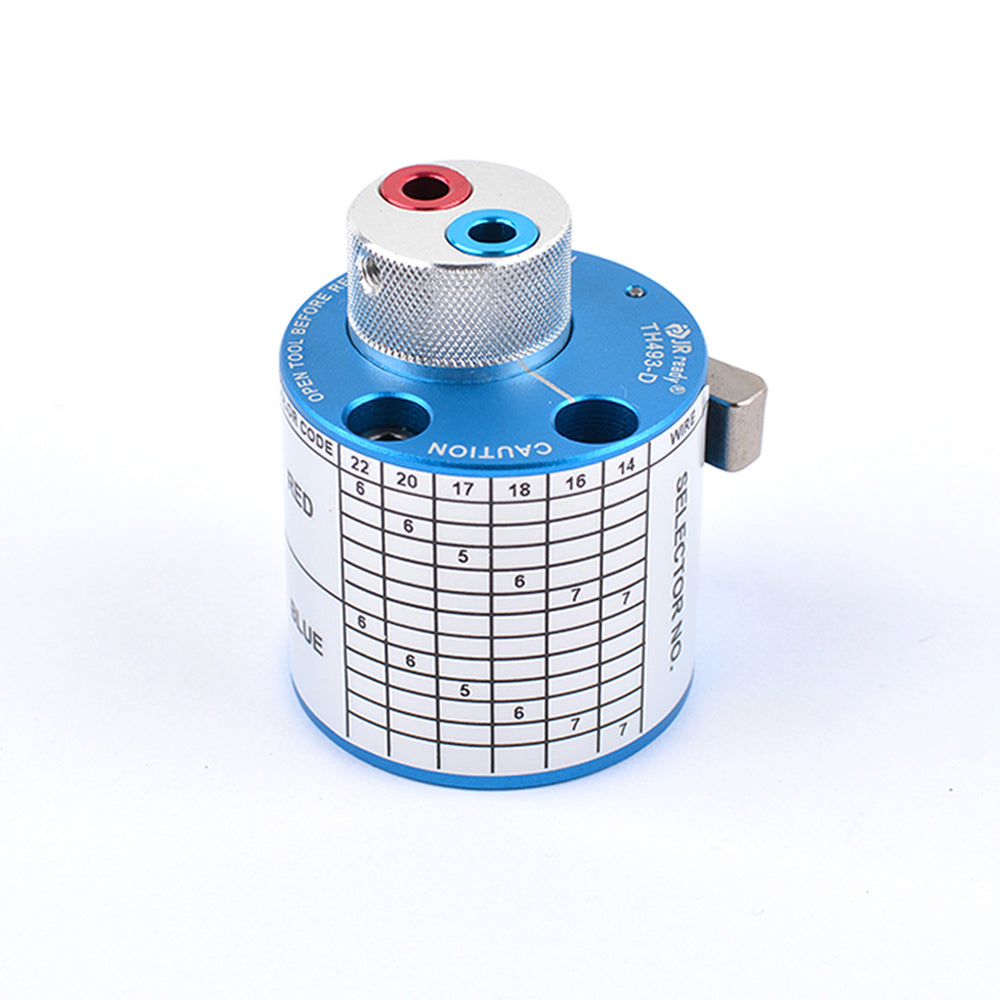

TH493-D turret head
 Positioner for HARTING connector round contact
Adjustable Turret Positioner
locator
TH493-D
TH493-D turret head
 Positioner for HARTING connector round contact
Adjustable Turret Positioner
locator
JRready tools

TH493-D Crimper Turret Positioner for Round Soild Contacts

Regular price $76.00
/

Feature
  • There is no need to change the positioning device for crimping different standard contacts, just rotate the positioning core.
  • Adjustable for a wide range of wire and connector sizes.
  • Gives a standardized and accurate crimp every time.
  • Suitable for 10A Sockets & Pins in Han D series connectors.
  • Used with Crimp contact tool: YJQ-W2A,JRD-FT8,JRD-AF8.

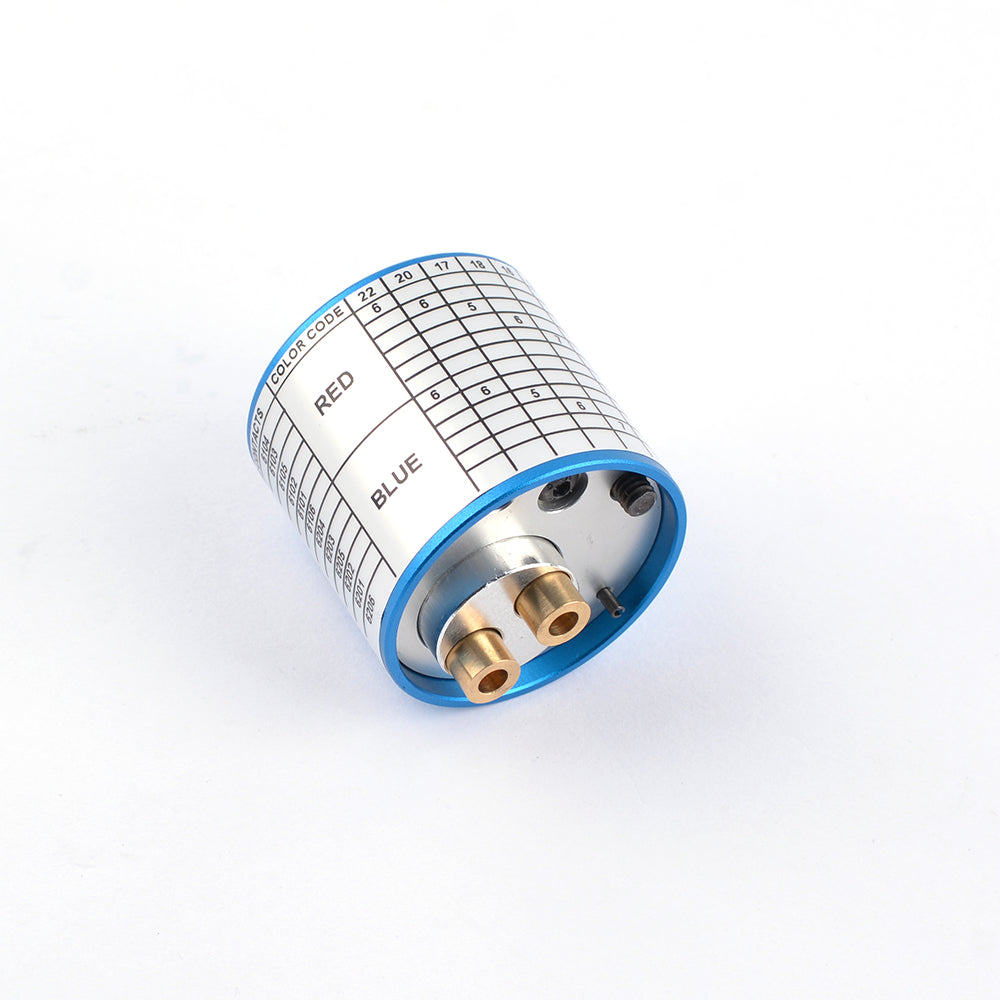

TH493-D turret positioner contains two different specifications of the positioning cores.

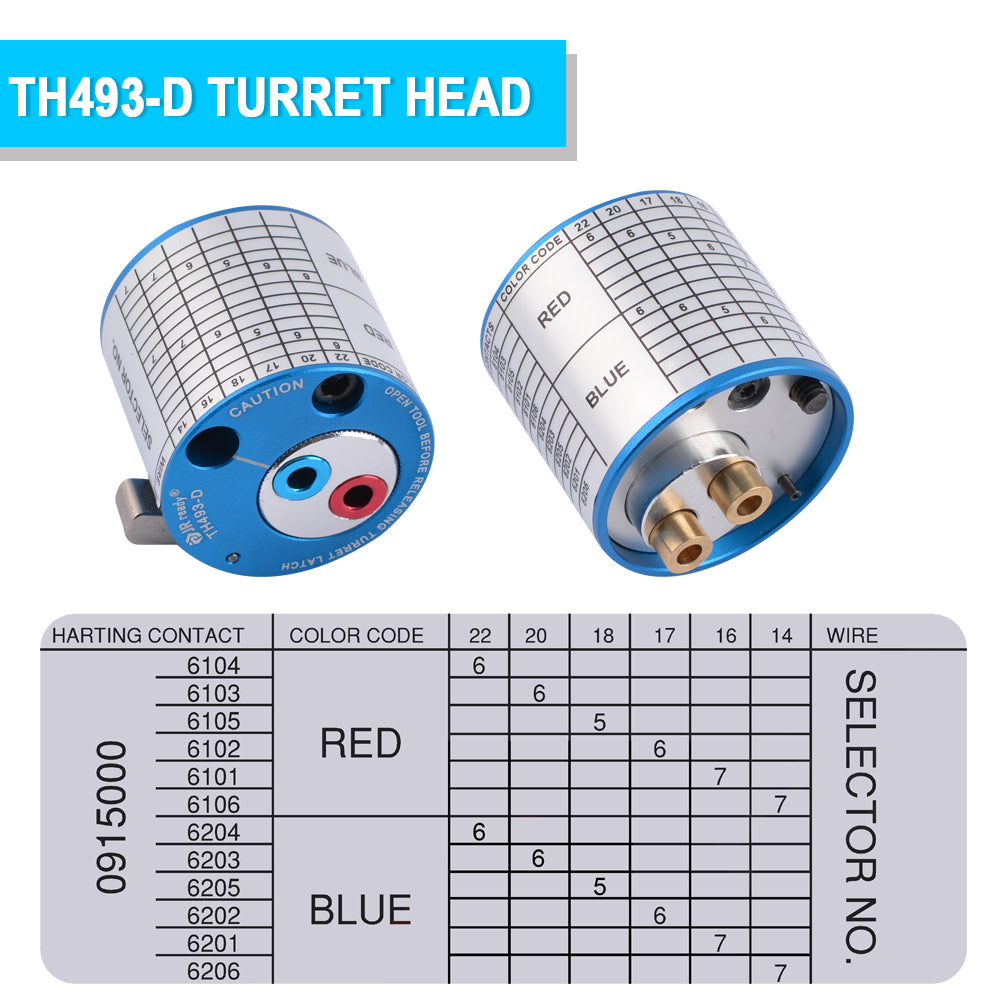

Each core is corresponding to the different positioning core turret colors (red, blue), rotate to the right color according to the different terminal specifications.

Application

Name Contact drawing Harting connector model Harting contact model Wain connector model Wain contact model
10A contact

Han D Series(09210073031 09210153001 09210253001)
 HAN Q Series(09120053001 09120073001 09120123001)
 HAN DD Series(09160243001 09160423001 09160723001)
09150006104 HD HDD HM HK HQ insert CDSM -0.37
09150006103 CDSM -0.5
09150006105 CDSM -0.75
09150006102 CDSM -1.0
09150006101 CDSM -1.5
09150006106 CDSM -2.5
09150006204 CDSF-0.37
09150006203 CDSF-0.5
09150006205 CDSF-0.75
09150006202 CDSF-1.0
09150006201 CDSF-1.5
09150006206 CDSF-2.5
09150006124 CDGM -0.37
09150006123 CDGM -0.5
09150006125 CDGM -0.75
09150006122 CDGM -1.0
09150006121 CDGM -1.5
09150006126 CDGM -2.5
09150006224 CDGF-0.37
09150006223 CDGF-0.5
09150006225 CDGF-0.75
09150006222 CDGF-1.0
09150006221 CDGF-1.5
09150006226 CDGF-2.5
