TH531-E Crimper Turret Head Adjustable Turret Positioner for Round Soild Contacts

Regular price $76.00
/

Feature
  • There is no need to change the positioning device for crimping different standard contacts, just rotate the positioning core.
  • Adjustable for a wide range of wire and connector sizes.
  • Gives a standardized and accurate crimp every time.
  • Suitable for 16A Sockets & Pins in Han E series connectors.
  • Used with Crimp contact tool: YJQ-W2A,JRD-FT8,JRD-AF8.

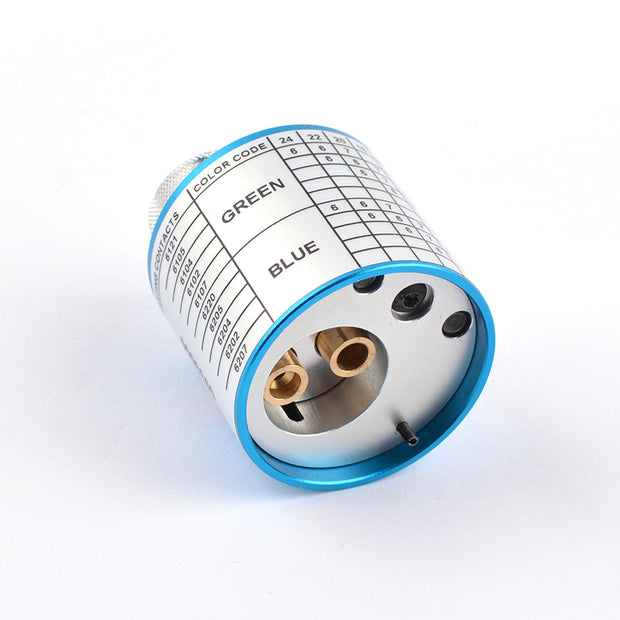

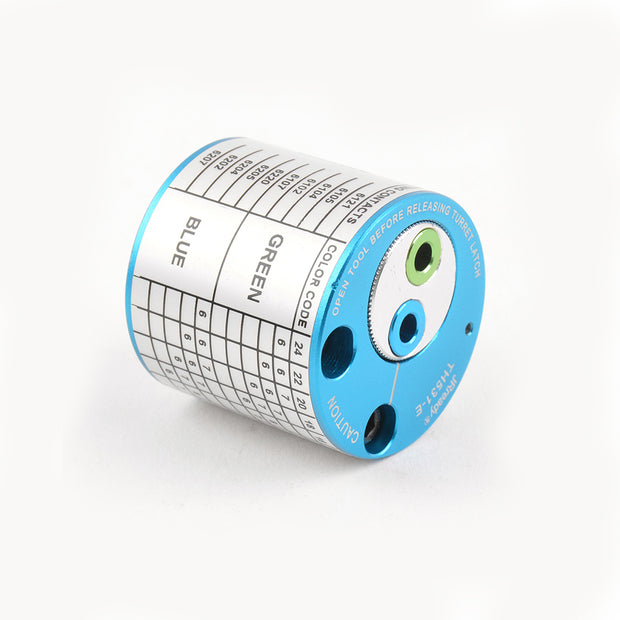

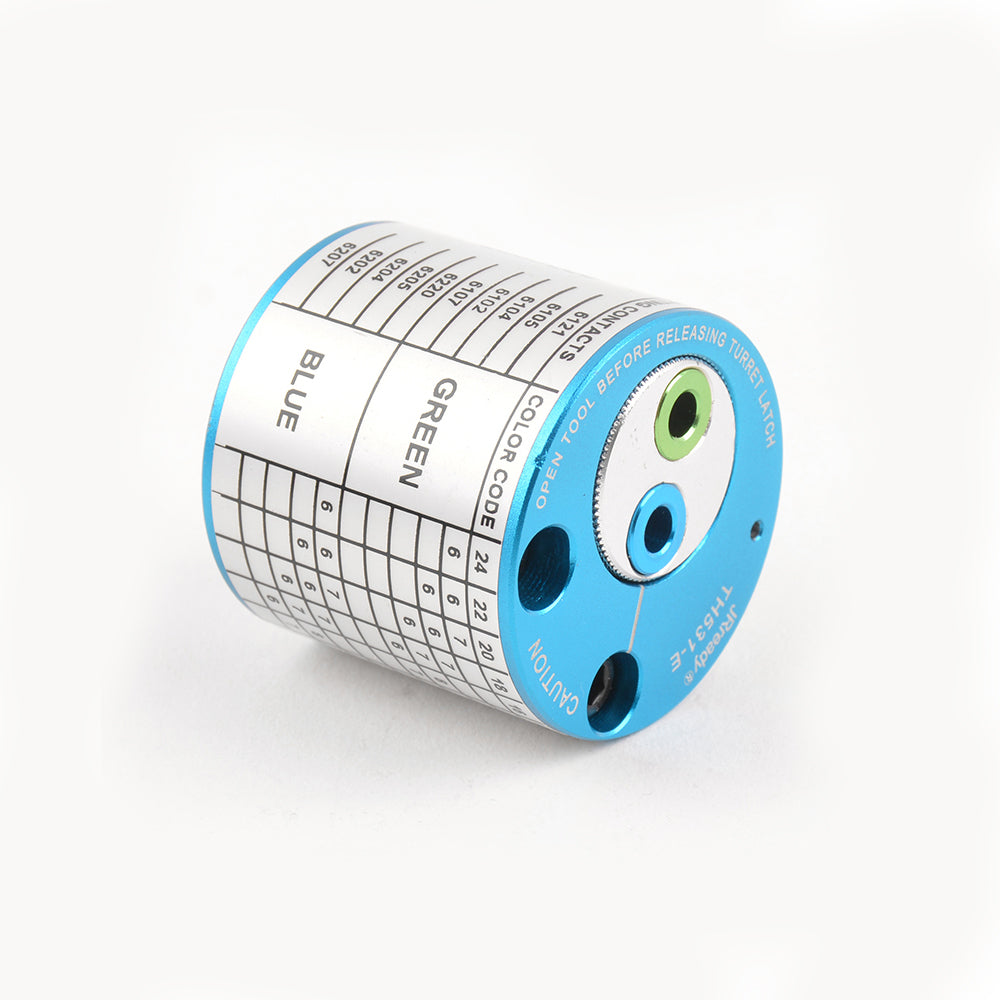

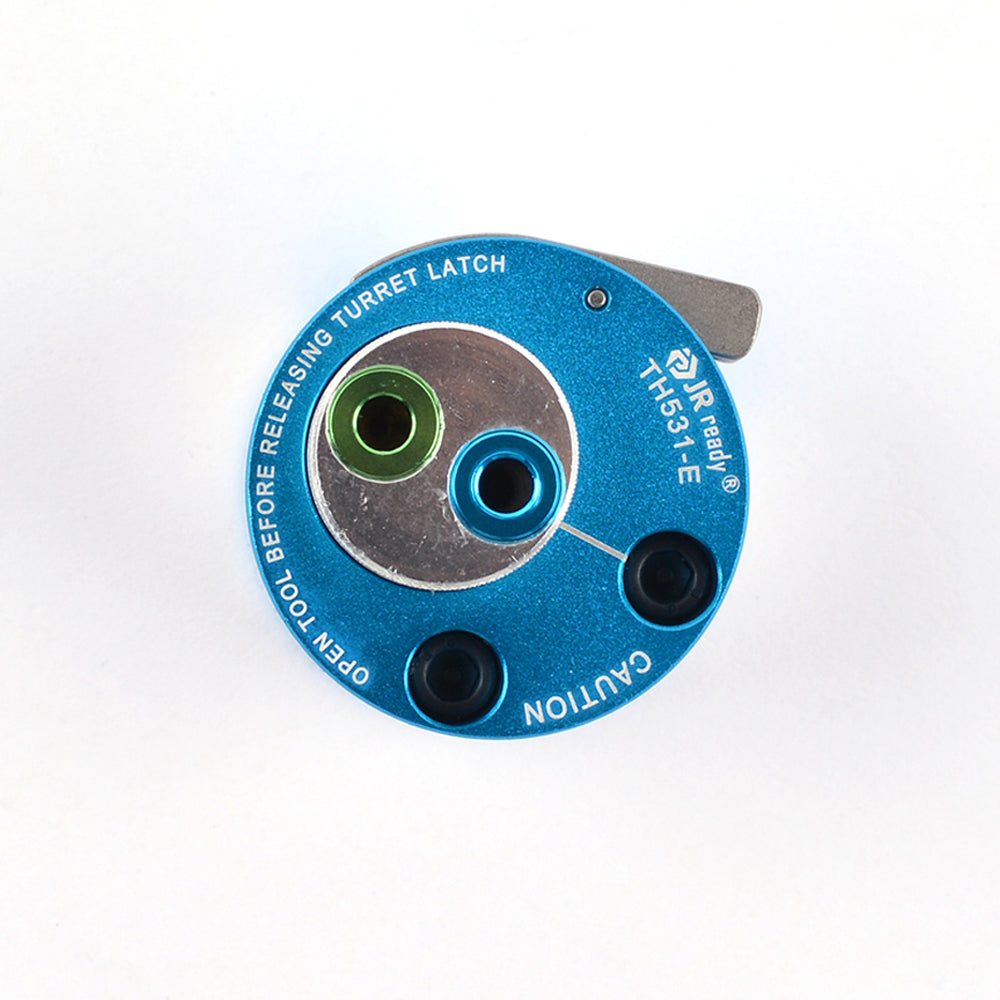

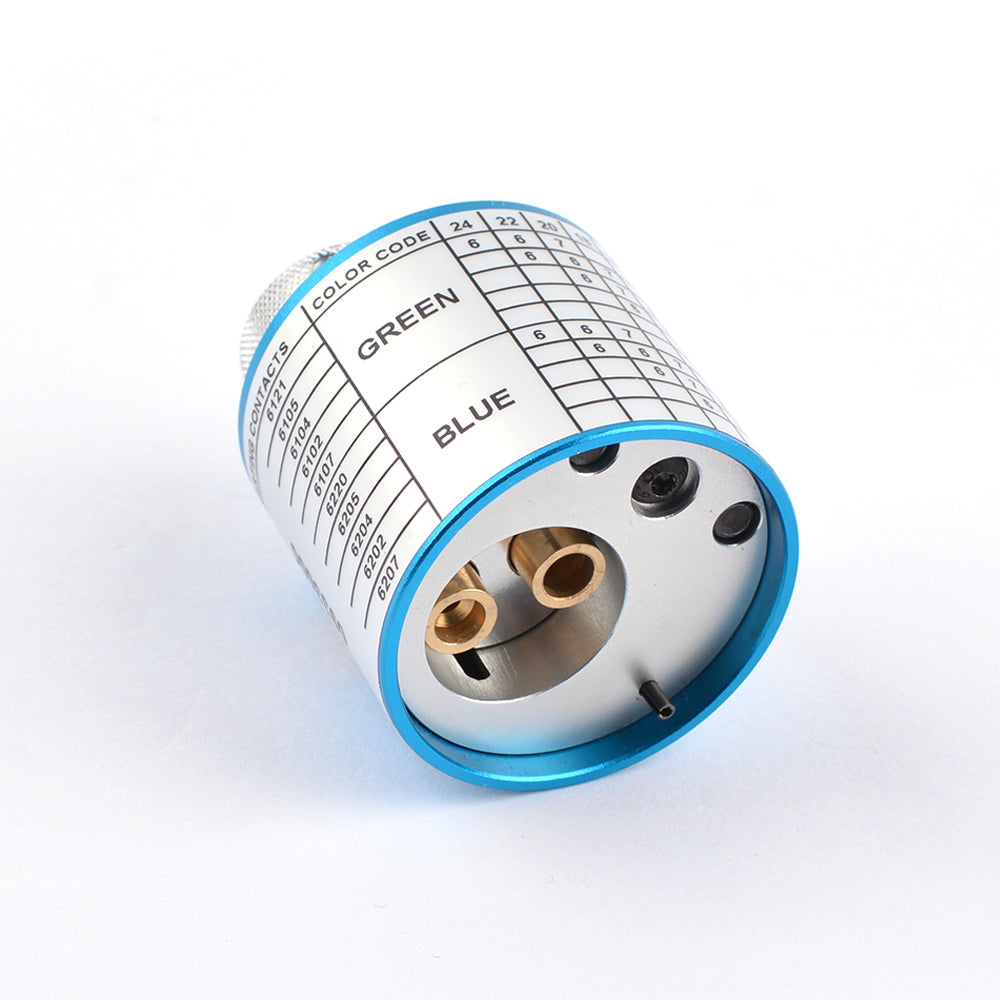

TH531-E turret positioner contains two different specifications of the positioning cores.

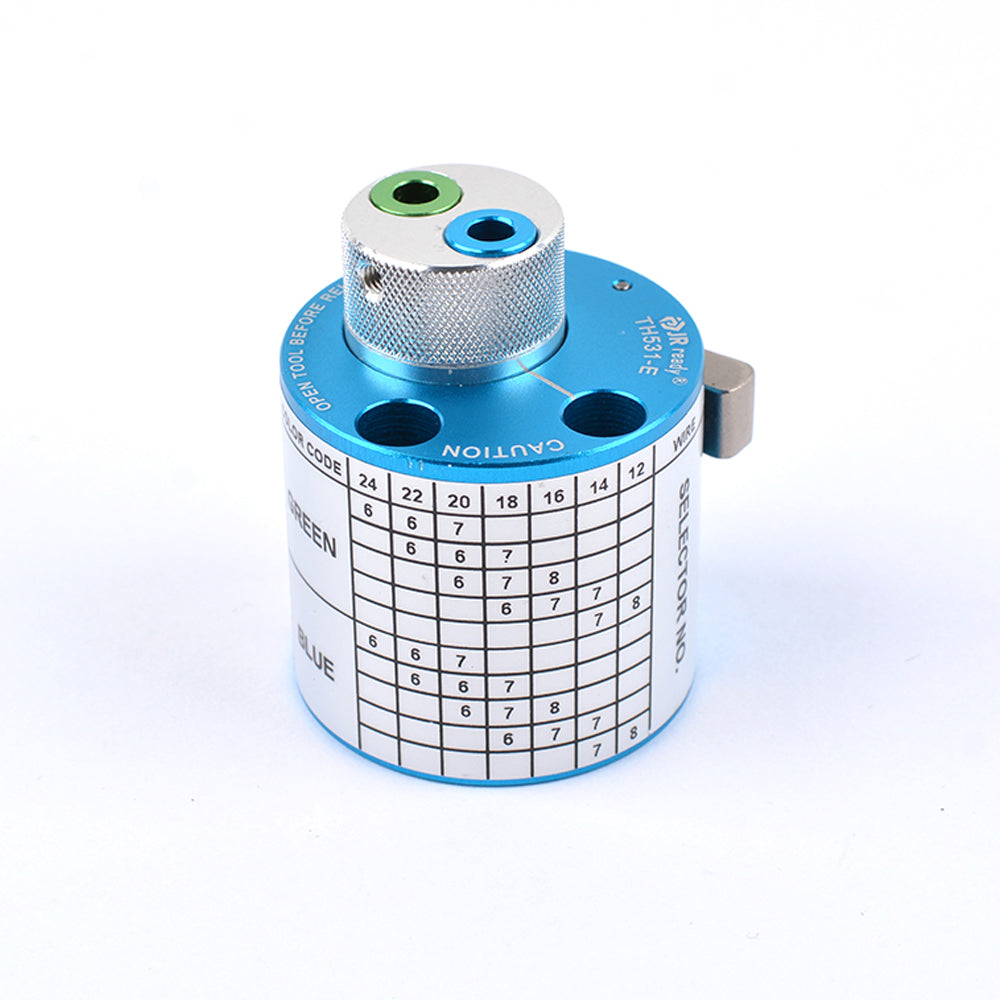

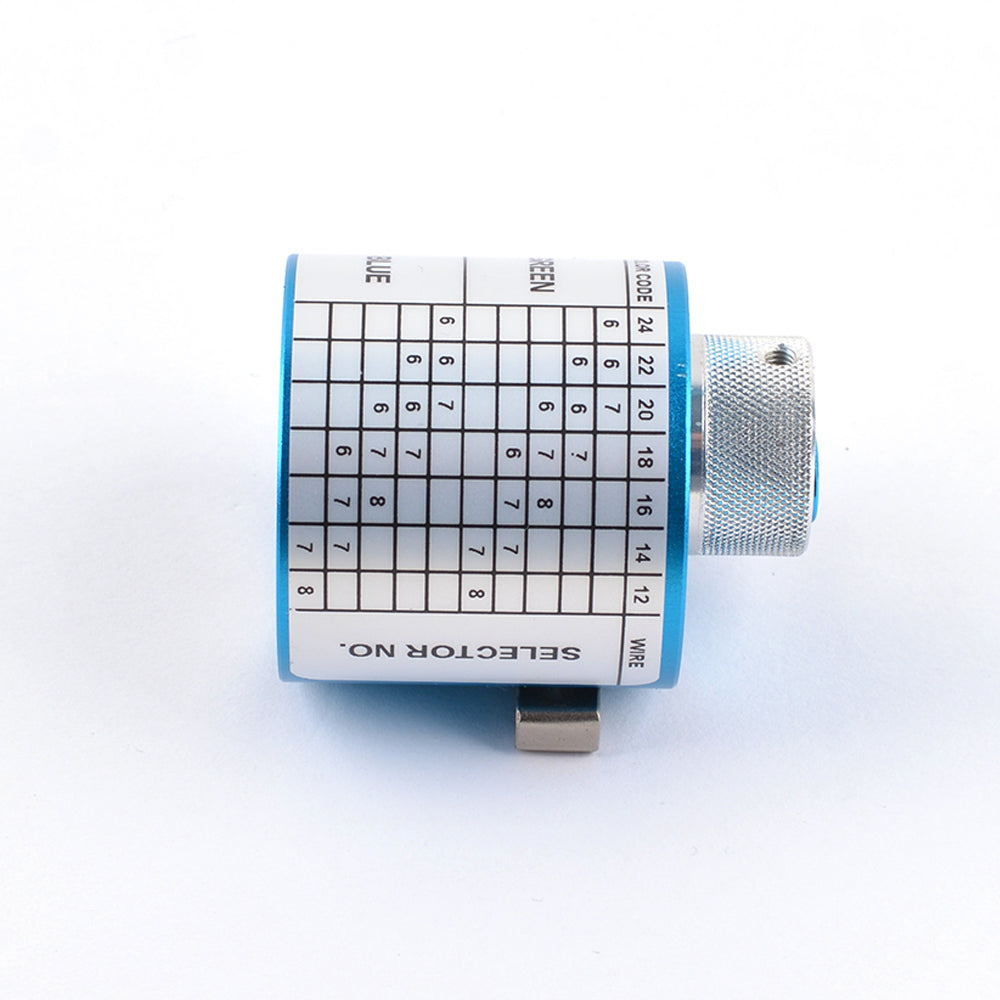

Each core is corresponding to the different positioning core turret colors (green, blue), rotate to the right color according to the different terminal specifications.

Application

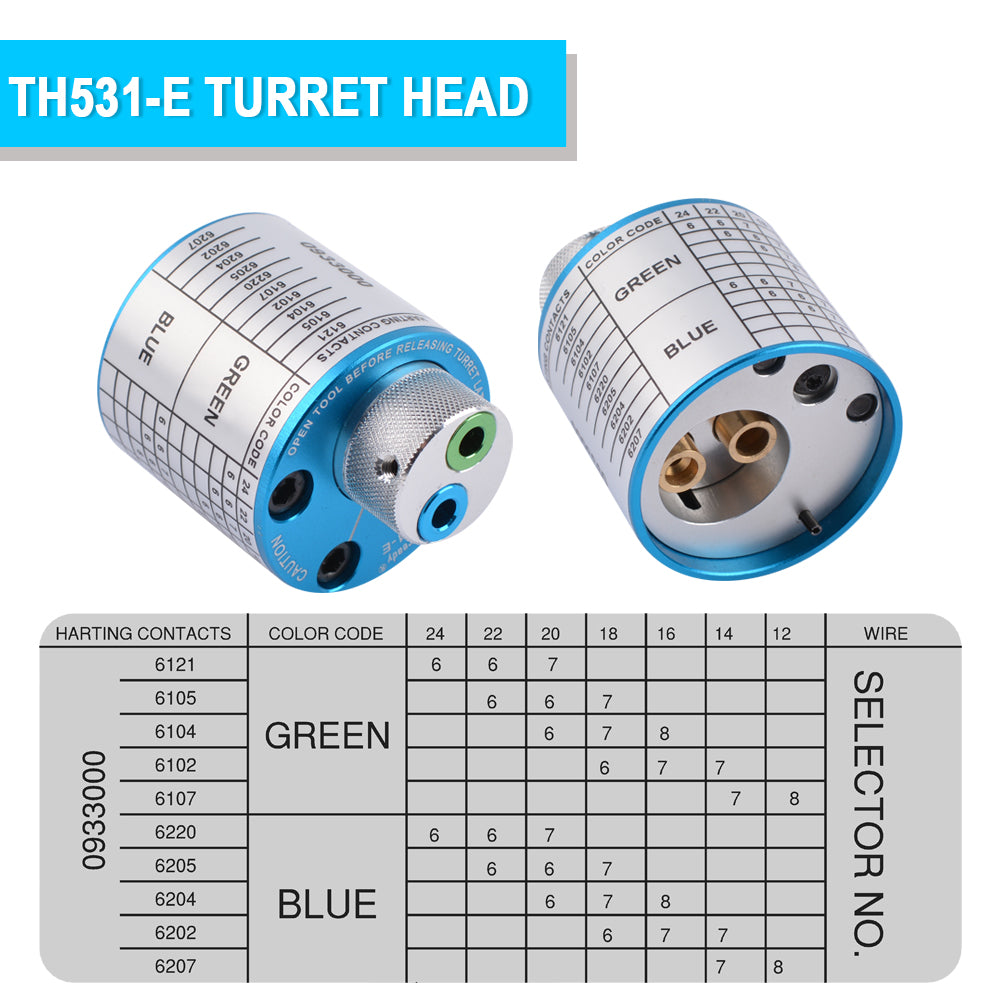

Name Contact drawing Harting connector model Harting contact model Wain connector model Wain contact model
16A contact

HAN E(09330062602 09330102602 09330102702)
HAN EE(0932010300 09320183001 09320323001) HAN EE(09320403001 09320643001)
09330006127 HAC HEC HEE HM HK insert CESM -0.37
09330006121 CESM -0.5
09330006114 CESM -0.75
09330006105 CESM -1.0
09330006104 CESM -1.5
09330006102 CESM -2.5
09330006106 CESM -3.0
09330006107 CESM -4.0
HAN E(09330062702 09330102702)
HAN EE(09320103101 09320183101)
HAN EE(09320403101 09320643101)
09330006227 CESF-0.37G
09330006220 CESF-0.5G
09330006214 CESF-0.75G
09330006205 CESF-1.0G
09330006204 CESF-1.5G
09330006202 CESF-2.5G
09330006206 CESF-3.0G
09330006207 CESF-4.0G
09330006117 CEGM -0.37
09330006122 CEGM -0.5
09330006115 CEGM -0.75
09330006118 CEGM -1.0
09330006116 CEGM -1.5
09330006123 CEGM -2.5
/ CEGM -3.0
09330006119 CEGM -4.0
09330006217 CEGF-0.37G
09330006222 CEGF-0.5G
09330006215 CEGF-0.75G
09330006218 CEGF-1.0G
09330006216 CEGF-1.5G
09330006223 CEGF-2.5G
/ CEGF-3.0G
09330006221 CEGF-4.0G
