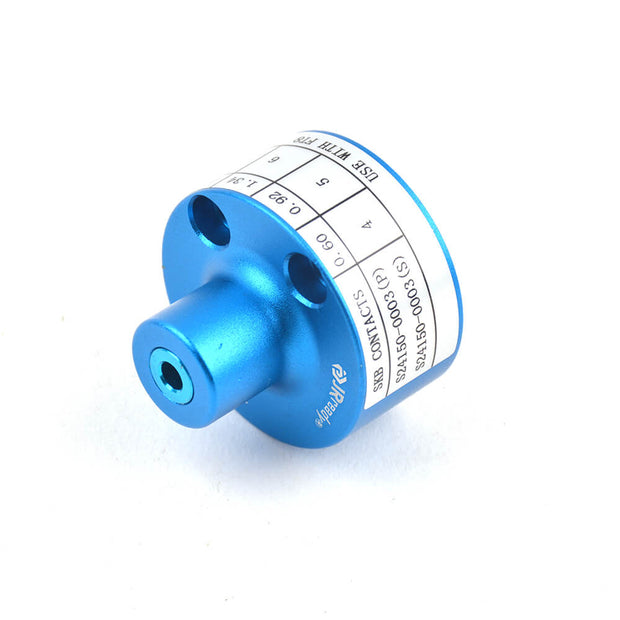

TP Series Single Position Head

TP Series single positioner head is easily removed and changed.
It is used to locate contacts horizontally and vertically between the indenters of the tools to ensure the accuracy and consistency of the crimp position.Gives a standardized and accurate crimp every time

1.Works with JRD-FT8 crimping tool.
2.Gives a standardized and accurate crimp every time.
3.The data plate on the positioner designates which contacts the single position head accommodates.

Number	Model	MIL standard	Compatible contacts model

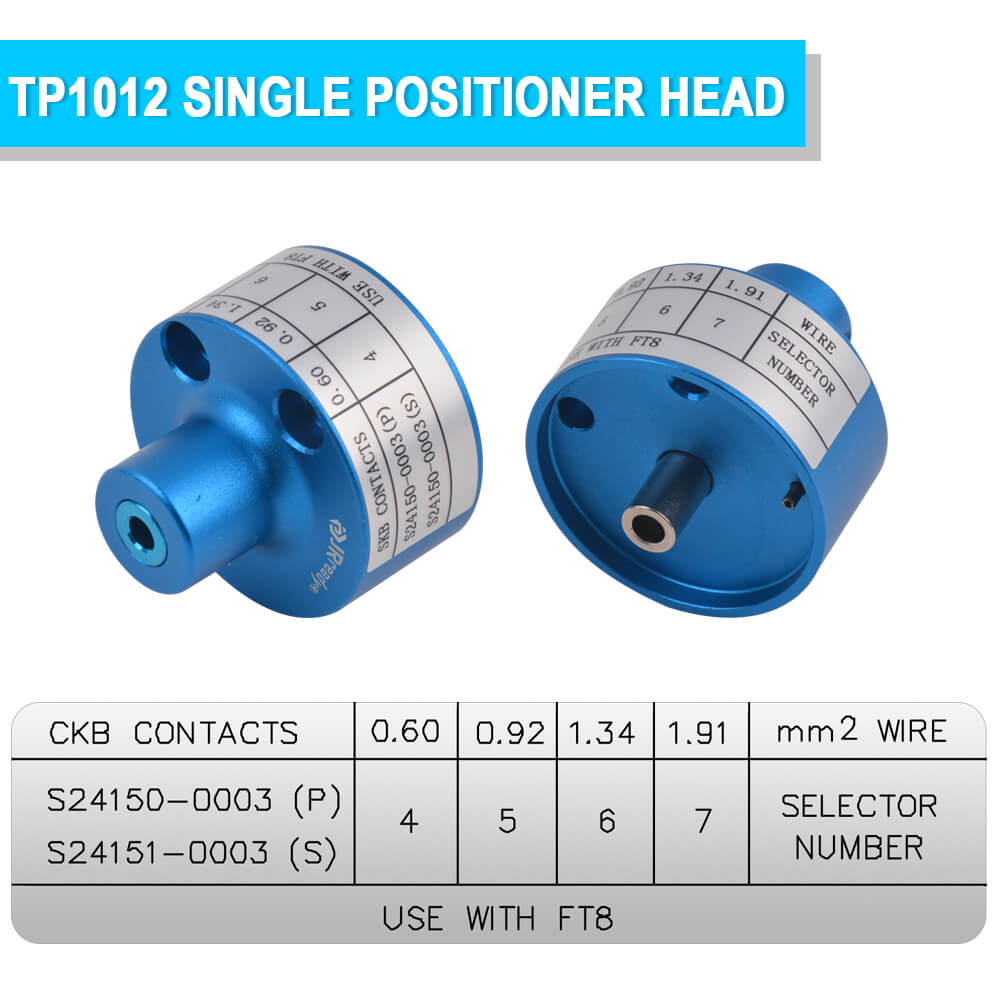

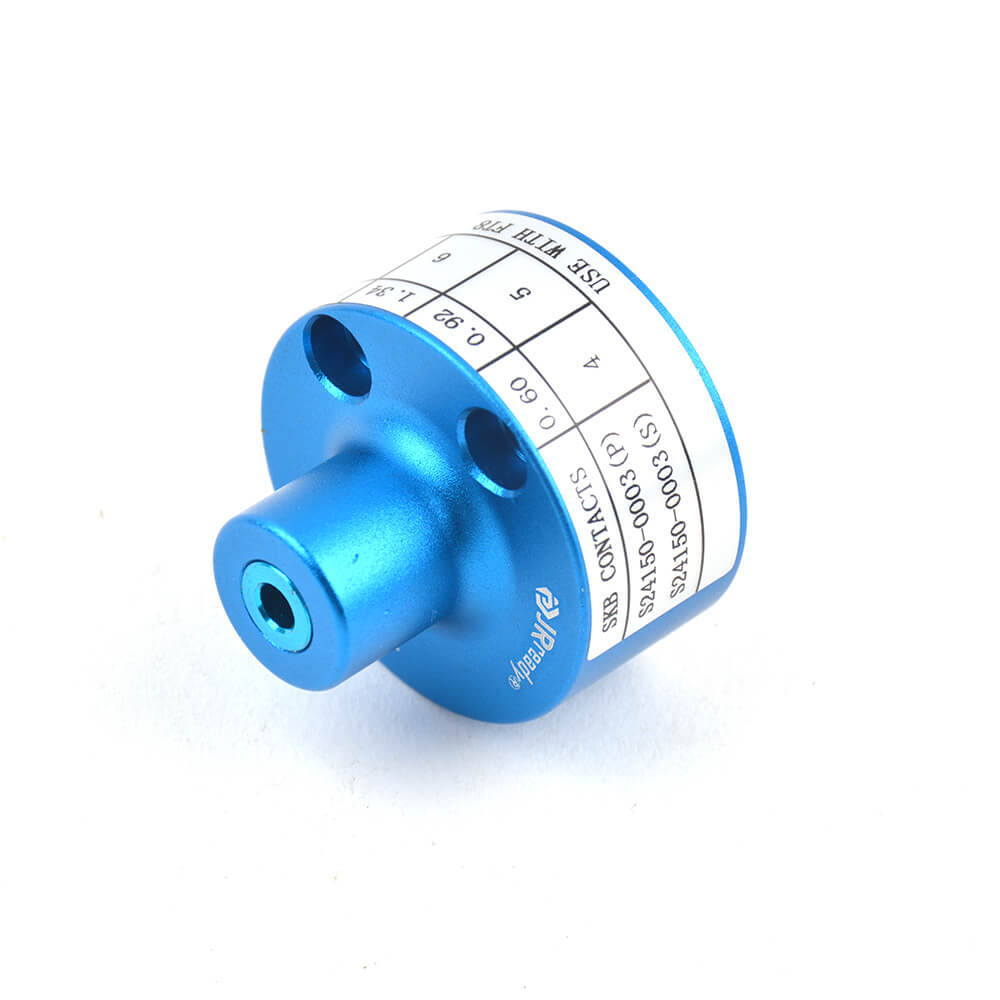

1	TP1012	/	TE Connectivity / DEUTSCH NGC Connector contacts

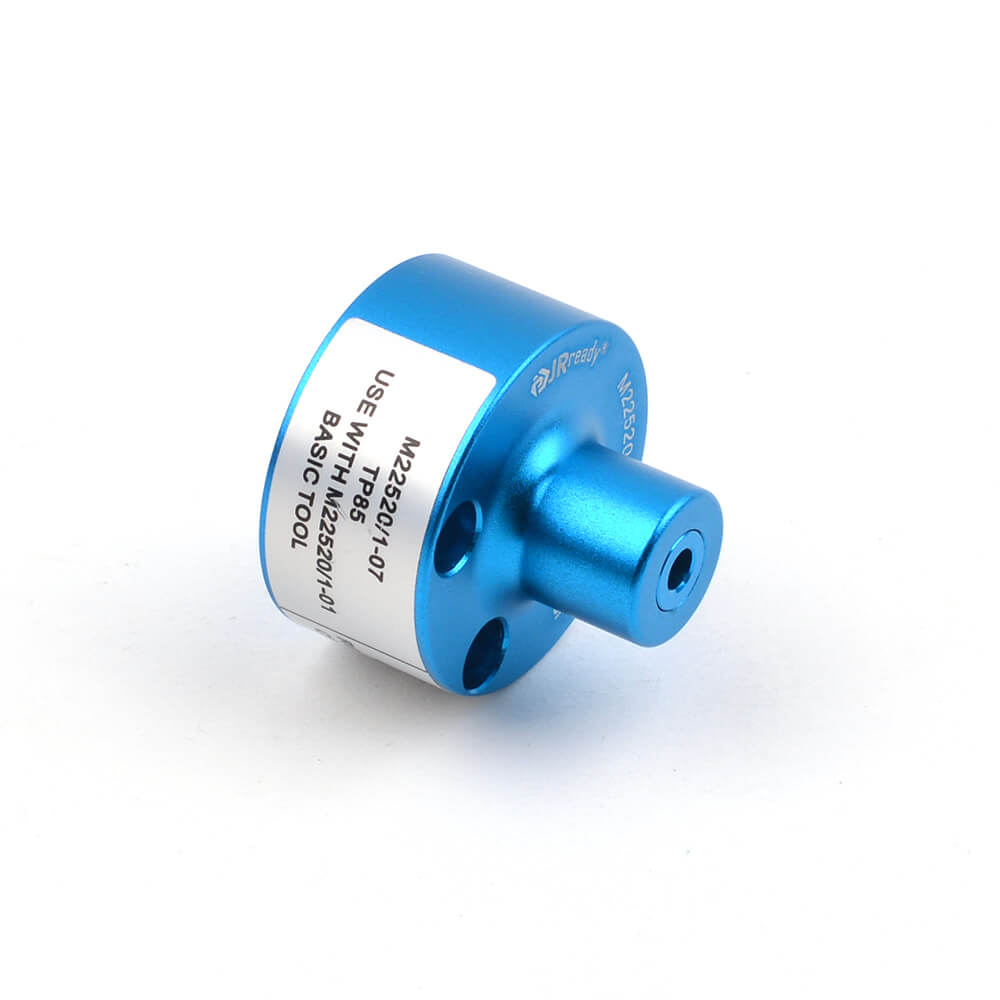

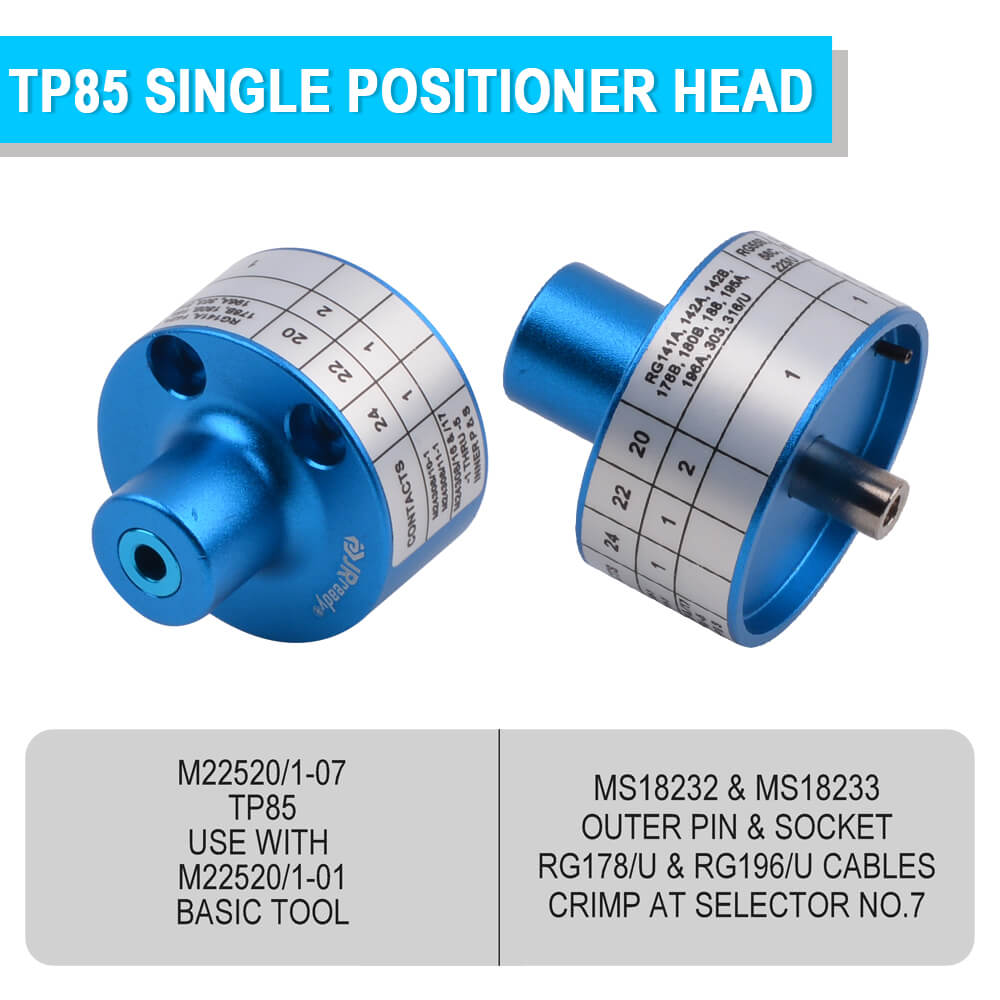

2	TP85	M22520/1-07	MS18232，MS18233

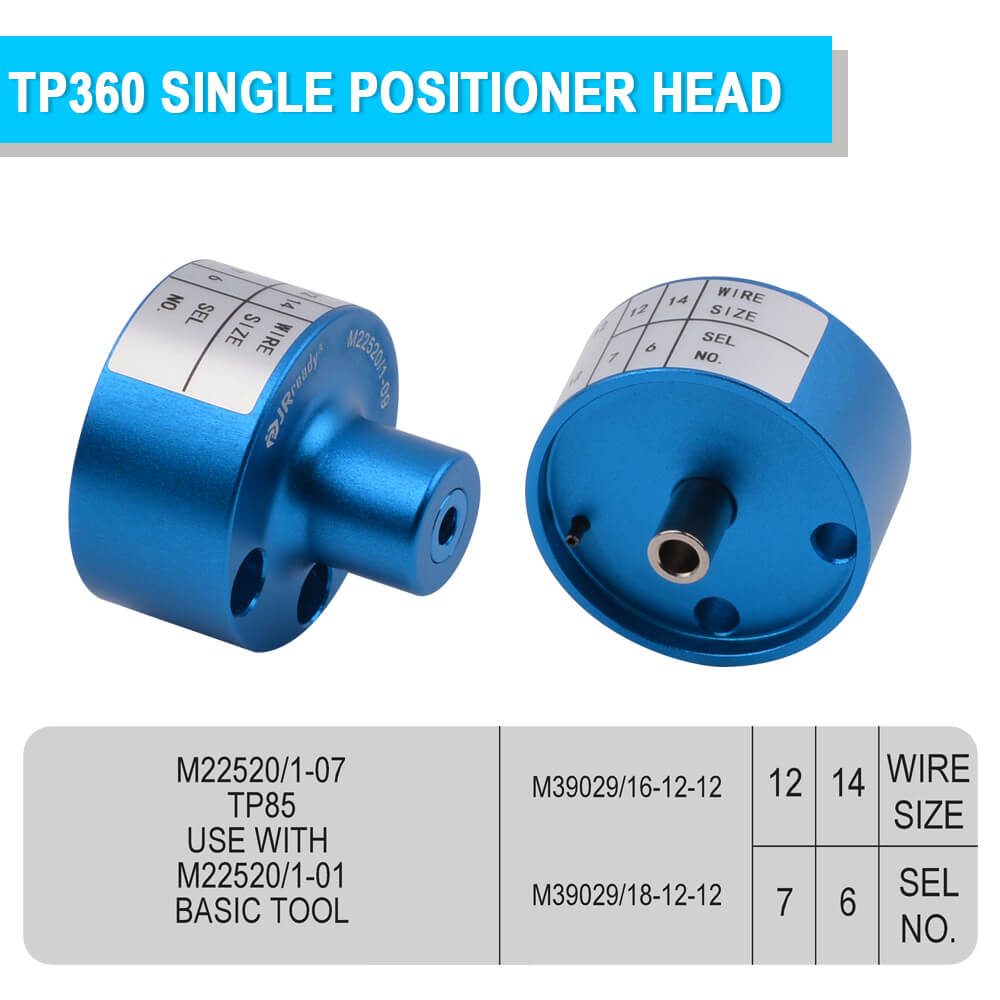

3	TP360	M22520/1-09	M39029/18-180, M39029/17-175, M39029/18-180 , M39029/16-170

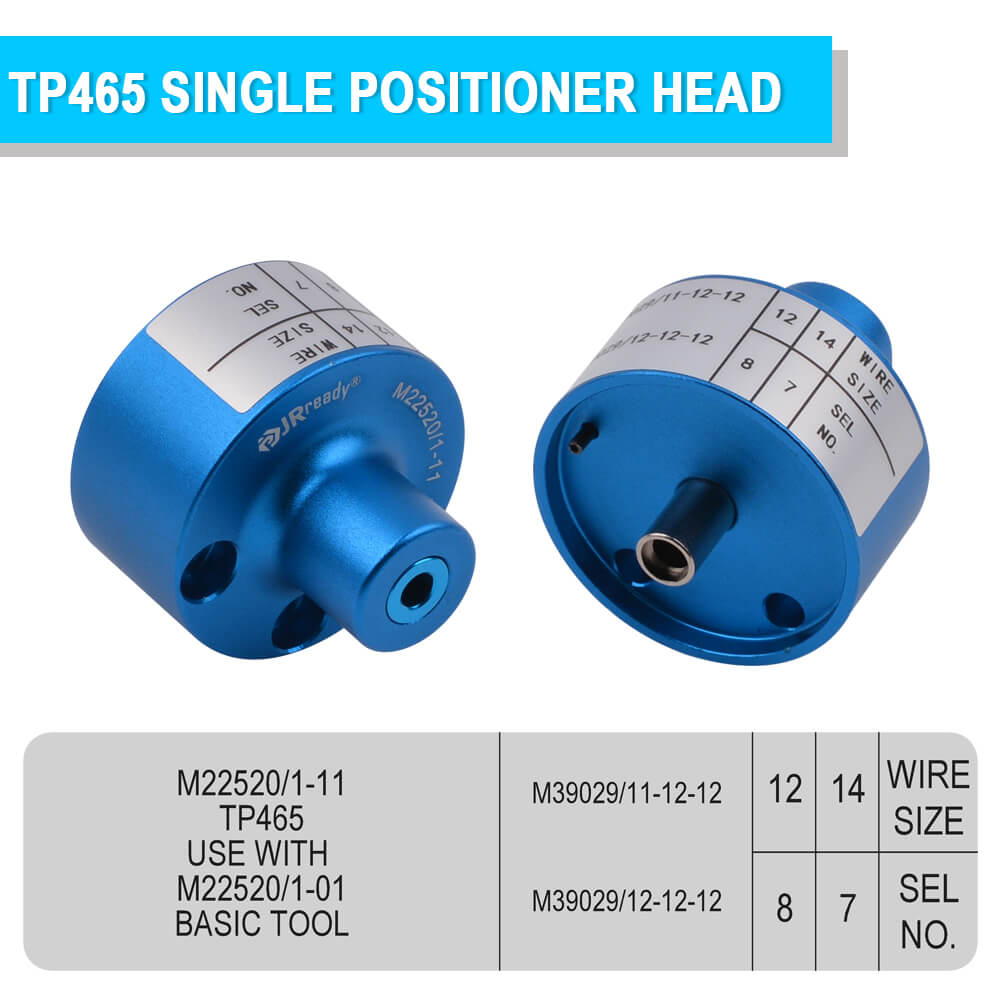

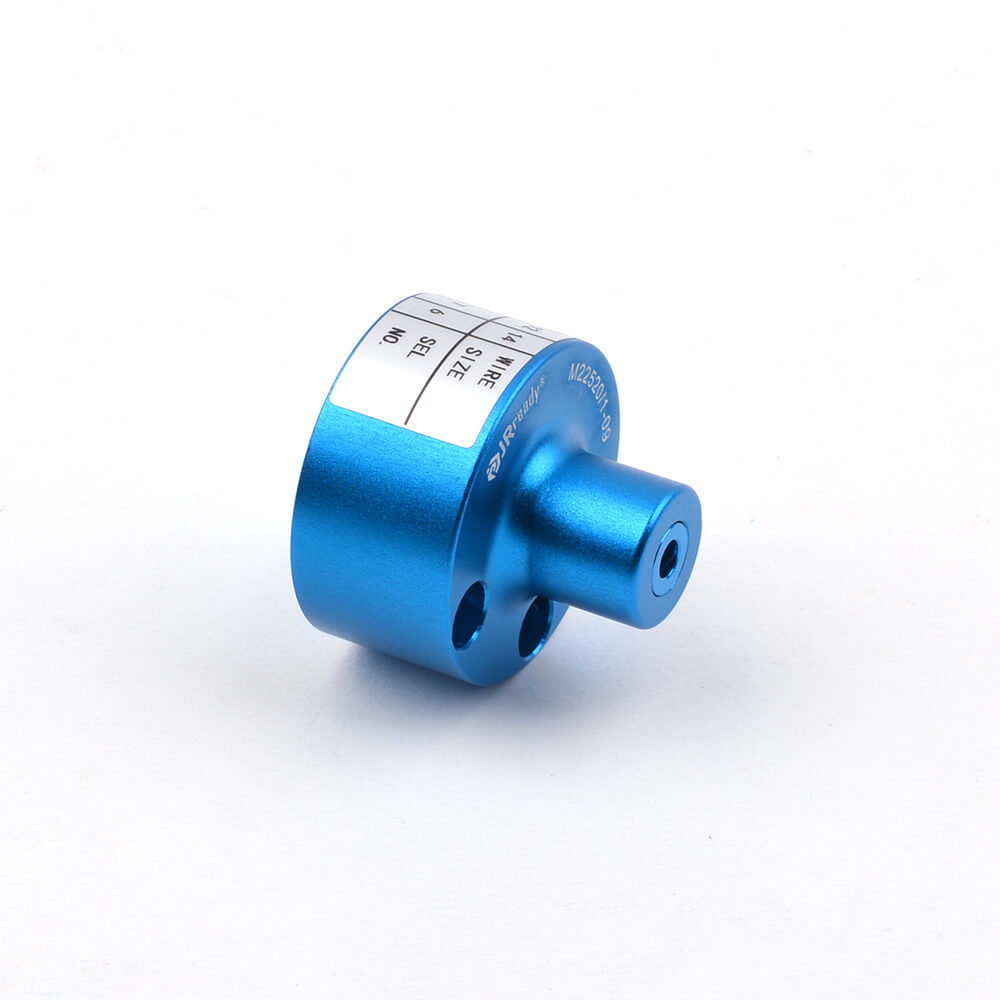

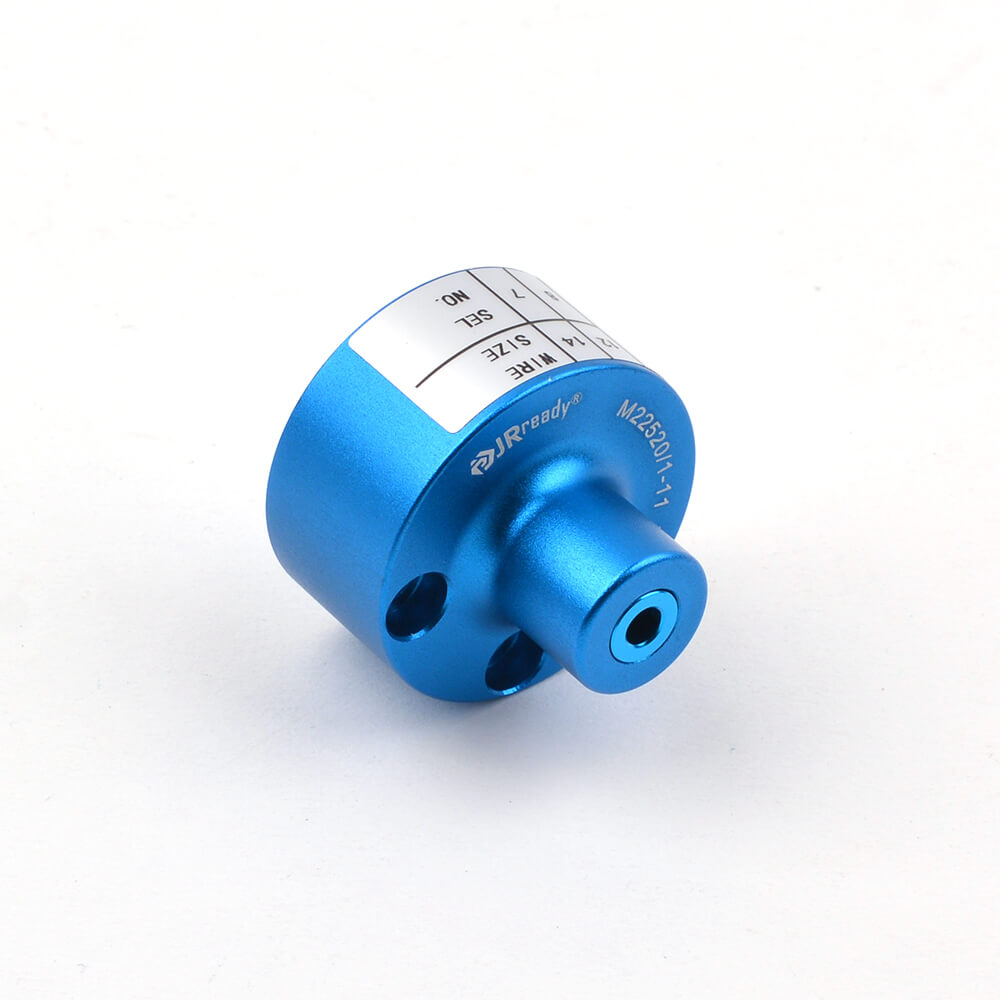

4	TP465	M22520/1-11	M39029/93-540, M39029/94-604, M39029/11-147, M39029/12-151

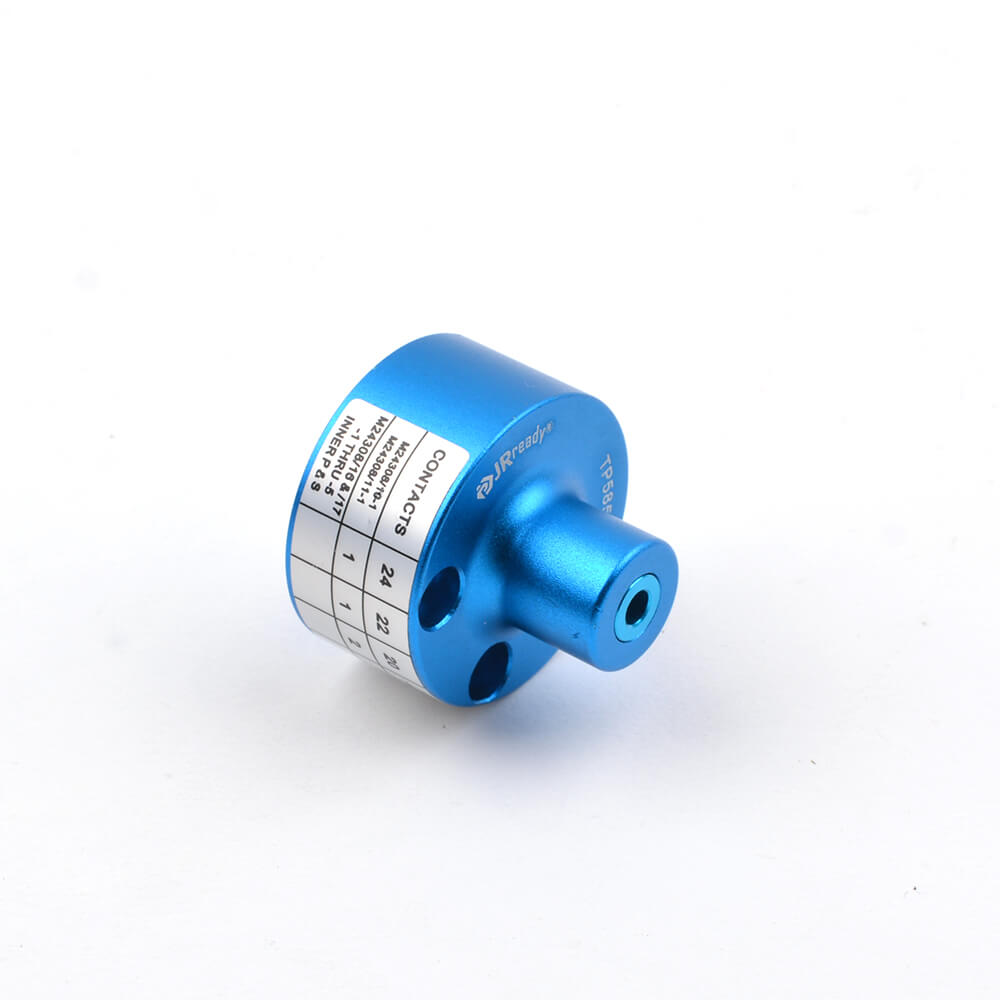

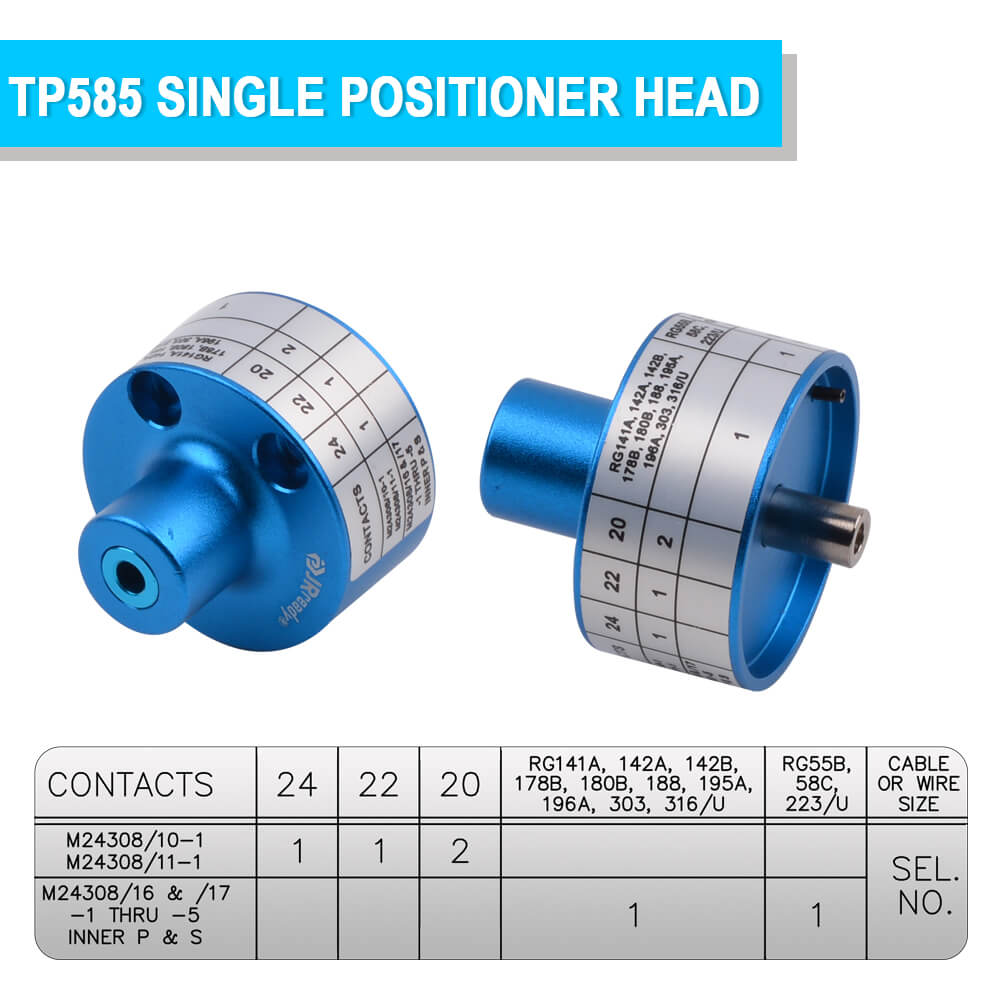

5	TP585	/	M24308/10-1, M24308/11-1, M39029/64-369, M39029/64-657, M39029/63-368, M39029/63-656, M39029/93-598, M39029/94-602

Single positioner head installing

1.Keep the crimp tool in open position
2.Place selected single positioner head assembly onto retainer ring with socket head screws lined up with tapped holes.
3.After single positioner head is seated against retainer ring, tighten socket head screws.
4.single positioner head installation is completed.
