JRready ST6559 Kontaktanschluss-Set: 1060-16-0122*80+1062-16-0122*80

JRready ST6559 Contact Terminal Kit:
1060-16-0122*80pcs + 1062-16-0122*80pcs

[PHOSPHOR BRONZE CONTACTS FOR STABLE MATING PERFORMANCE]

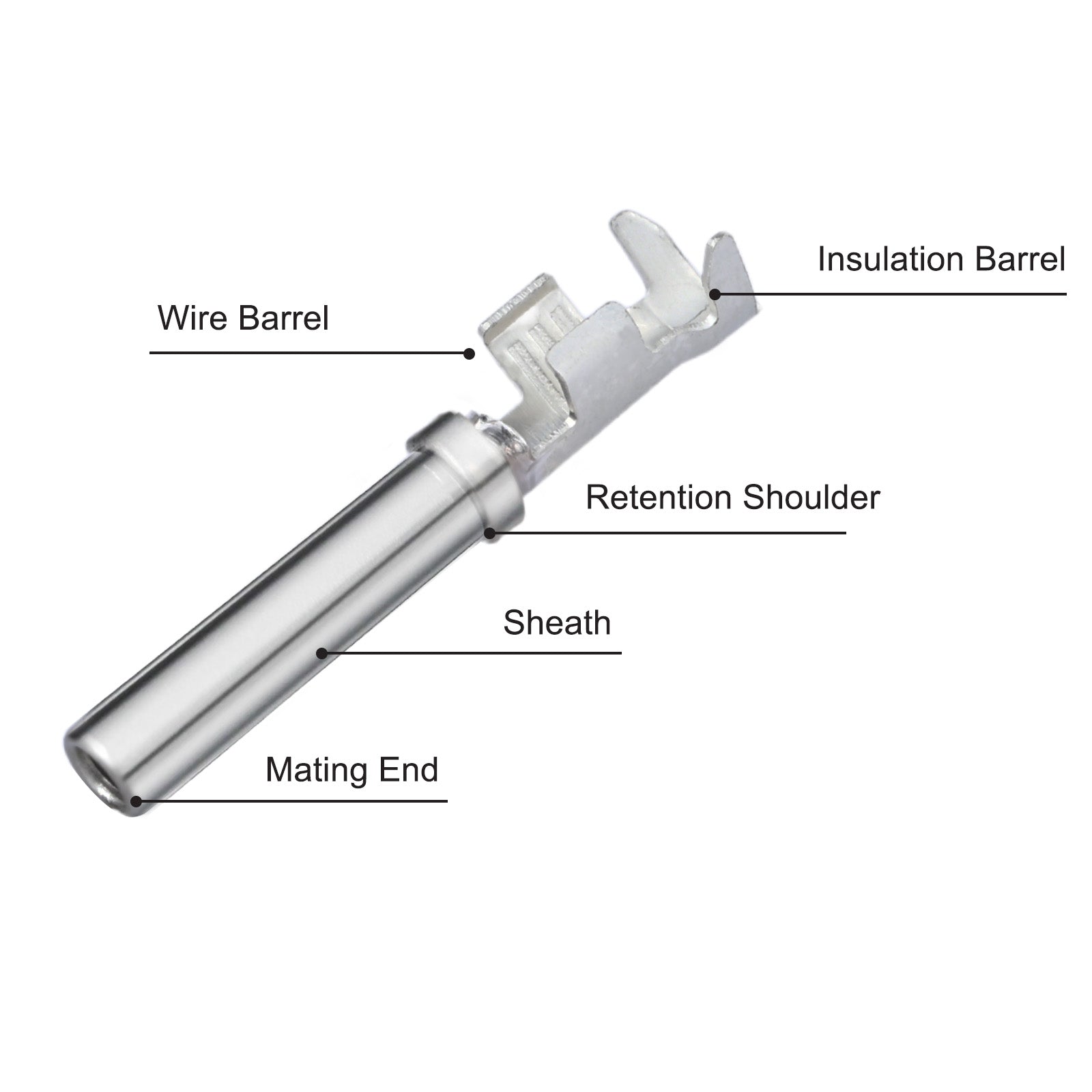

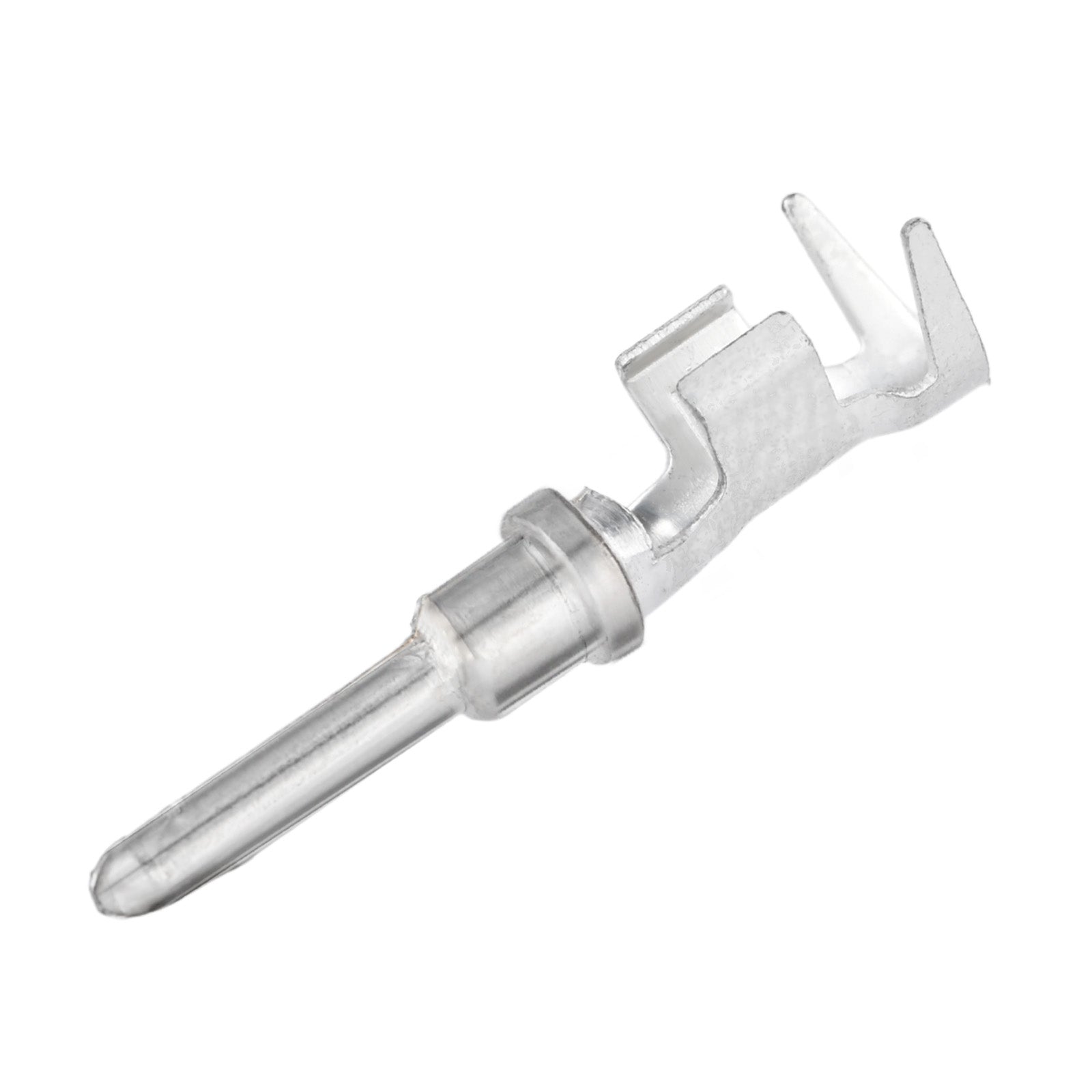

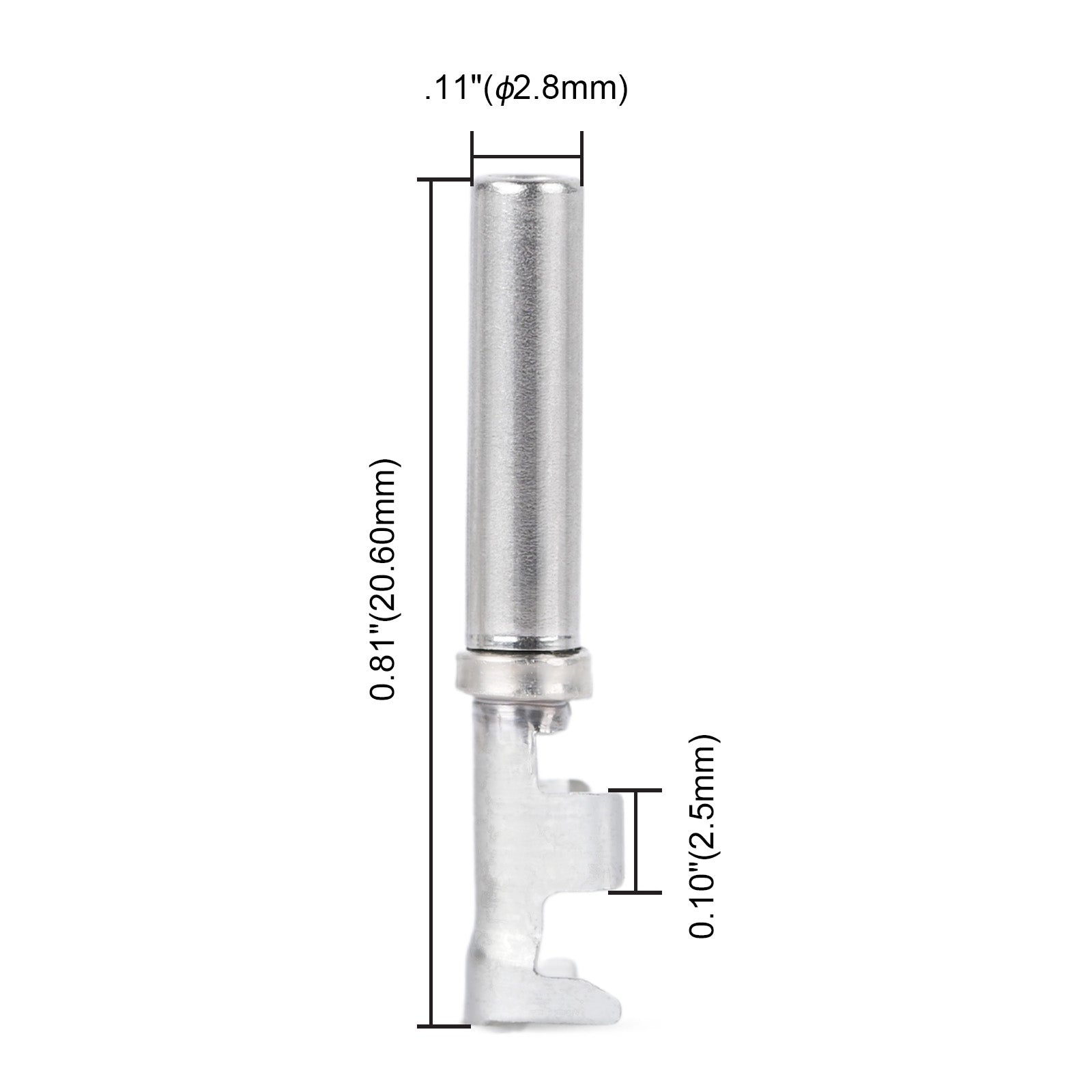

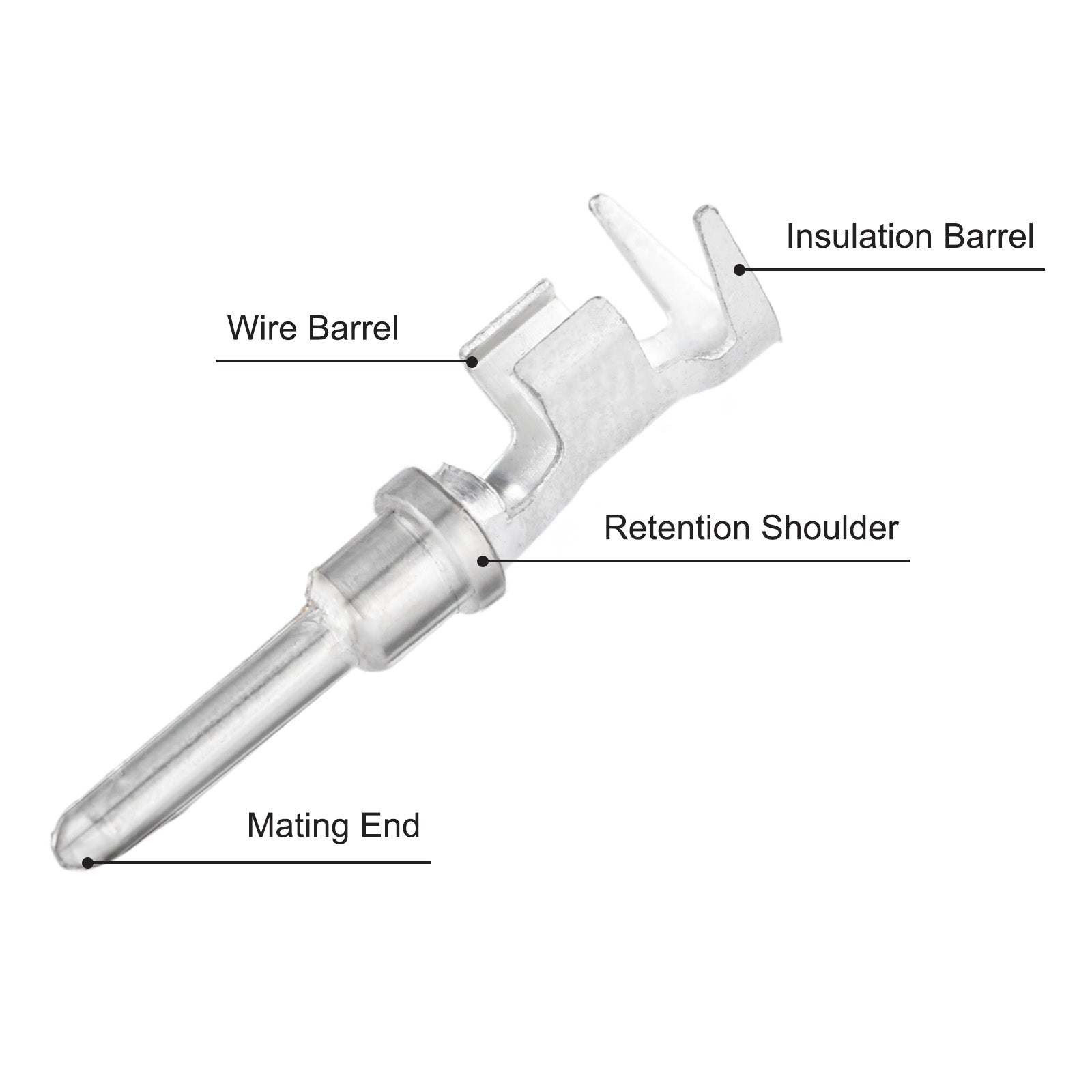

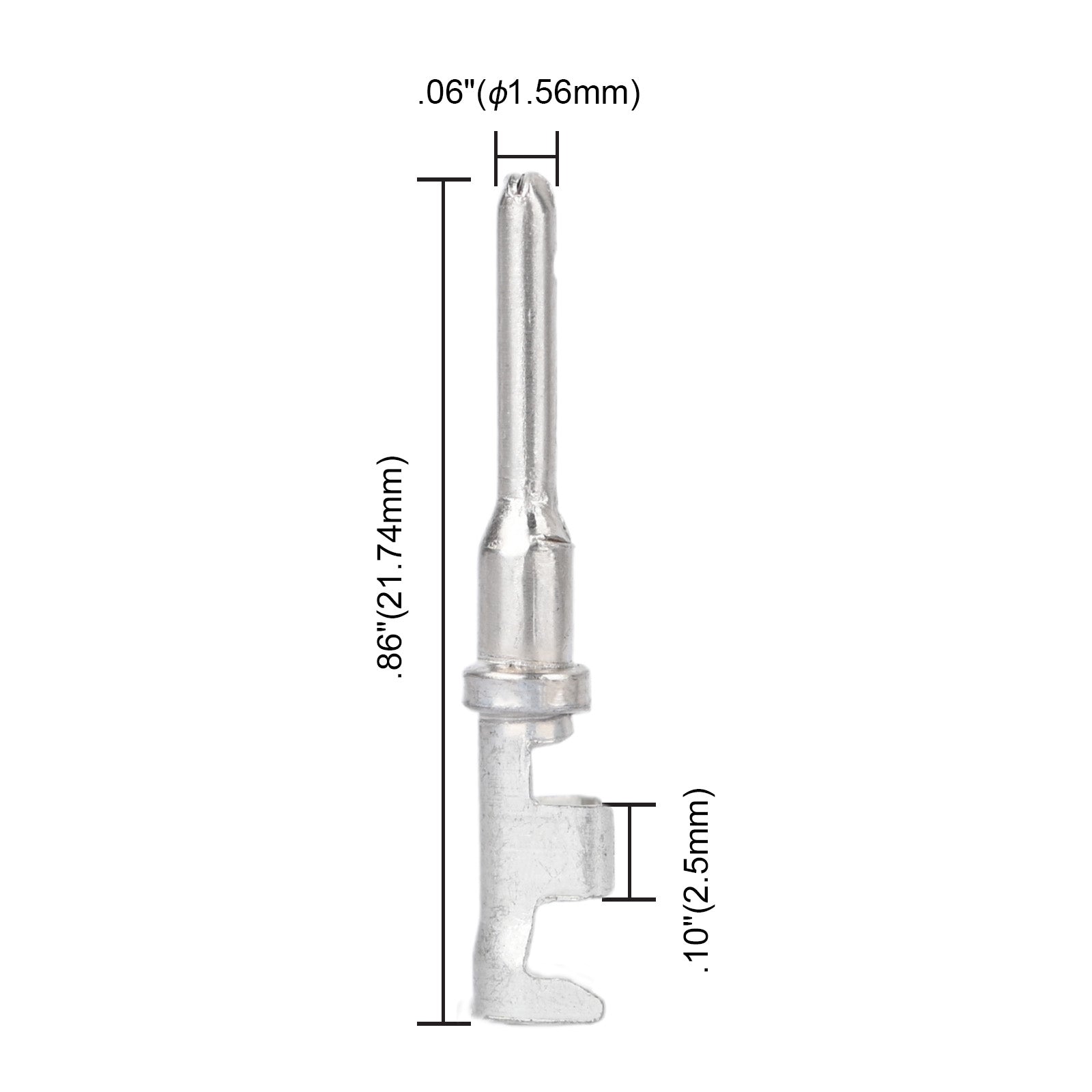

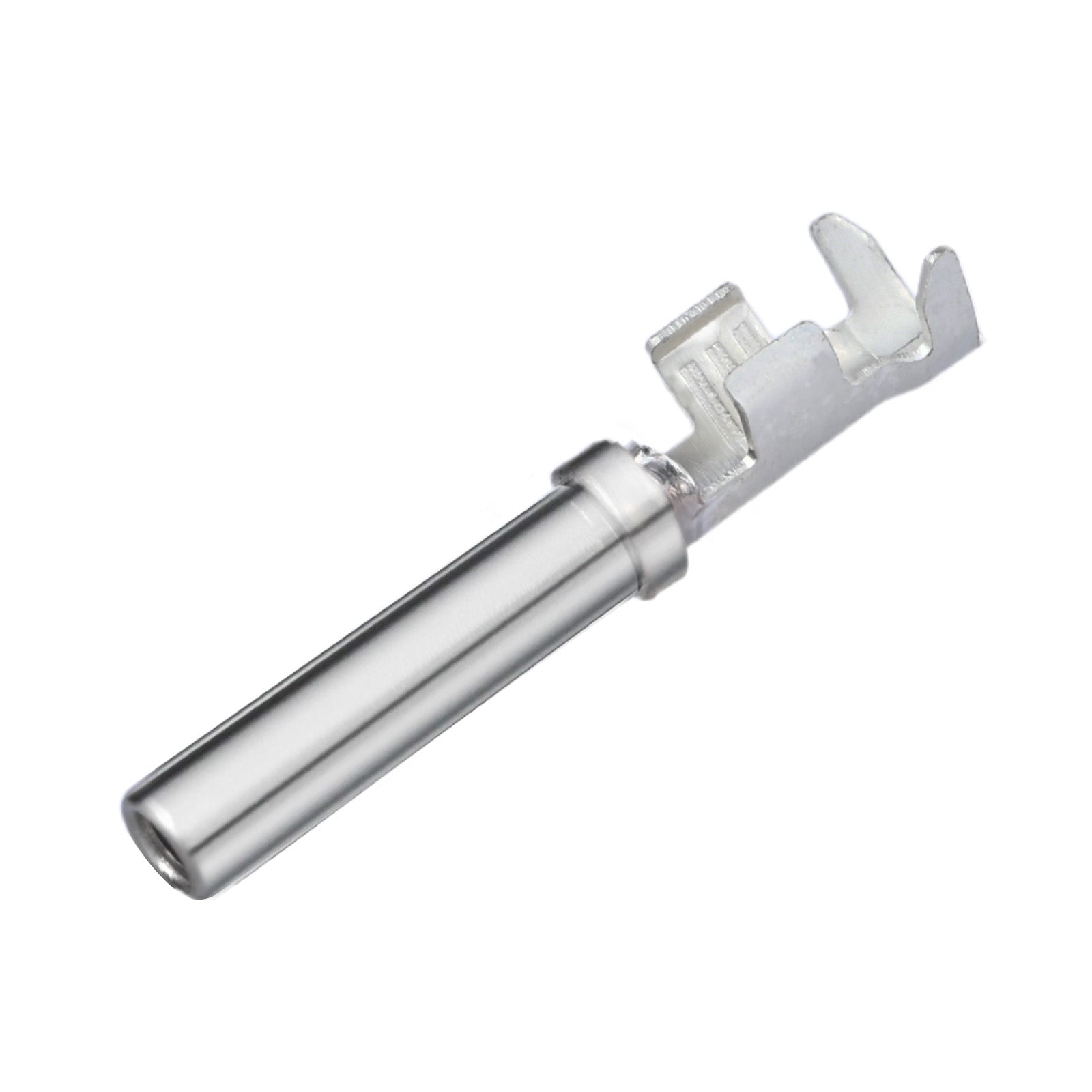

The 1060-16-0122 pin and 1062-16-0122 socket terminals in this kit are stamped from phosphor bronze, a material known for its spring-back characteristics and resistance to stress relaxation over time. This ensures the contact interface maintains consistent mating force across repeated connection cycles, supporting reliable conductivity throughout the service life of the connector assembly.

[DUAL-SURFACE PLATING FOR OPTIMIZED CONTACT AND CRIMP ZONES]

Both contacts feature full nickel plating across the mating interface with a tin-plated crimp tail, combining the corrosion resistance of nickel at the contact zone with the enhanced wire adhesion of tin at the termination point. This two-zone plating approach addresses the different performance requirements of the mating and crimping sections within a single contact.

[VERIFIED CRIMP QUALITY ACROSS EVERY BATCH]

Each terminal undergoes appearance inspection, post-crimping CMM inspection, and wire pull-force testing before leaving production, ensuring crimp geometry and wire retention meet specification across the full batch — delivering consistent termination quality for harness assembly and connector repair applications.

[ENGINEERED FOR DEUTSCH CONNECTOR FAMILIES]

The 1060-16-0122 pin and 1062-16-0122 socket are compatible with DT, HDP20, HD30, HD10, DRC, and Jiffy Splice series connectors, covering the core Deutsch-interface families used across automotive and industrial wiring. A matched pin and socket kit in a single order simplifies procurement for harness production and repair operations working within the Deutsch connector ecosystem.

[AUTOMOTIVE & INDUSTRIAL HARNESS ASSEMBLY]

The ST6559 kit is designed for harness assemblers and technicians working on automotive and industrial wiring applications where DT series and related Deutsch connectors are standard. The 16# contact size and 14-18 AWG wire range cover the most common signal and moderate-current circuit requirements encountered in OEM harness production, connector repair, and field wiring maintenance.
