JRready Pin Rod Type Replacement Tips are precision-made replacement components designed for accurate and safe terminal extraction. Featuring a finely machined pin rod structure, these tips provide reliable engagement with specific terminals while helping protect connector housings and contacts during removal. Available in multiple models for different connector systems, they are designed to replace worn or damaged extraction tips and restore dependable performance for JRready extraction tools in automotive, electrical, and industrial maintenance applications.
Models & Compatibility:

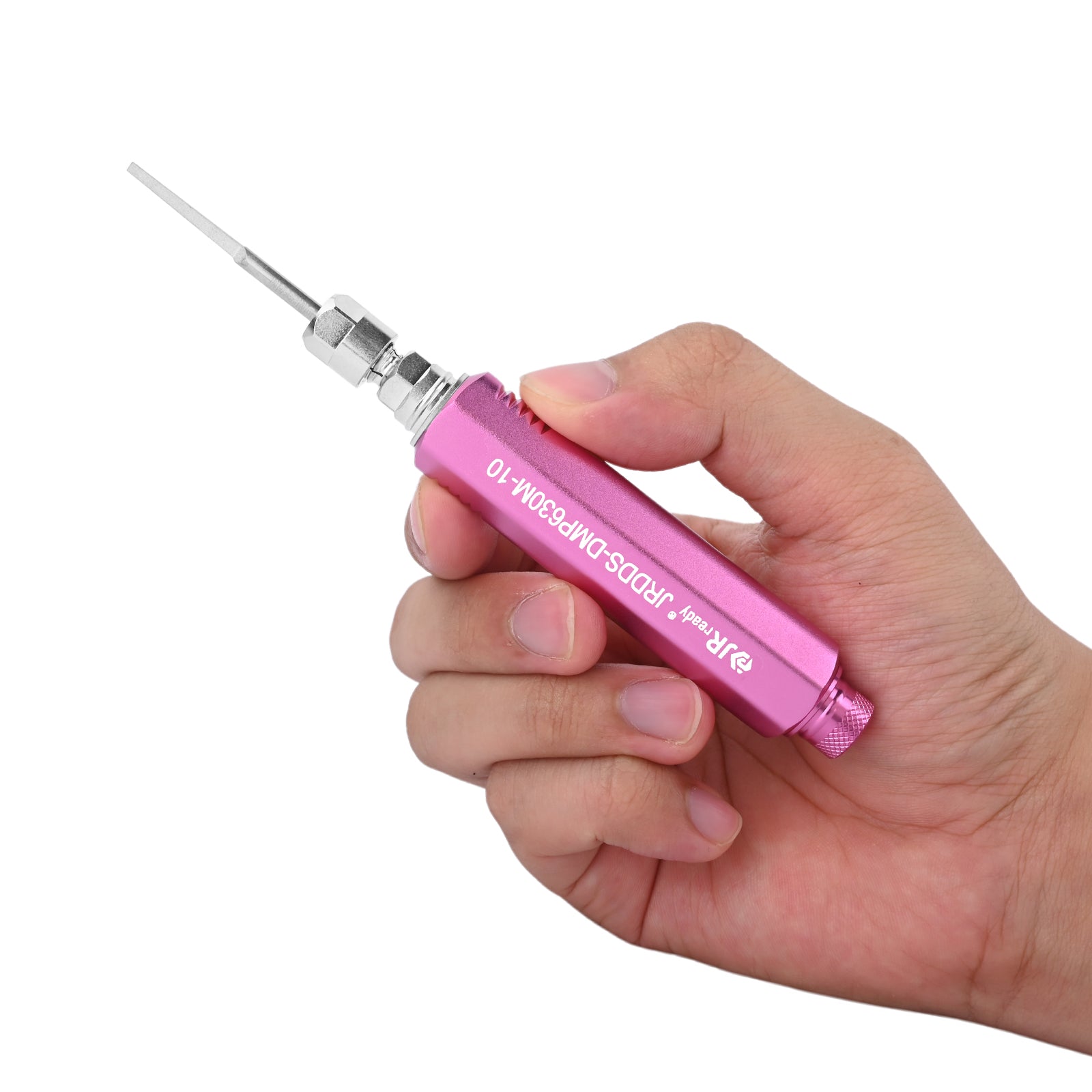

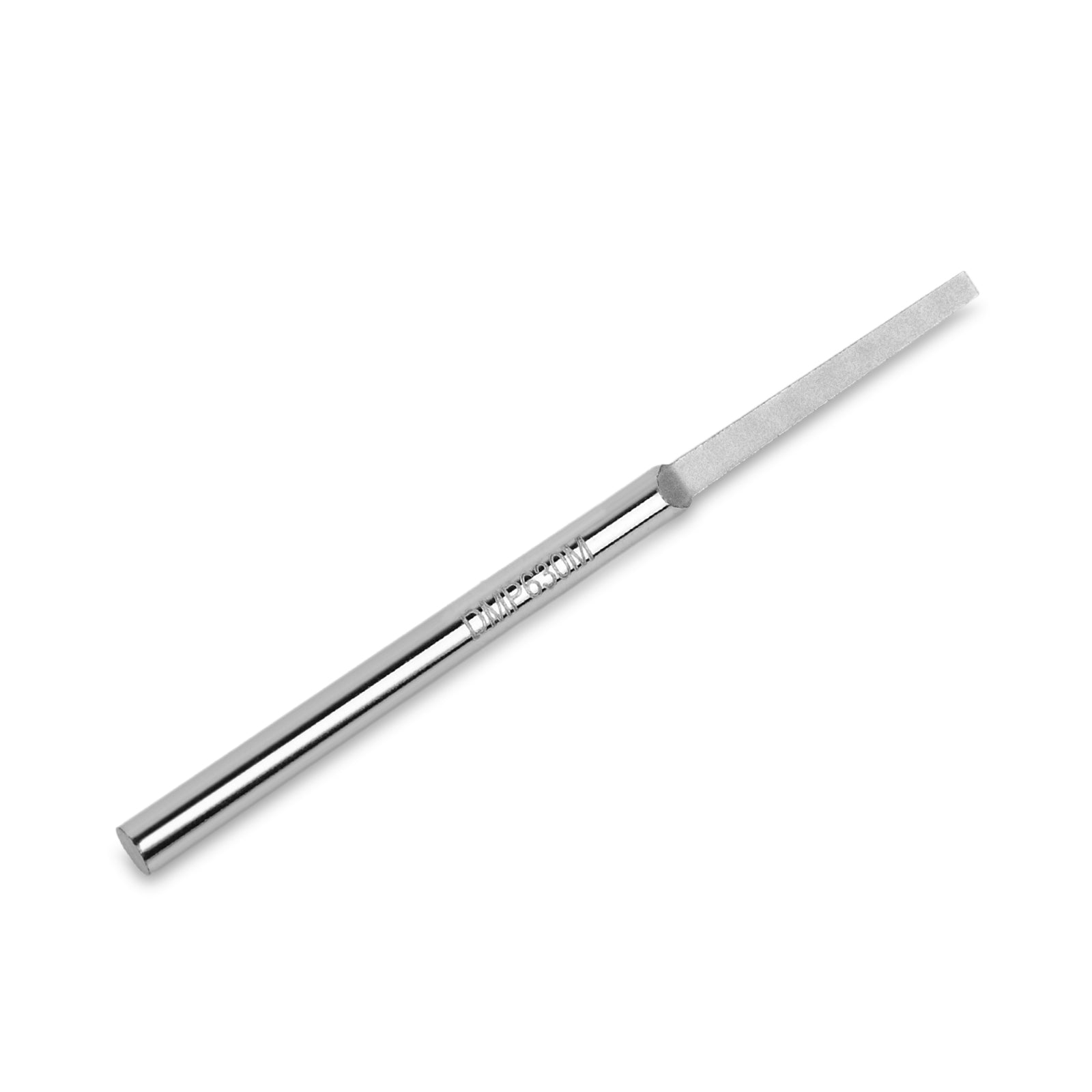

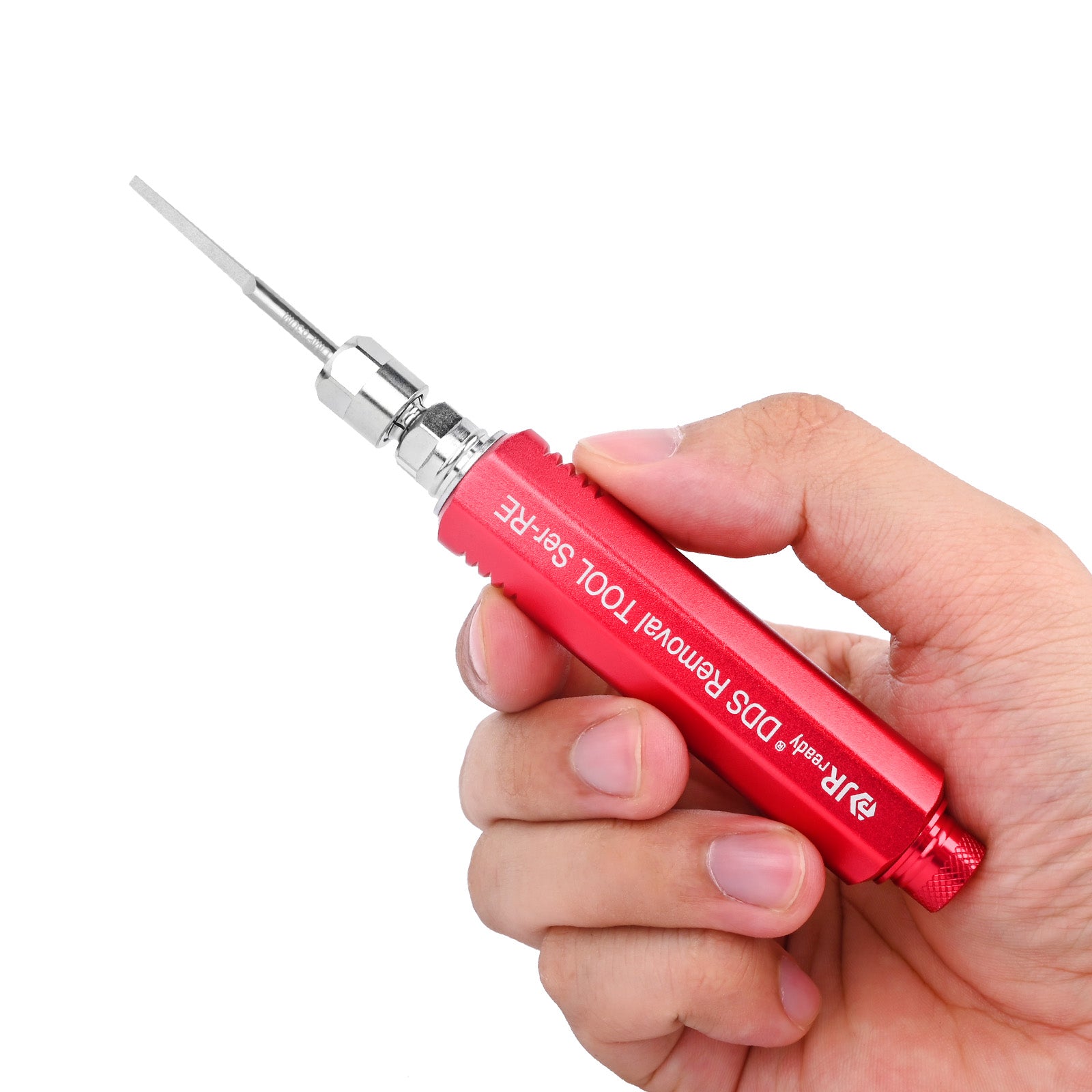

N-DA-DMP630M: Suitable for the extraction of large-sized single-tab terminals in Delphi Metri-Pack 280, 480, 630, and 800 series connectors. Replacement for JRDDS-DMP630M-01, JRDDS-DMP630M-03, and JRDDS-DMP630M-10. Compatible with JRready JRDDS series handles.
N-DA-DMP280M: Suitable for the extraction of small-sized single-tab terminals in Delphi Metri-Pack 150/280/630 series connectors. Replacement for JRDDS-DMP280M-01, JRDDS-DMP280M-03, and JRDDS-DMP280M-10. Compatible with JRready DA and JRDDS series handles.
N-DA-V02M: Applicable to various small single-tab terminals or internal tab terminals, including TE Dynamic 3000 Series, PORSCHE 443906232 DJ7023A-3.5-21, MCON Interconnection System, MQS 1.2, NECTOR S Power Triple Lock, KOSTAL ABS connectors, BOSCH MATRIX 12, AMP Tyco JT, AMP Tyco ST, and Deutsch DT connectors. Replacement for JRDDS-V02M-01, JRDDS-V02M-03, and JRDDS-V02M-10. Compatible with JRready JRDDS series handles.

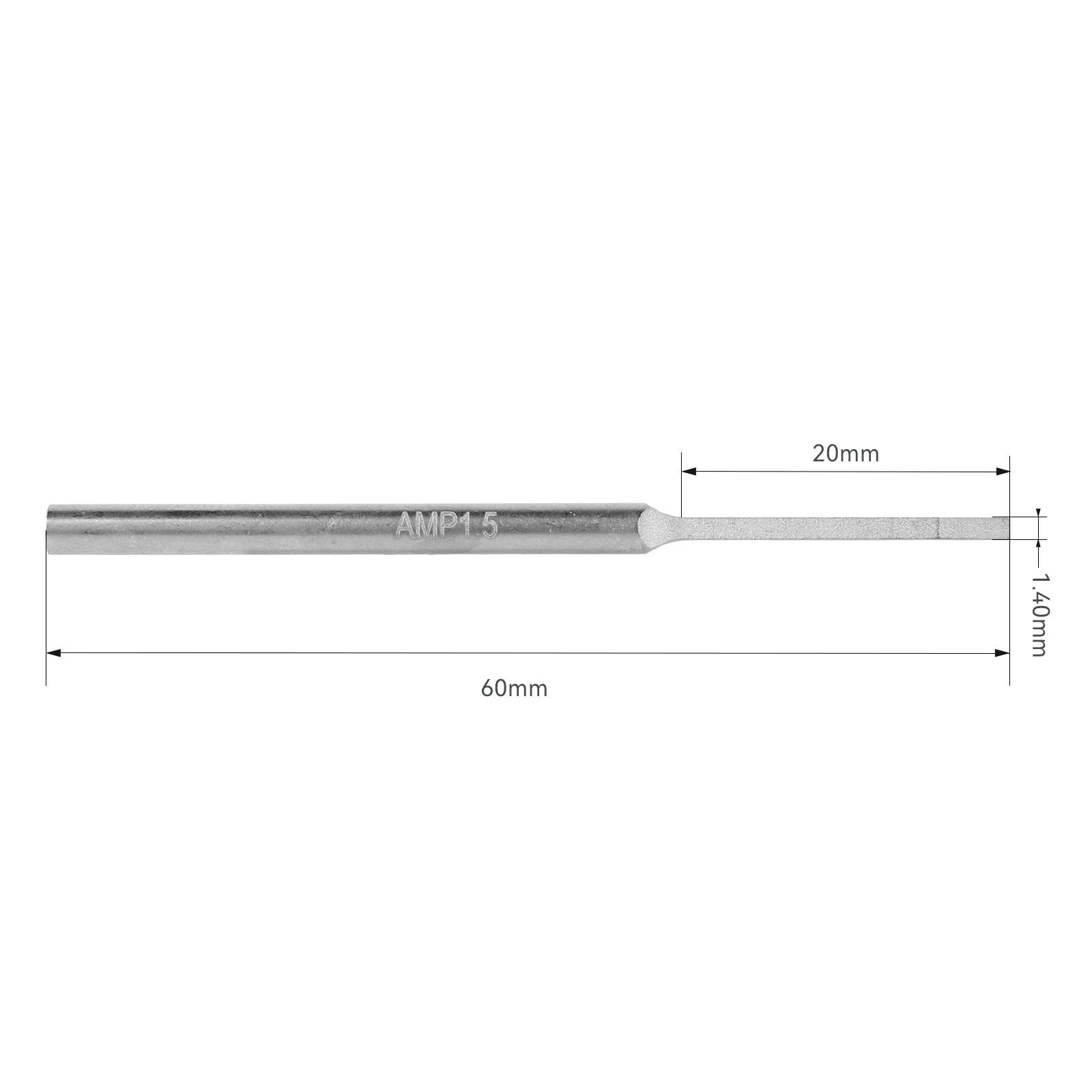

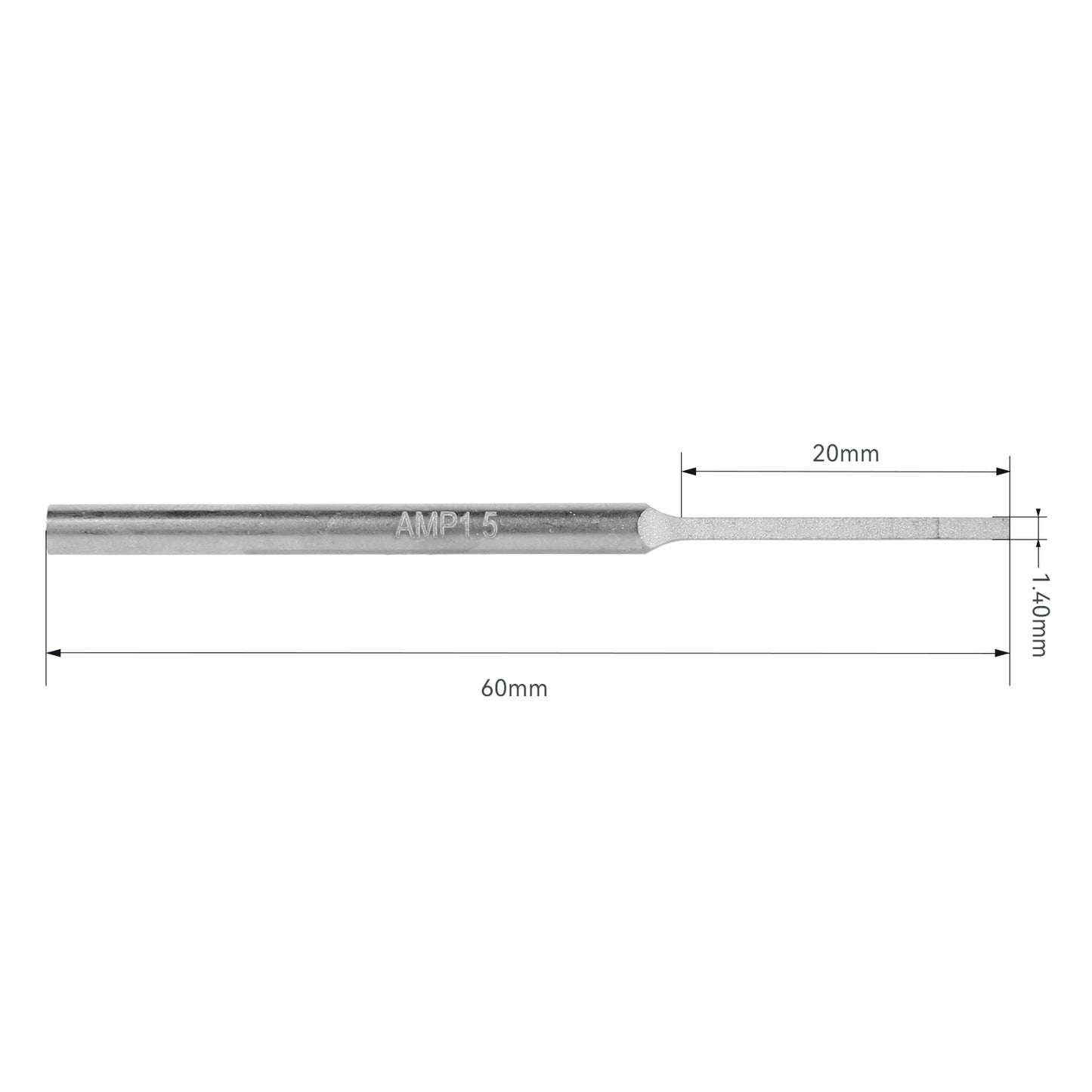

N-DA-AMP1.5: Suitable for JRready Superseal 1.5 series male and female terminals, AMP SUPERSEAL 1.5 series connectors, and various large single-tab terminals or internal tab terminals. Replacement for JRDDS-AMP1.5-01, JRDDS-AMP1.5-03, and JRDDS-AMP1.5-10. Compatible with JRready JRDDS series handles.
N-DA-RT1H: Designed for extraction of green wedge locks in Deutsch DT series pin connector housings. Replacement for JRDDS-RT1H-01, JRDDS-RT1H-03, and JRDDS-RT1H-10. Compatible with JRready JRDDS series handles.
N-DA-RT1S: Suitable for removal of terminals and wedge locks in Deutsch DT, DTM, and DTP series connectors. Replacement for JRDDS-RT1S-01, JRDDS-RT1S-03, and JRDDS-RT1S-10. Compatible with JRready DA and JRDDS series handles.

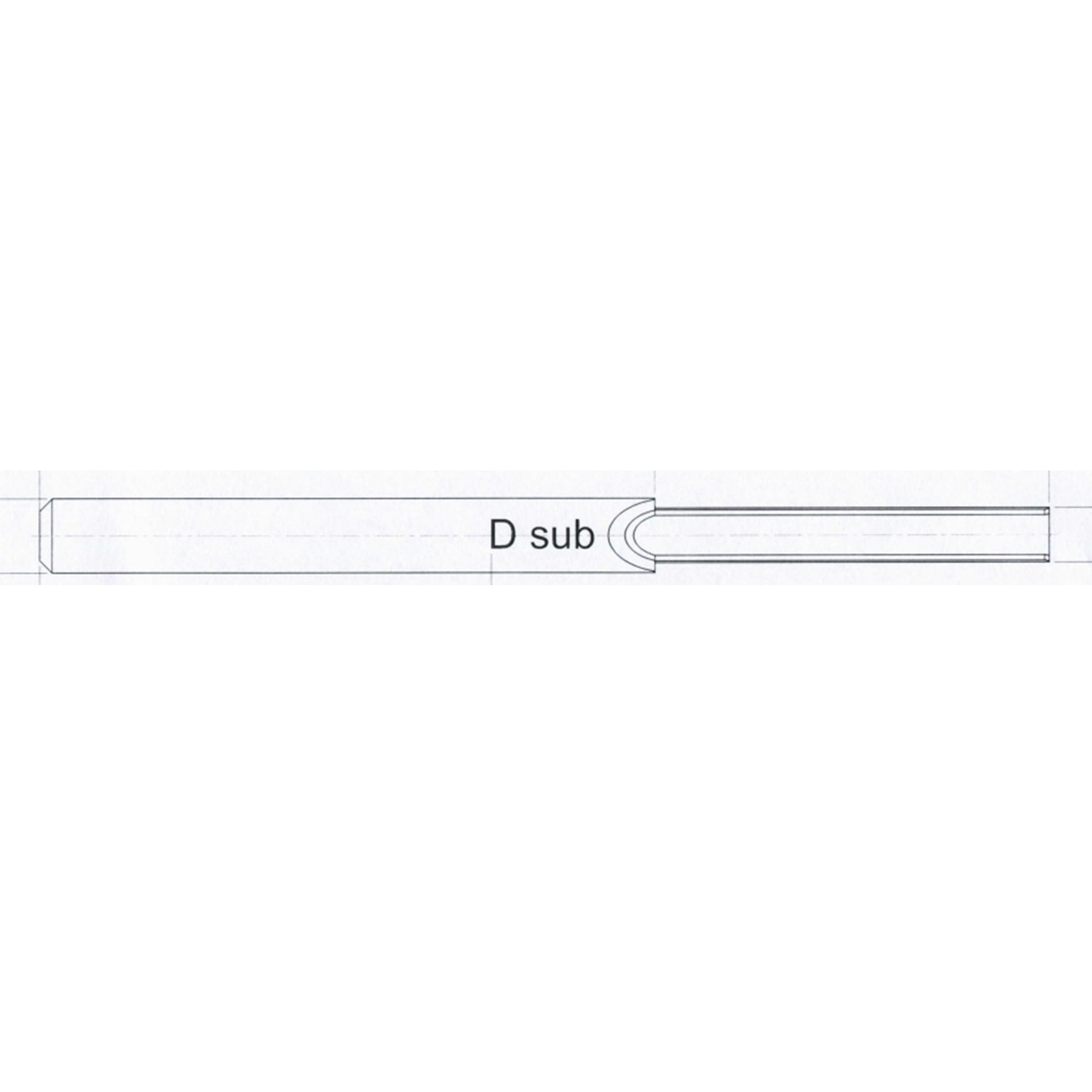

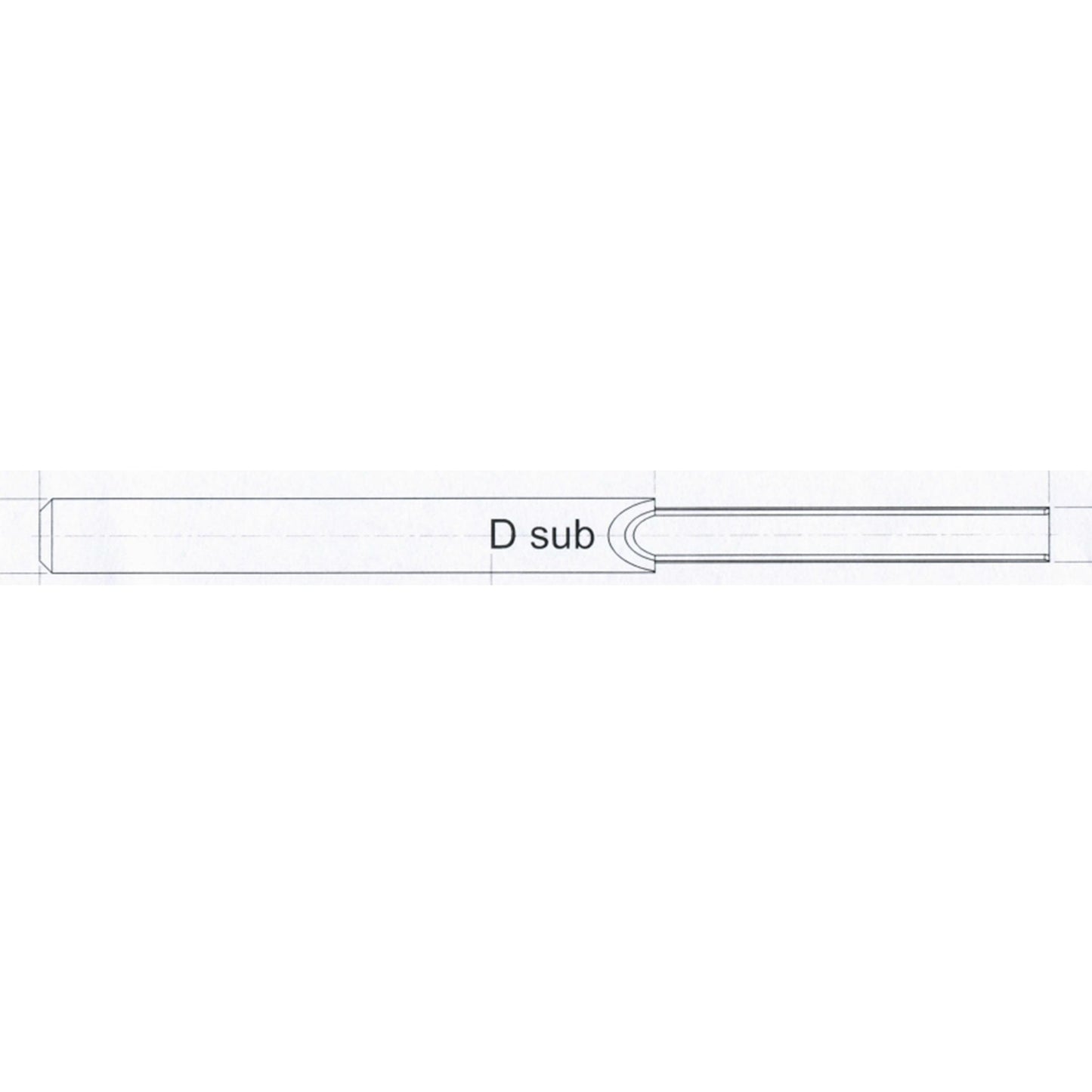

JR/DDS-D sub-010-001: Suitable for JRready DB9 series 5A terminals, Harting Han-D sub series 5A terminals, Weidmüller D-sub series 5A terminals, and TE D-sub series 5A terminals. Replacement for JRDDS-D sub-01 and JRDDS-D sub-03. Compatible with JRready JRDDS series handles.

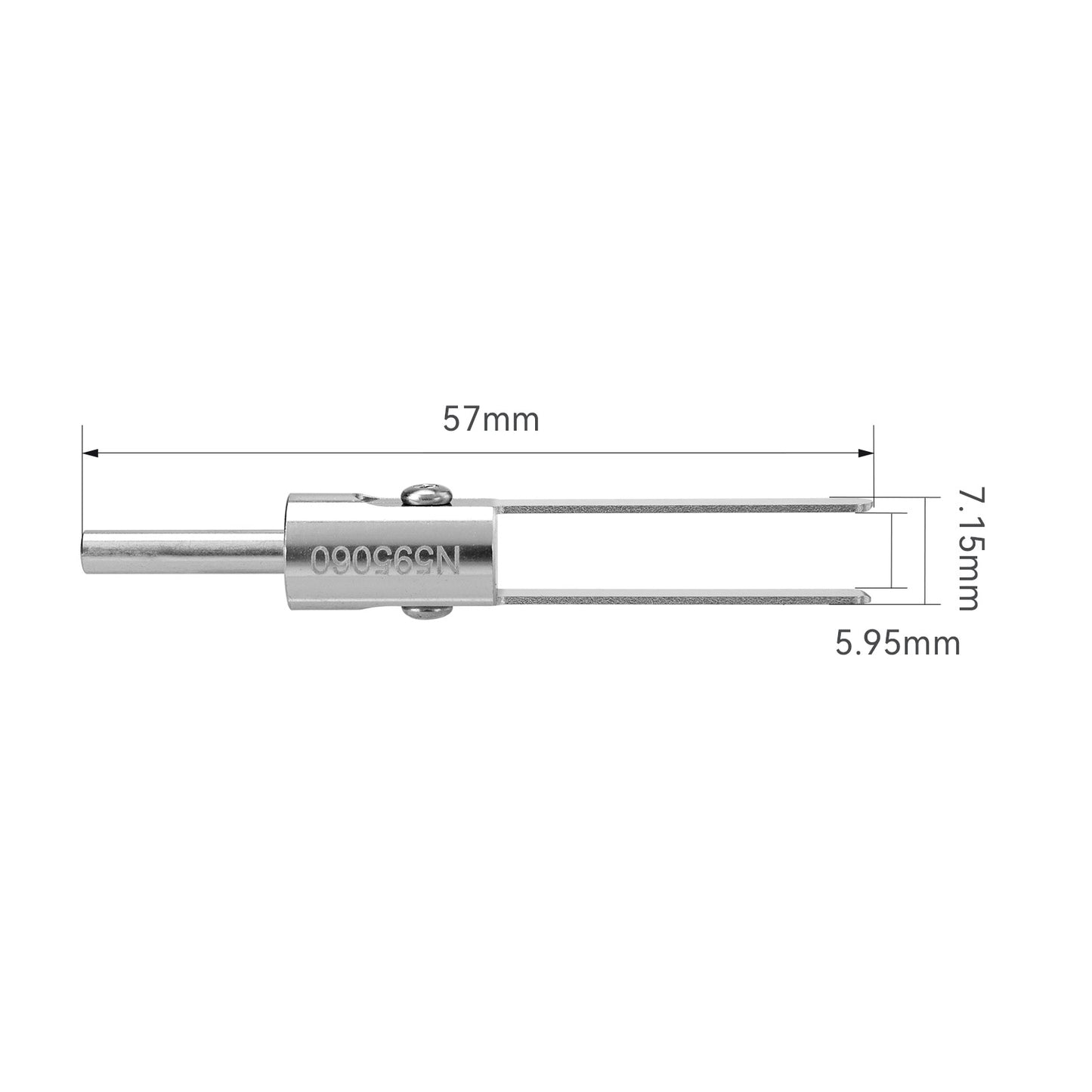

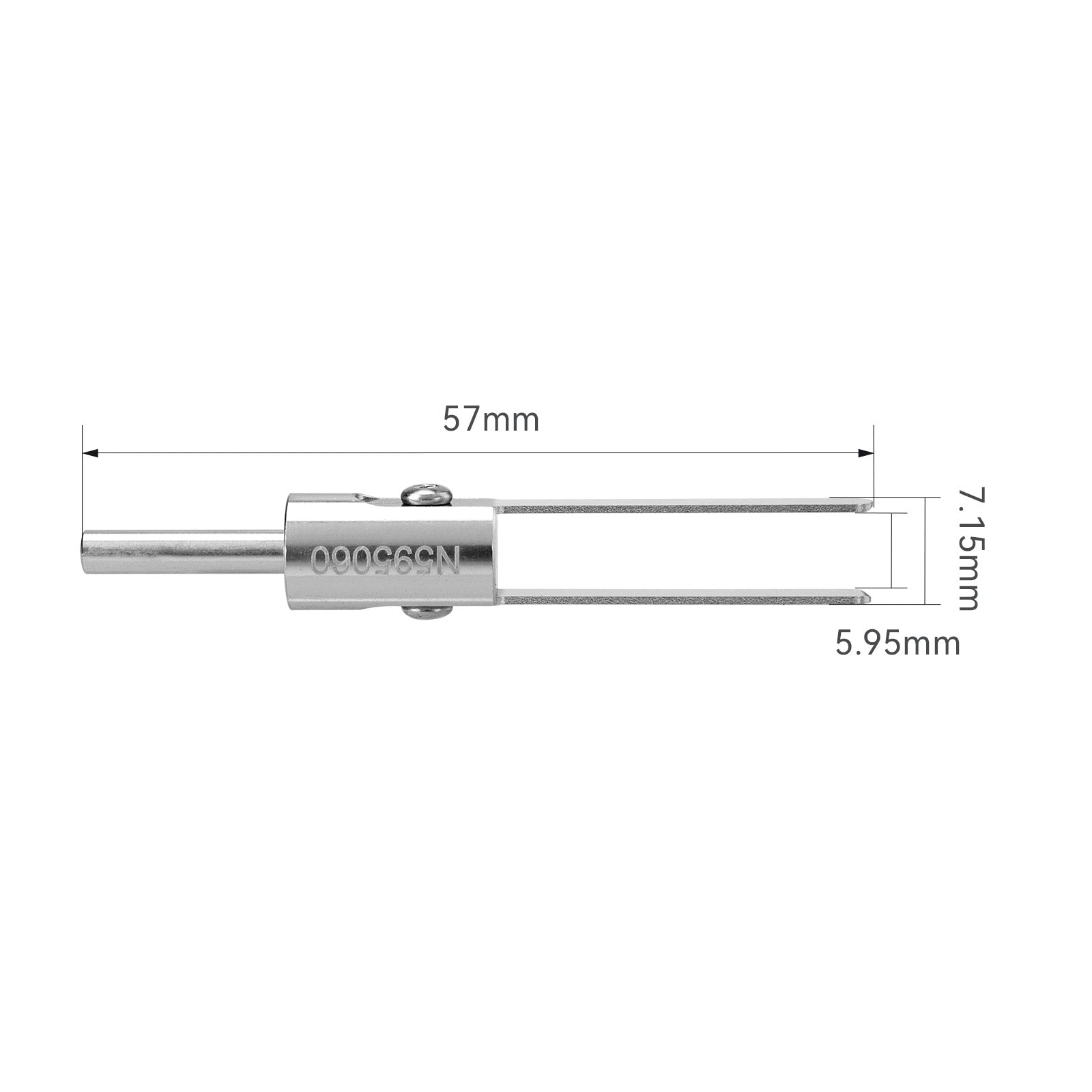

JR/JRconDRK-N595060-010: Suitable for TE AMP and CPC series connectors, including connector 206425 and terminals 66253, 66254, 66255, and 66256. Replacement for JRDDS-N595060-01, JRDDS-N595060-03, and JRDDS-N595060-10. Compatible with JRready DA and JRDDS series handles.

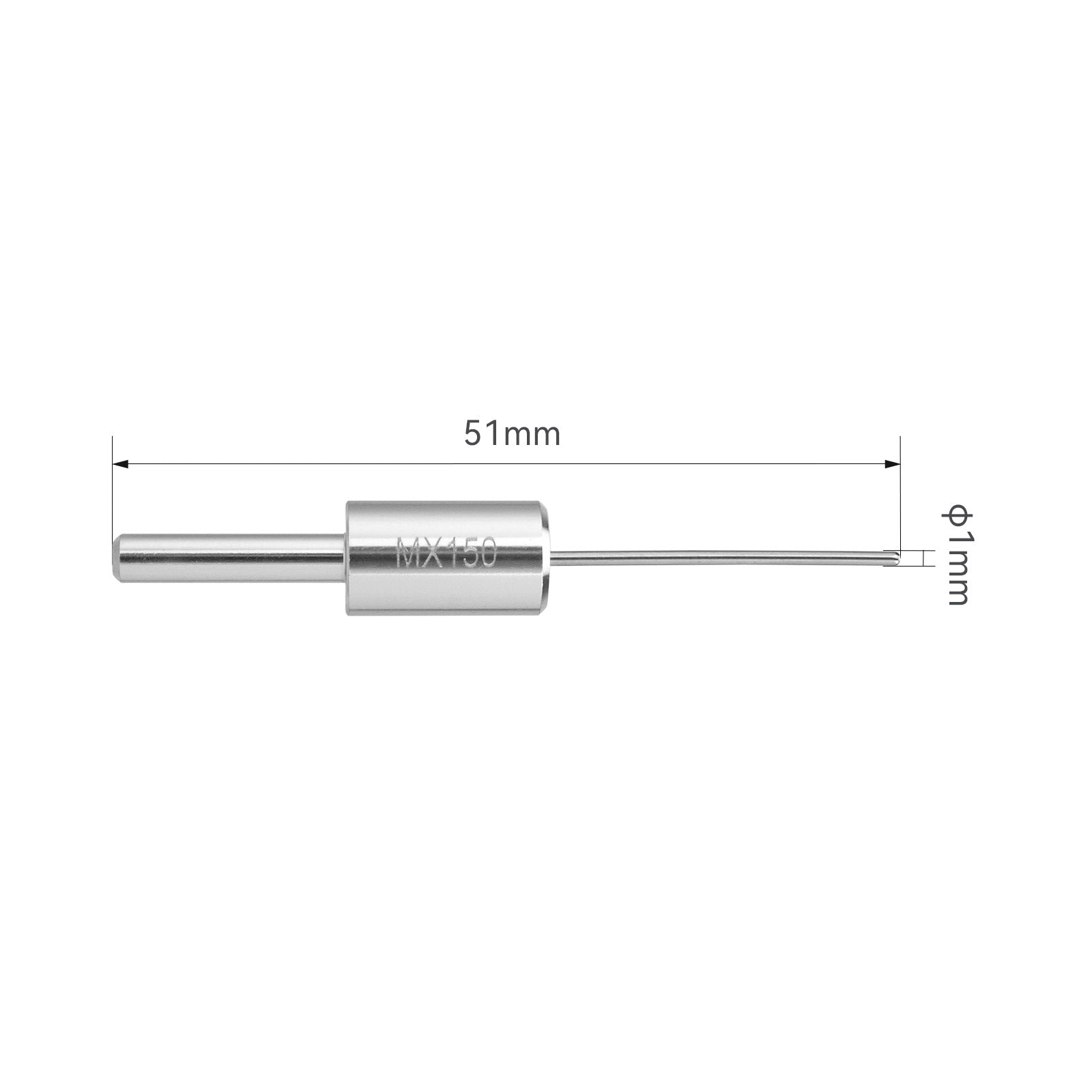

JR/JRconDRK-MX150-010: Suitable for Molex MX150L, MX150, PT bulb sockets, iGrid, SPOX, and motor connection terminals, including DJ7121Y-1-11/21 and DJ7084A-1.2-11/21 terminals. Replacement for JRDDS-MX150-01, JRDDS-MX150-03, and JRDDS-MX150-10. Compatible with JRready DA and JRDDS series handles.

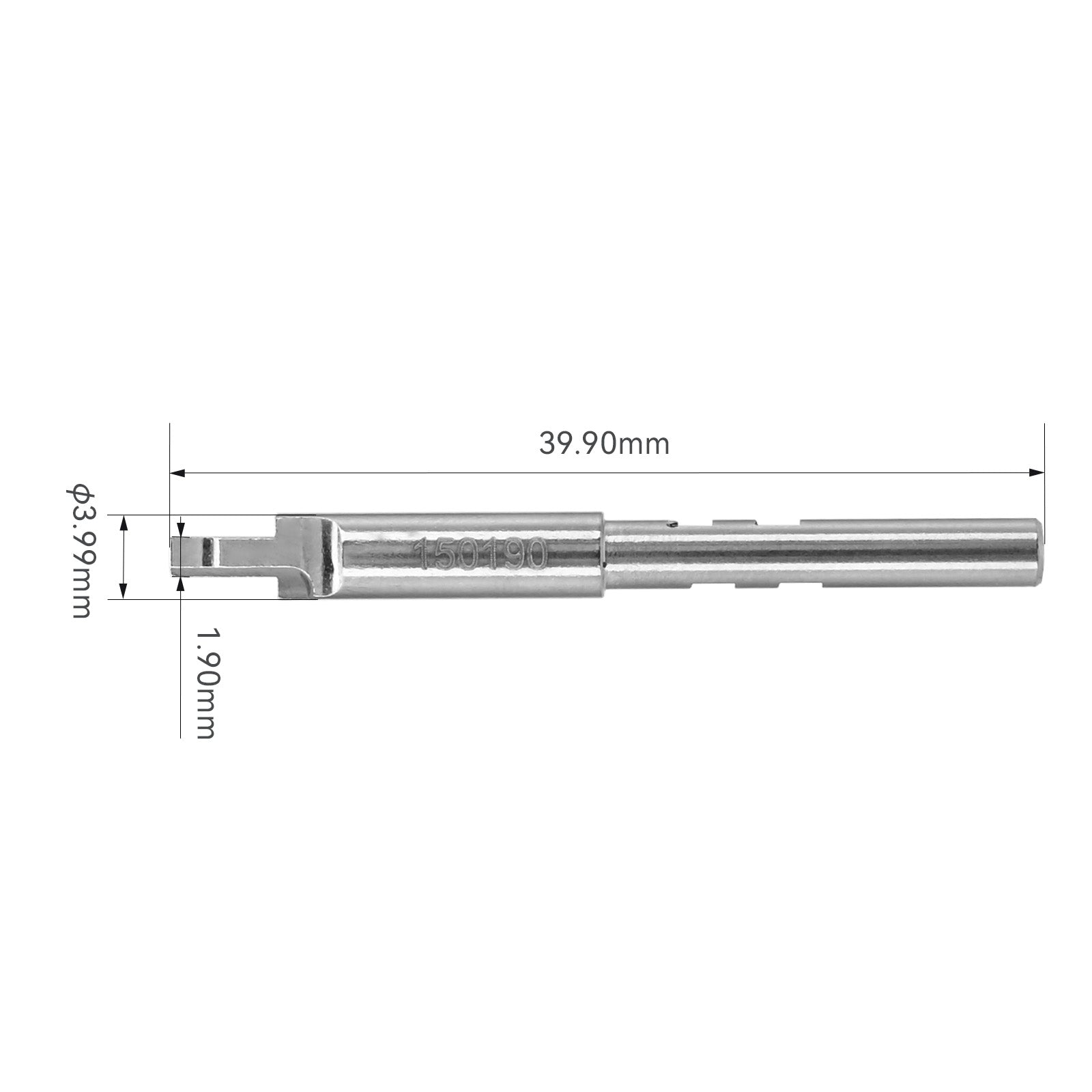

N-JRconDRK-N150190: Suitable for extracting TE MCON 1.2 terminals. Replacement for JRDDS-N150190-01, JRDDS-N150190-03, and JRDDS-N150190-10. Compatible with JRready DA and JRDDS series handles.
Please note: JRconDRK heat-sealed models do not support tip replacement, while other models should only use replacement tips with compatible pin dimensions and terminal requirements.
JRready Pin Rod Type Replacement Tips are an essential accessory for professionals working on wiring harness repair, connector maintenance, and precision electrical service, providing dependable replacement performance for demanding applications.
