JRready 3-Pin Deutsch DTM Connector Kit with #20 Solid Contacts, 16-22 AWG - Waterproof Marine, Truck, Motorcycle, Agricultural & Alternative Energy

PACKAGE LIST:

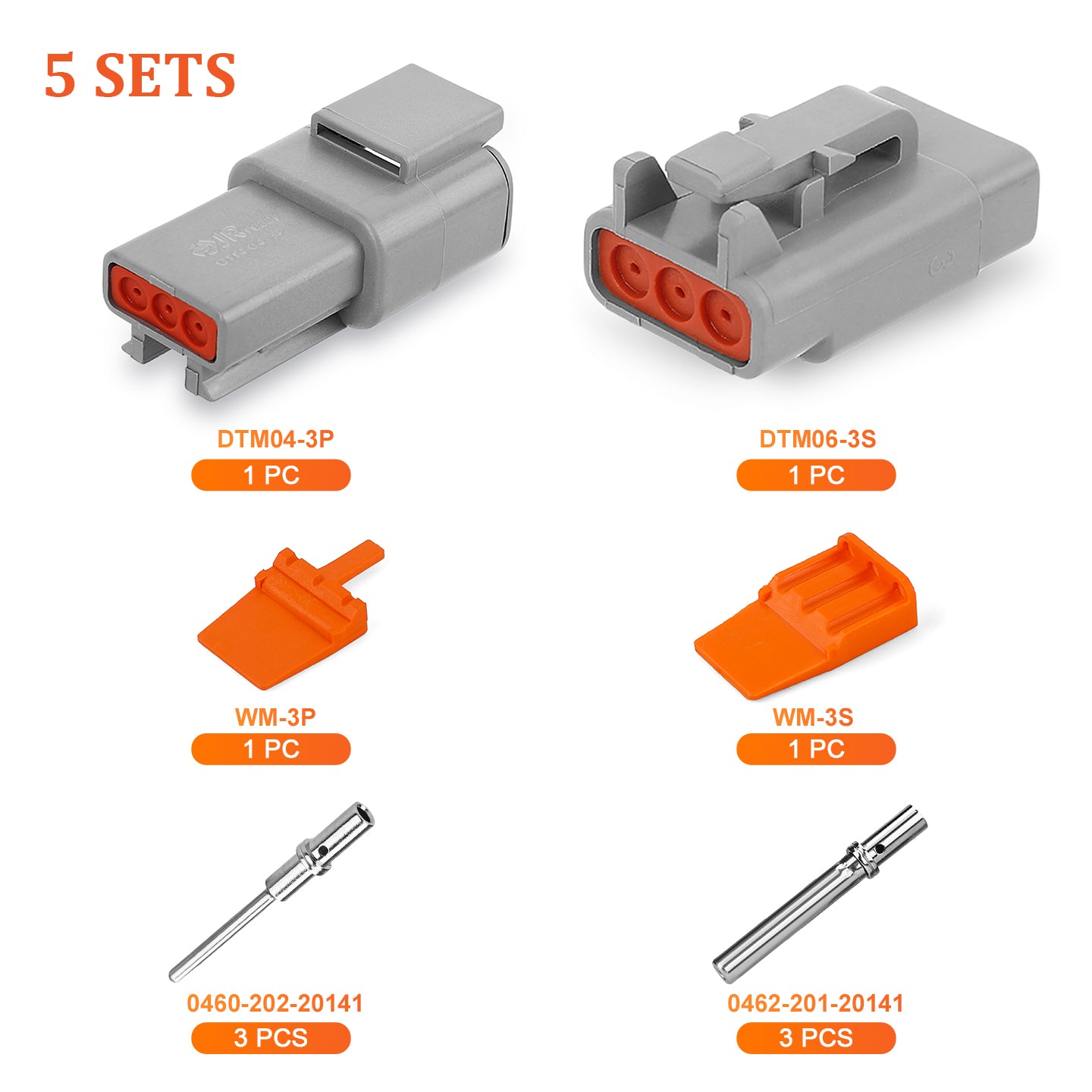

JRready DTM Series 3-Pin connector housings (1 male + 1 female) with solid contacts, 5 Sets
(WM-3P+WM-3S+DTM04-3P+DTM06-3S+0462-201-20141*3+0460-202-20141*3)*5

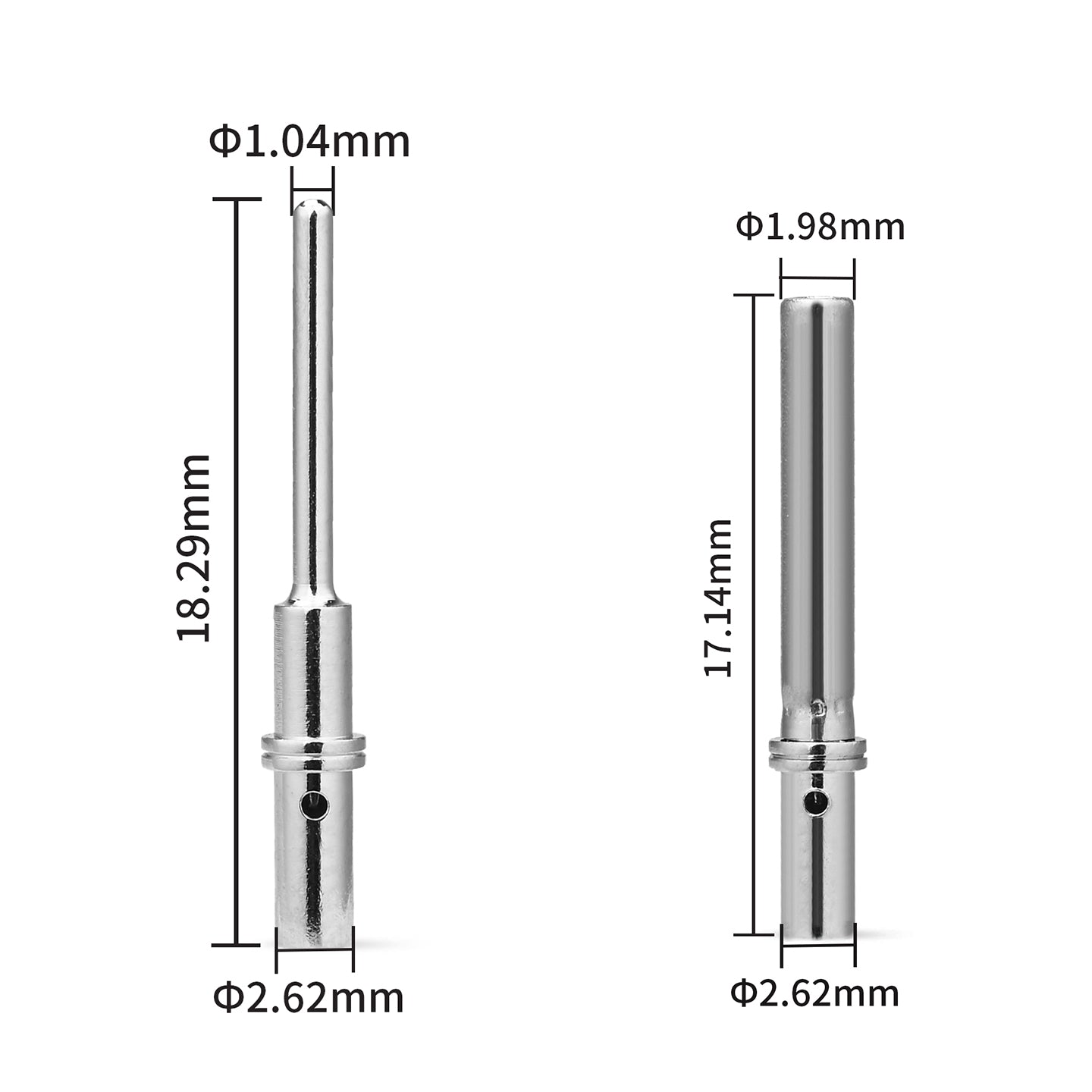

[SOLID MACHINED CONTACTS — PRECISION WHERE IT MATTERS]

Precision-turned from tin bronze with full nickel plating, the solid machined contacts in this kit hold tighter dimensional tolerances than stamped alternatives — translating directly to more consistent mating force and lower contact resistance at every connection. Rated for a minimum of 500 insertion and extraction cycles, they're built for applications where the connector gets touched more than once.

[THREE SEALED CIRCUITS, BUILT TO LAST IN THE FIELD]

IP67-rated PA66 housings with UL94V-0 flame retardancy seal all three wire entries against moisture and dust, maintaining protection across an operating range of -40°C to +125°C. Whether it's a sensor cluster on a marine vessel, a signal harness in an agricultural cab, or a control circuit under the hood, the housing holds its seal where stamped-contact kits may not be reliable enough.

[FULL NICKEL PLATING FOR CORROSION-FREE CONDUCTIVITY]

From the mating tip to the crimp barrel, every surface of these machined contacts is nickel-plated — no exposed base metal at any point. This uniform coverage prevents the localized oxidation that degrades signal integrity over time, keeping each of the three circuits rated at 7.5A / 250V AC/DC stable across 20-22AWG (0.5–0.35mm²).

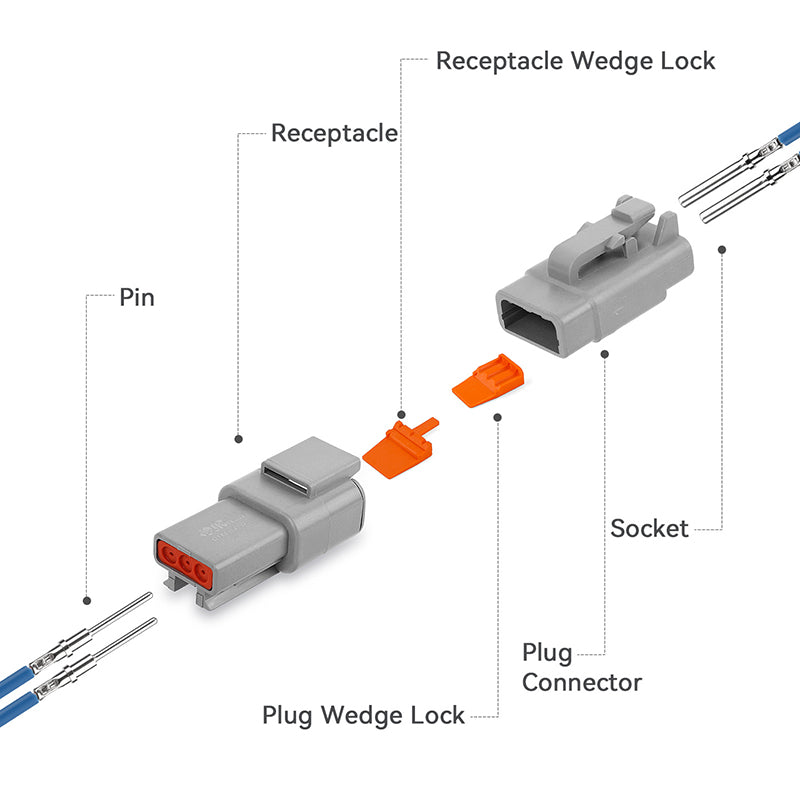

[WEDGE LOCKS HOLD THROUGH EVERY RECONNECTION]

Solid machined contacts are the choice for high-cycle wiring — and the wedge locks in this kit match that standard. One plug wedge lock and one receptacle wedge lock add mechanical secondary retention behind all three terminal positions, preventing back-out even after repeated mating and unmating. Terminal retention force exceeds 60N, keeping every circuit locked in between service intervals.

[DTM SERIES COMPATIBLE, HDP20 AND HD30 READY]

These machined contacts fit DTM series housings and extend to HDP20, HD30, and DRC series connectors, covering the range of connector families most commonly encountered in heavy-duty wiring work. A practical 3-pin solution for motorcycles, trucks, marine installations, and alternative energy systems where precision contacts and long service life are the deciding factors.
