JRready 4-Pin Deutsch DTM Connector Kit with #20 Solid Contacts, 16-22 AWG - Waterproof Marine, Truck, Motorcycle, Agricultural & Alternative Energy

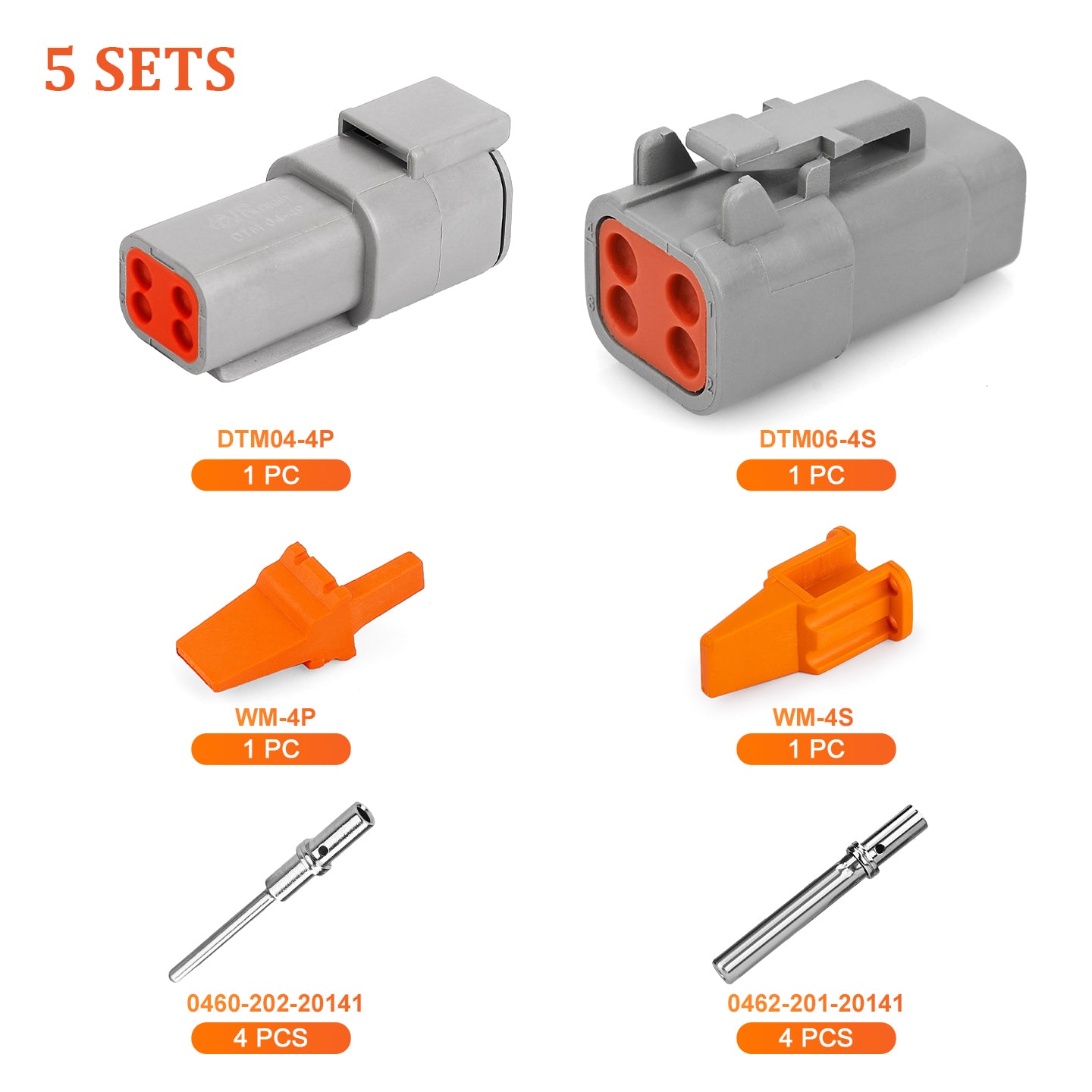

PACKAGE LIST:

JRready DTM Series 4-Pin connector housings (1 male + 1 female) with solid contacts, 5 Sets
(WM-4P+WM-4S+DTM04-4P+DTM06-4S+0462-201-20141*4+0460-202-20141*4)*5

[500+ MATING CYCLES — BUILT FOR HIGH-FREQUENCY USE]

When a connector gets disconnected and reconnected as part of regular maintenance or diagnostics, the contact type makes all the difference. The solid machined contacts in this kit are rated for a minimum of 500 insertion and extraction cycles — a standard that stamped terminals can't meet — keeping each of the four circuits performing reliably long after a stamped alternative would have degraded.

[WATERPROOF HOUSING FOR SIGNAL-CRITICAL APPLICATIONS]

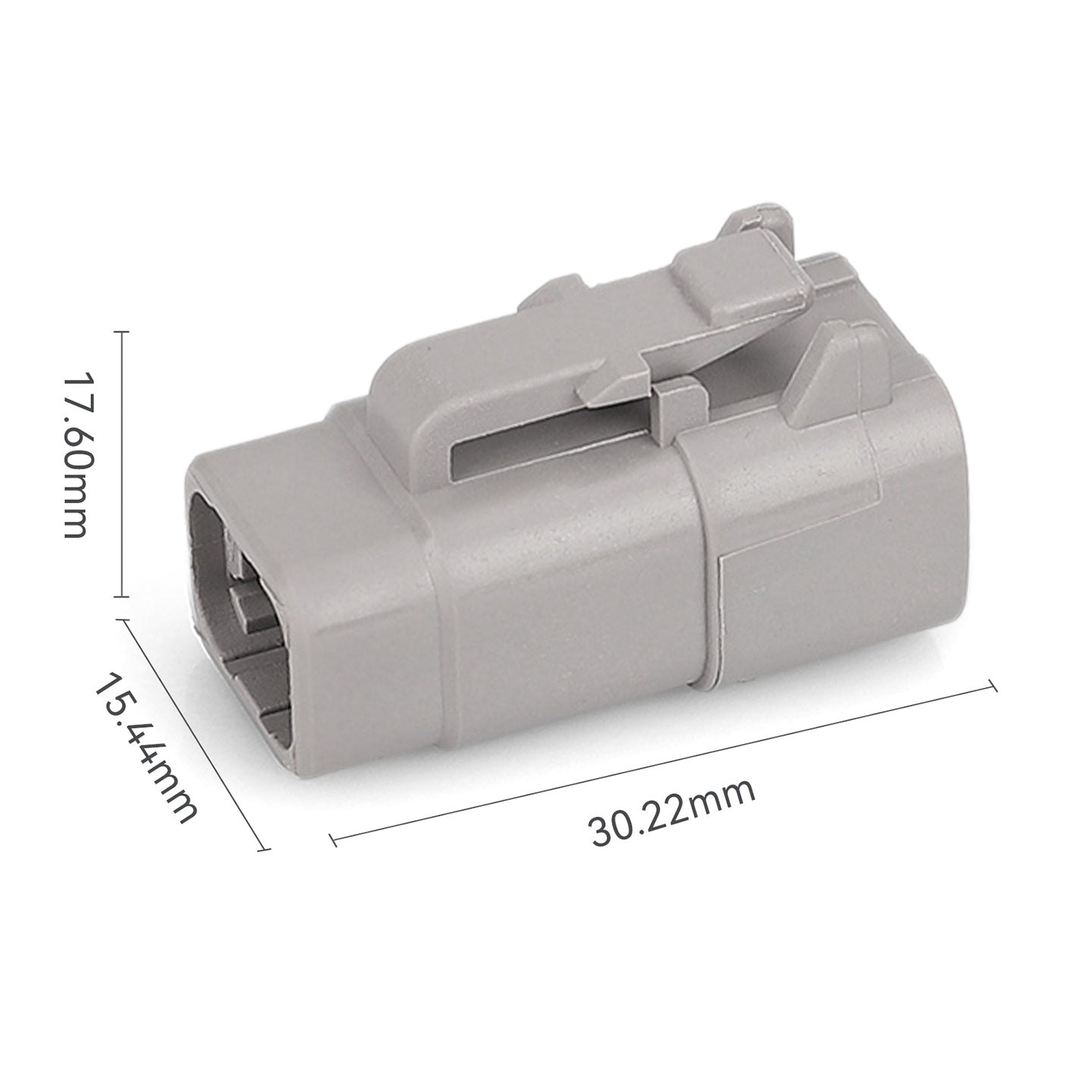

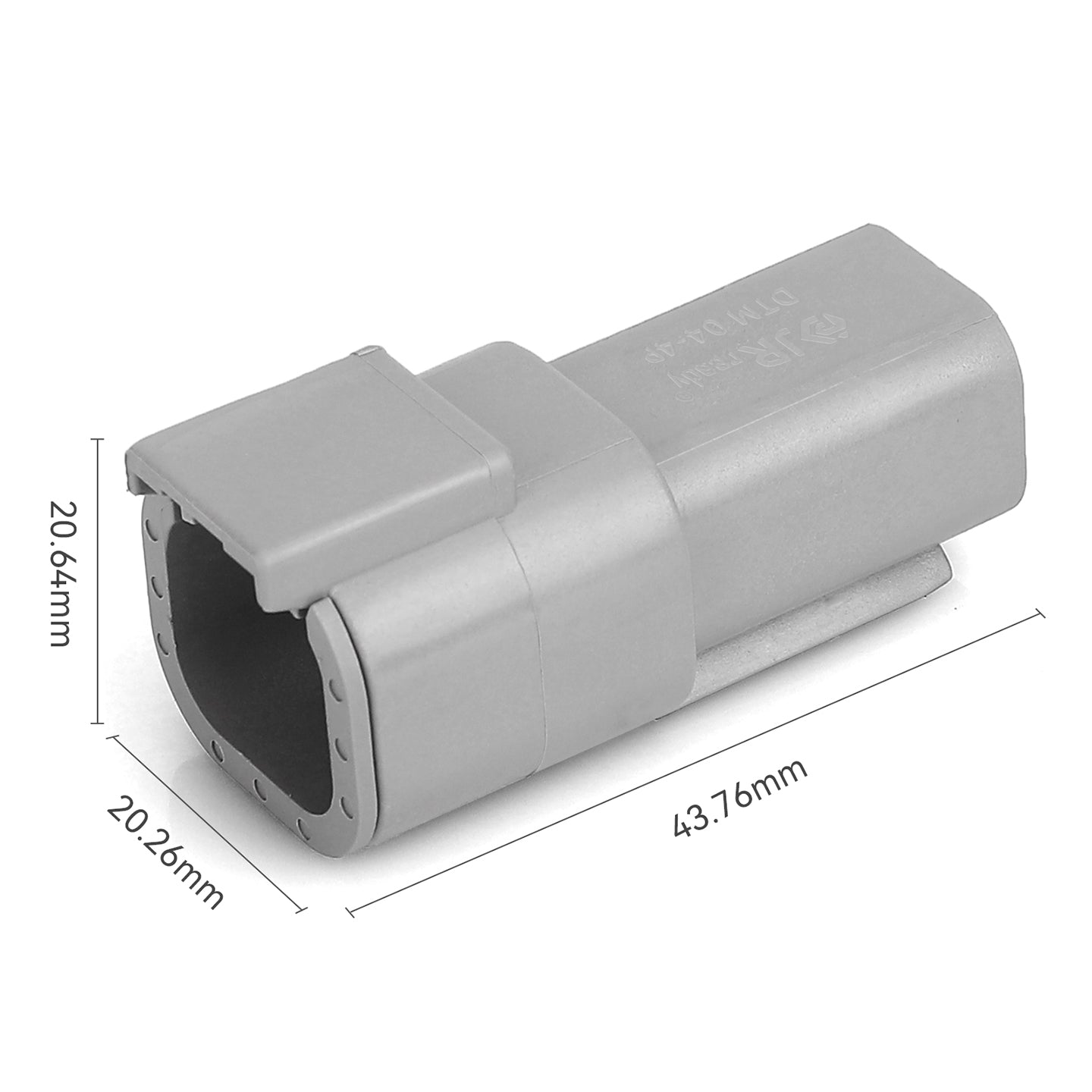

Solid machined contacts are the preferred choice for data signals and precision control circuits, and the IP67-rated PA66 housings in this kit back that up. UL94V-0 flame retardancy and an operating range of -40°C to +125°C ensure the housing holds its integrity whether the connector is buried in an engine bay, exposed to coastal salt air, or cycling through temperature extremes in agricultural equipment.

[UNIFORM NICKEL PLATING — NO EXPOSED BASE METAL]

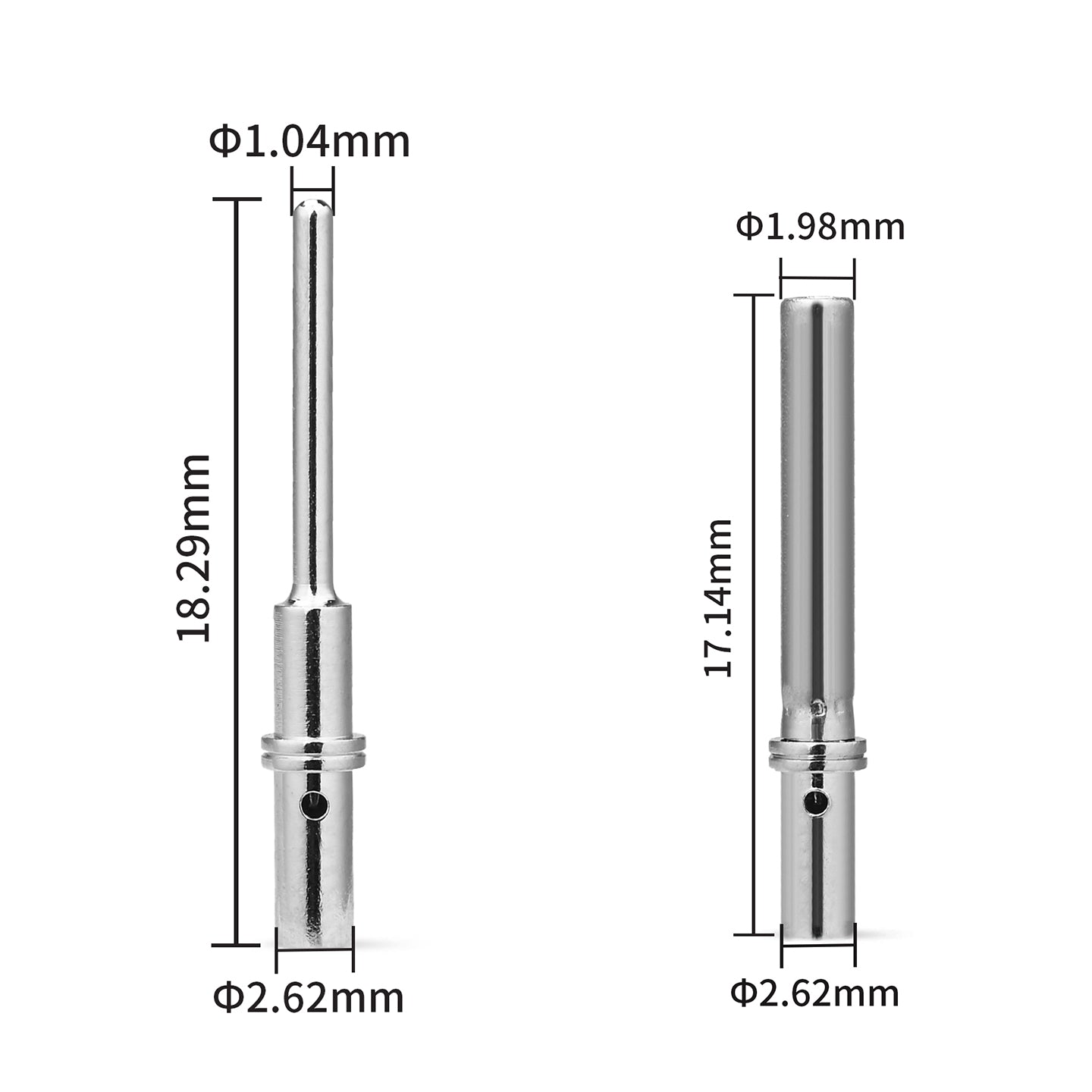

Full nickel plating from tip to barrel eliminates the weak points that appear where partial plating ends. The result is a contact surface that resists oxidation uniformly across the entire mating zone, maintaining stable conductivity at 7.5A / 250V AC/DC across 20-22AWG (0.5–0.35mm²) — even in the humid or chemically aggressive environments where partial-plated contacts fail first.

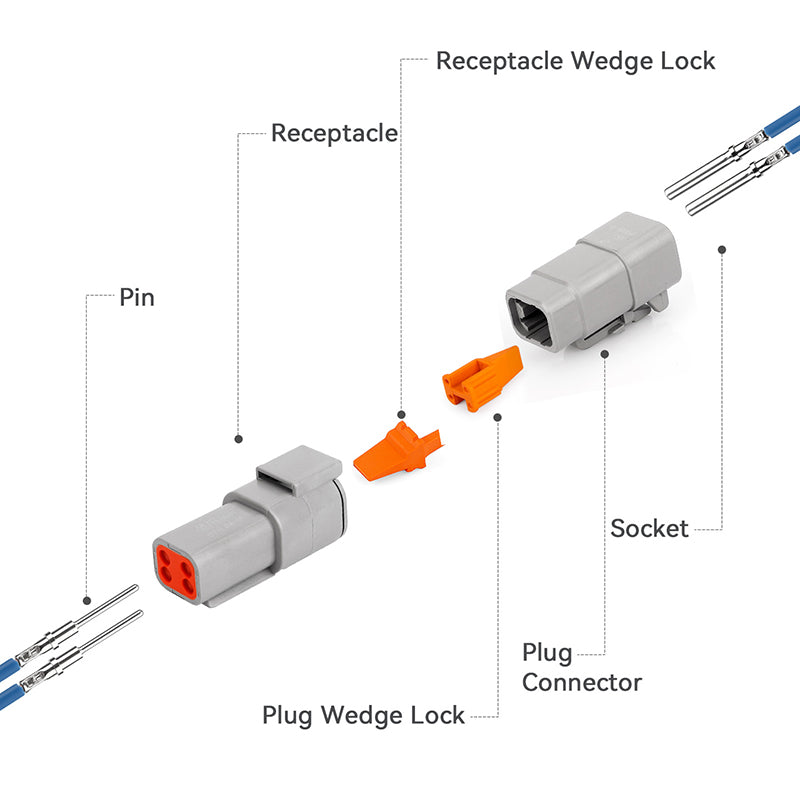

[FOUR-POSITION WEDGE LOCK RETENTION]

Four circuits in one connector means four terminal positions that need to stay put. The wedge locks included in each set engage all four positions simultaneously, adding mechanical back-out prevention independent of each terminal's primary locking tab. With retention force exceeding 60N per position, the assembly holds firm through vibration, cable pull, and the repeated mating cycles these contacts are designed for.

[FITS DTM SERIES AND EXTENDS TO HDP20, HD30, DRC]

Manufactured to DTM series mating specifications, these machined contacts also cross-reference to HDP20, HD30, and DRC series connectors — giving you flexibility across the connector families most commonly used in heavy-duty wiring. A solid 4-pin choice for trucks, motorcycles, marine installations, and alternative energy systems where contact precision and long service life are the priority.
