JRready 6-Pin Deutsch DTM Connector Kit with #20 Solid Contacts, 16-22 AWG - Waterproof Marine, Truck, Motorcycle, Agricultural & Alternative Energy

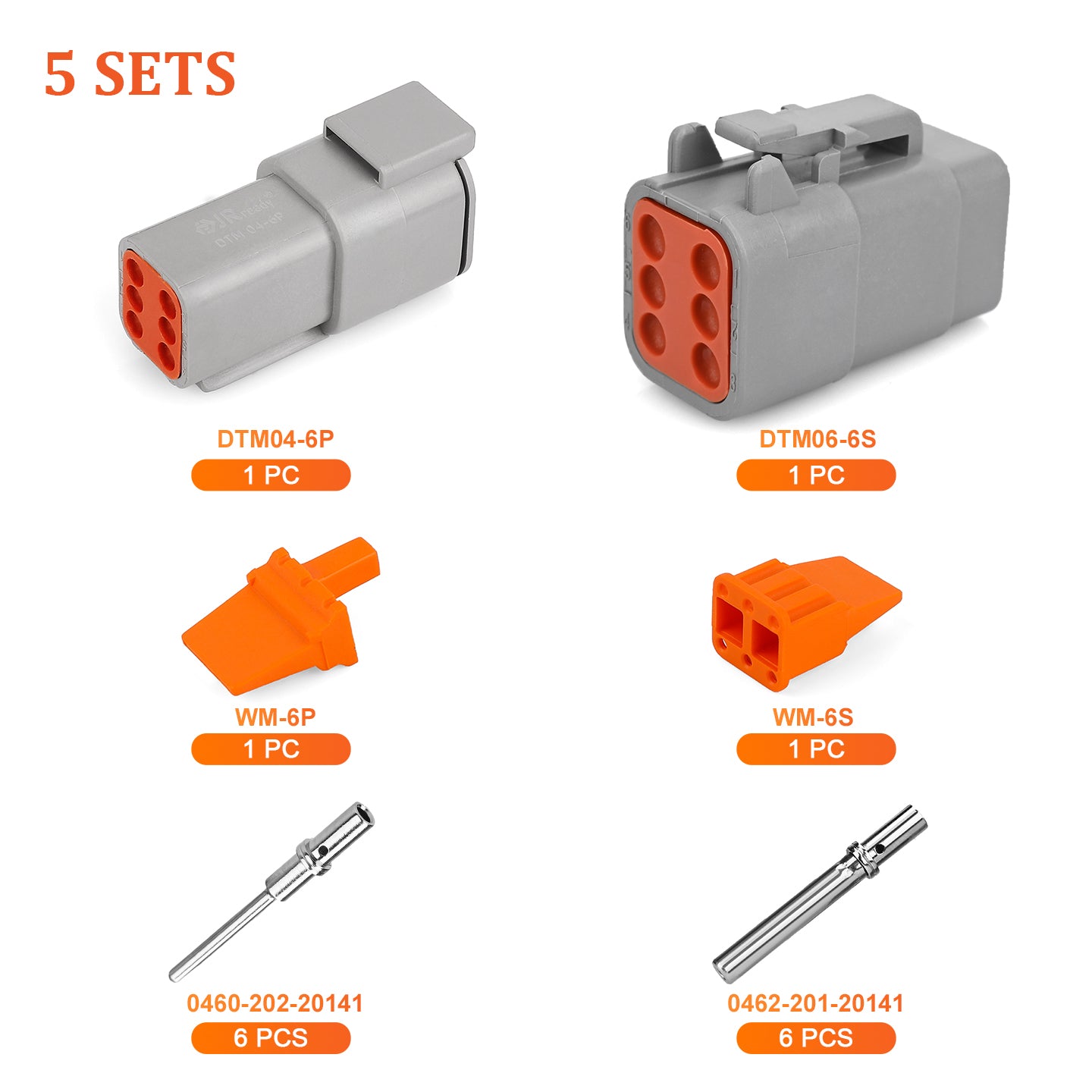

PACKAGE LIST:

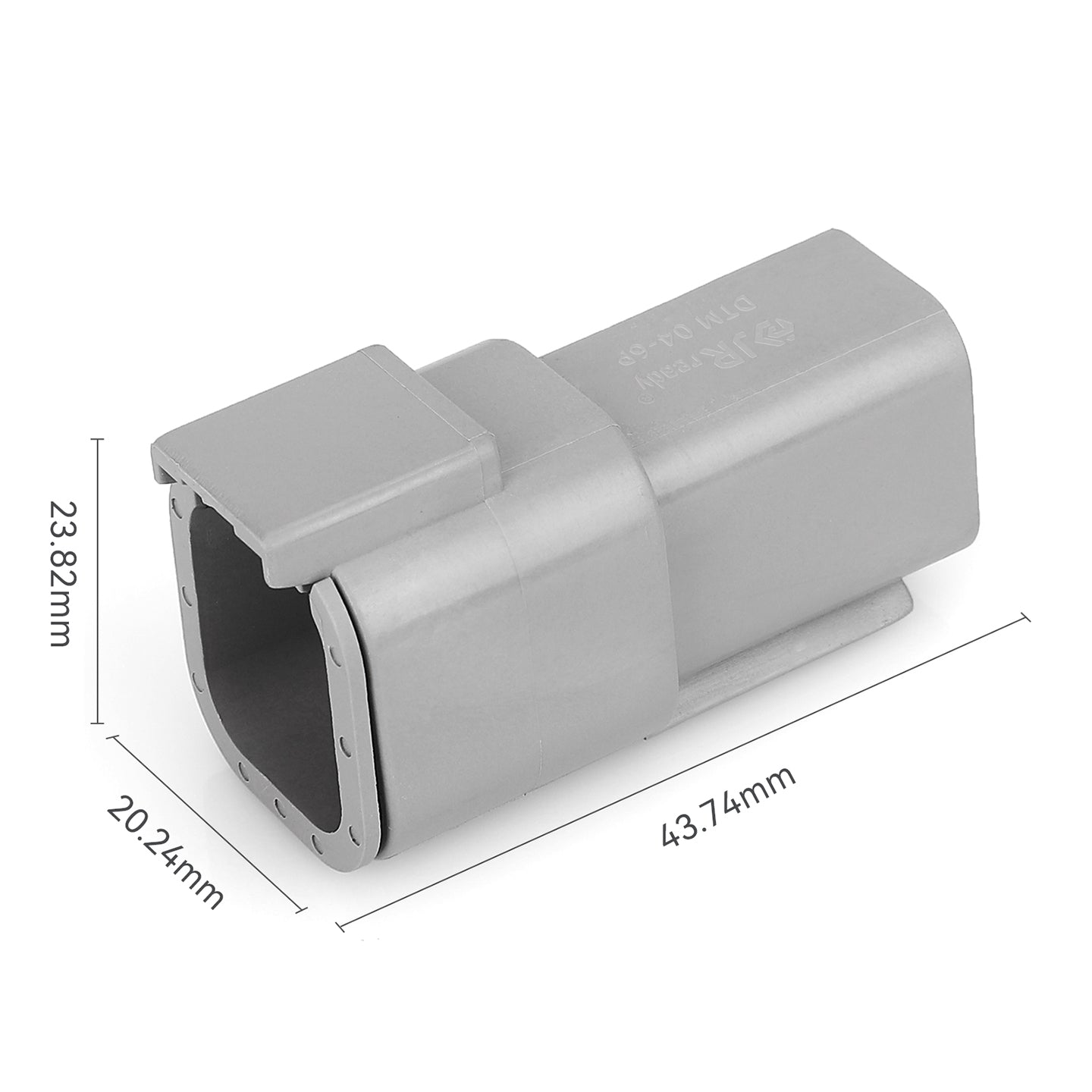

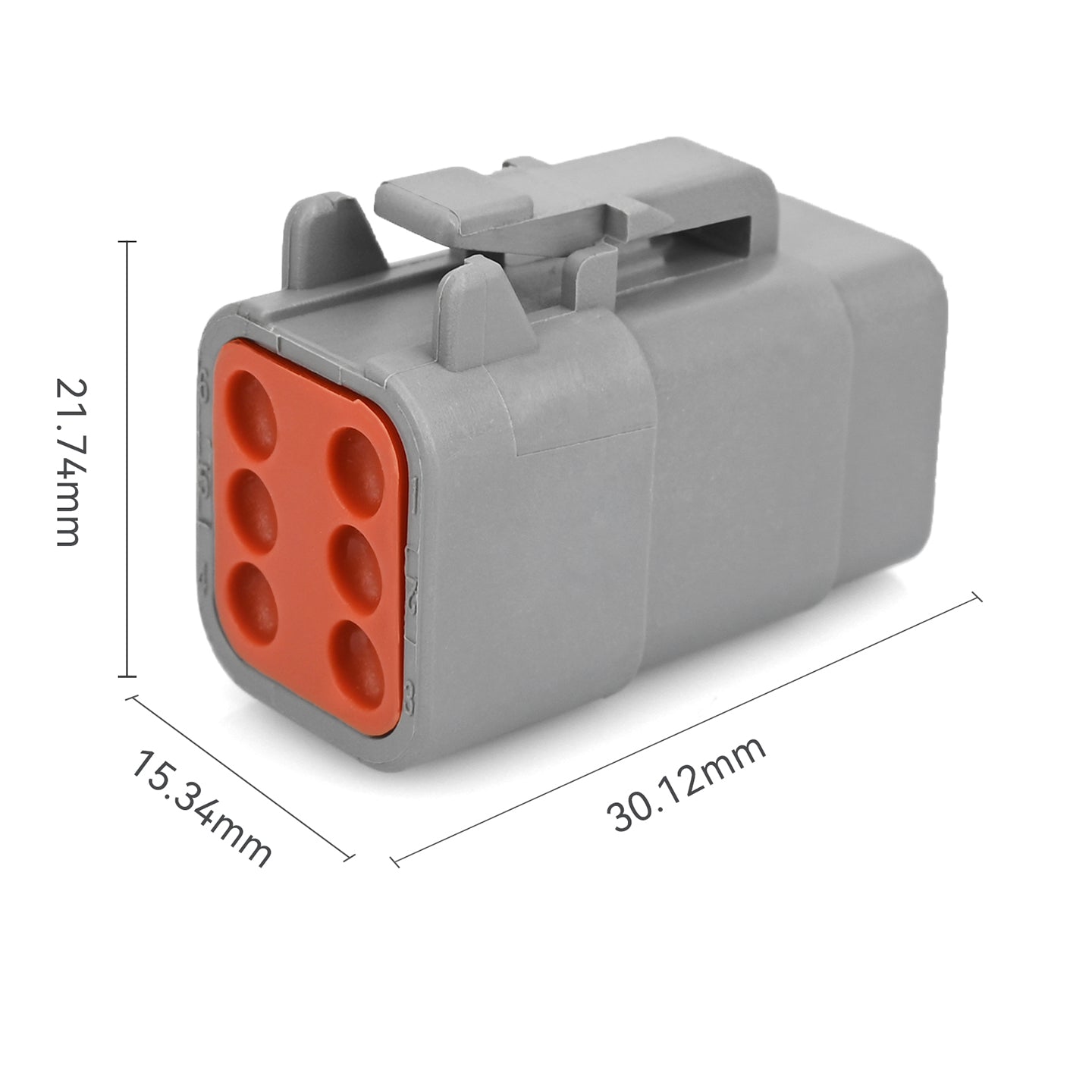

JRready DTM Series 6-Pin connector housings (1 male + 1 female) with solid contacts, 5 Sets
(WM-6P+WM-6S+DTM04-6P+DTM06-6S+0462-201-20141*6+0460-202-20141*6)*5

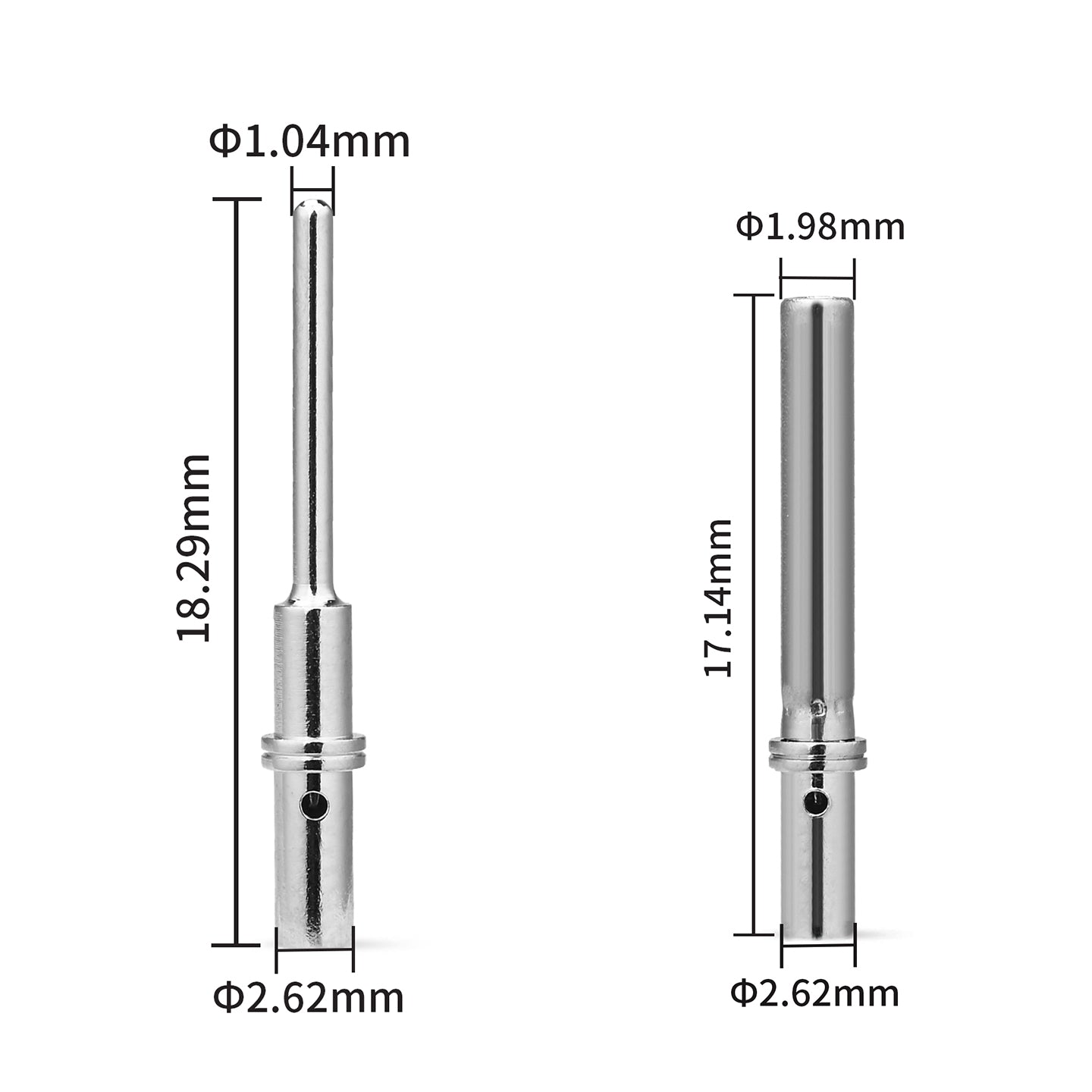

[MACHINED CONTACTS RATED FOR 500+ CYCLES]

Six circuits demand contacts that hold up — not just on the first mate, but across hundreds of service intervals. Precision-turned from tin bronze with full nickel plating, these solid machined contacts are rated for a minimum of 500 insertion and extraction cycles, maintaining consistent mating force and contact resistance long after stamped alternatives would have worn down.

[SIX INDEPENDENT CIRCUITS, ONE SEALED ASSEMBLY]

Routing six separate signal or power lines through a single IP67-rated connector pair simplifies harness layout and cuts down on potential failure points. The PA66 housings with UL94V-0 flame retardancy seal every wire entry against moisture and contaminants across a -40°C to +125°C operating range — useful anywhere a multi-circuit connection needs to survive the environment around it.

[CONSISTENT CONDUCTIVITY ACROSS EVERY POSITION]

Full nickel plating covers each machined contact end to end, leaving no base metal exposed at any point in the mating zone. With six contacts per connector each rated 7.5A / 250V AC/DC across 20-22AWG (0.5–0.35mm²), the kit delivers the same stable, low-resistance connection at position one as it does at position six — critical for multi-sensor or multi-channel control applications.

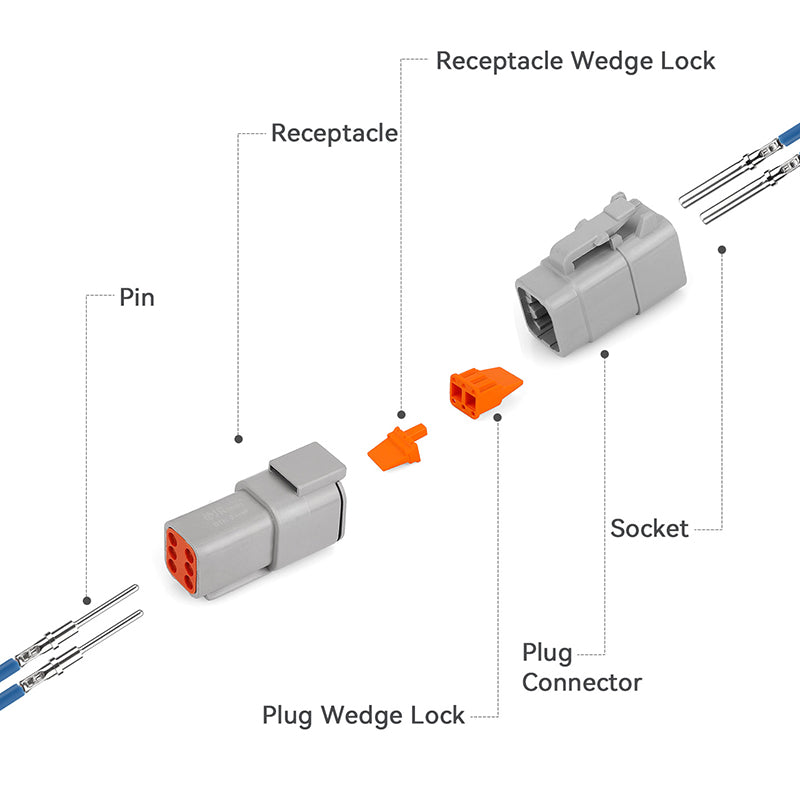

[WEDGE LOCKS ENGAGE ALL SIX TERMINALS AT ONCE]

One plug wedge lock and one receptacle wedge lock drop in behind all six terminal positions simultaneously, adding mechanical secondary retention that doesn't depend on the terminal's primary tab alone. With retention force exceeding 60N per position, this assembly stays locked through vibration, cable tension, and the repeated mating cycles that solid contacts are built to handle.

[BROAD SERIES COMPATIBILITY FOR EXISTING WIRING]

These machined contacts fit DTM series housings and extend to HDP20, HD30, and DRC series connectors, covering the full range of connector families most commonly found in heavy-duty automotive, marine, and agricultural wiring. Drop this 6-pin kit into an existing harness without rewiring — a practical upgrade wherever long service life and contact precision are the deciding factors.
