JRready 8-Pin Deutsch DTM Connector Kit with #20 Solid Contacts, 16-22 AWG - Waterproof Marine, Truck, Motorcycle, Agricultural & Alternative Energy

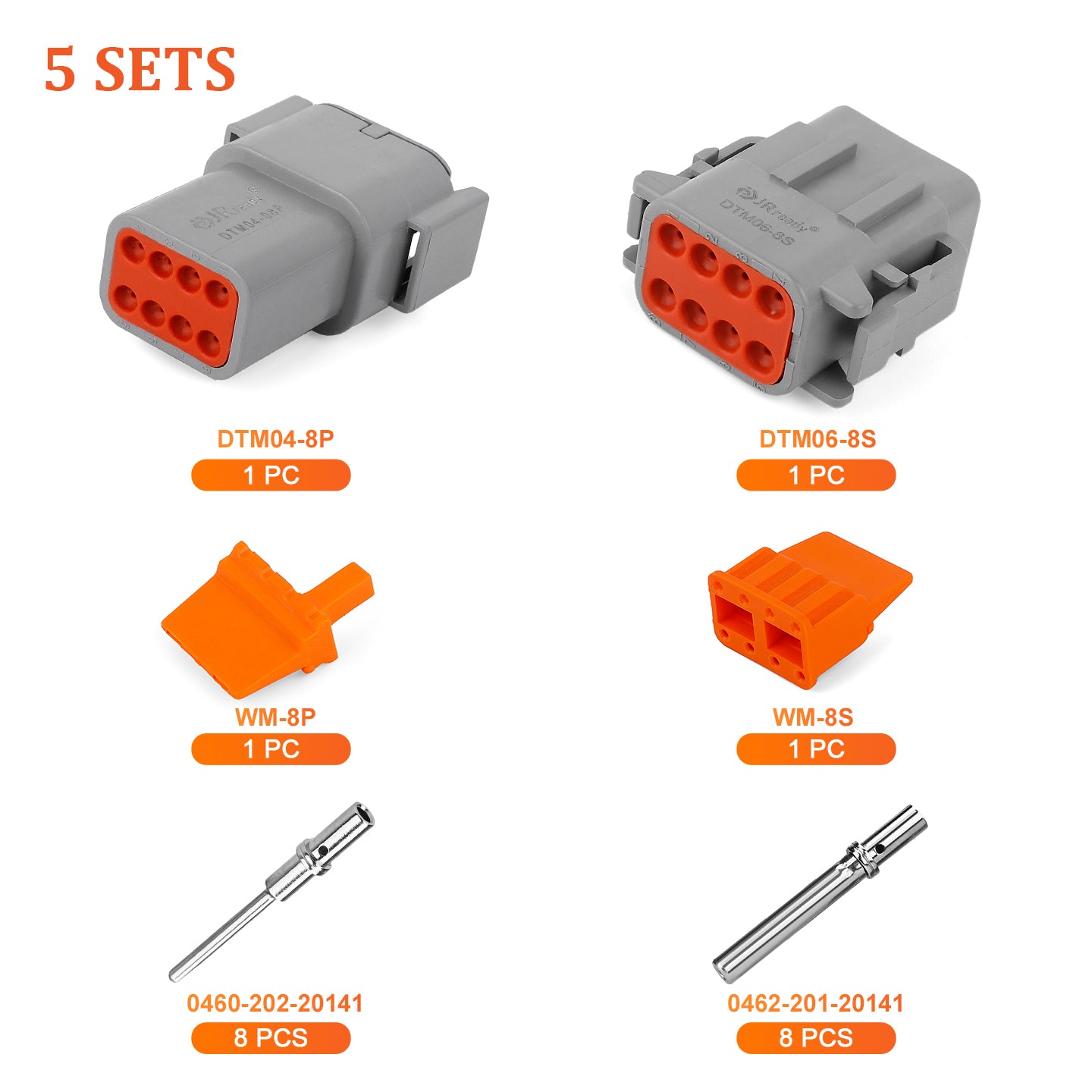

PACKAGE LIST:

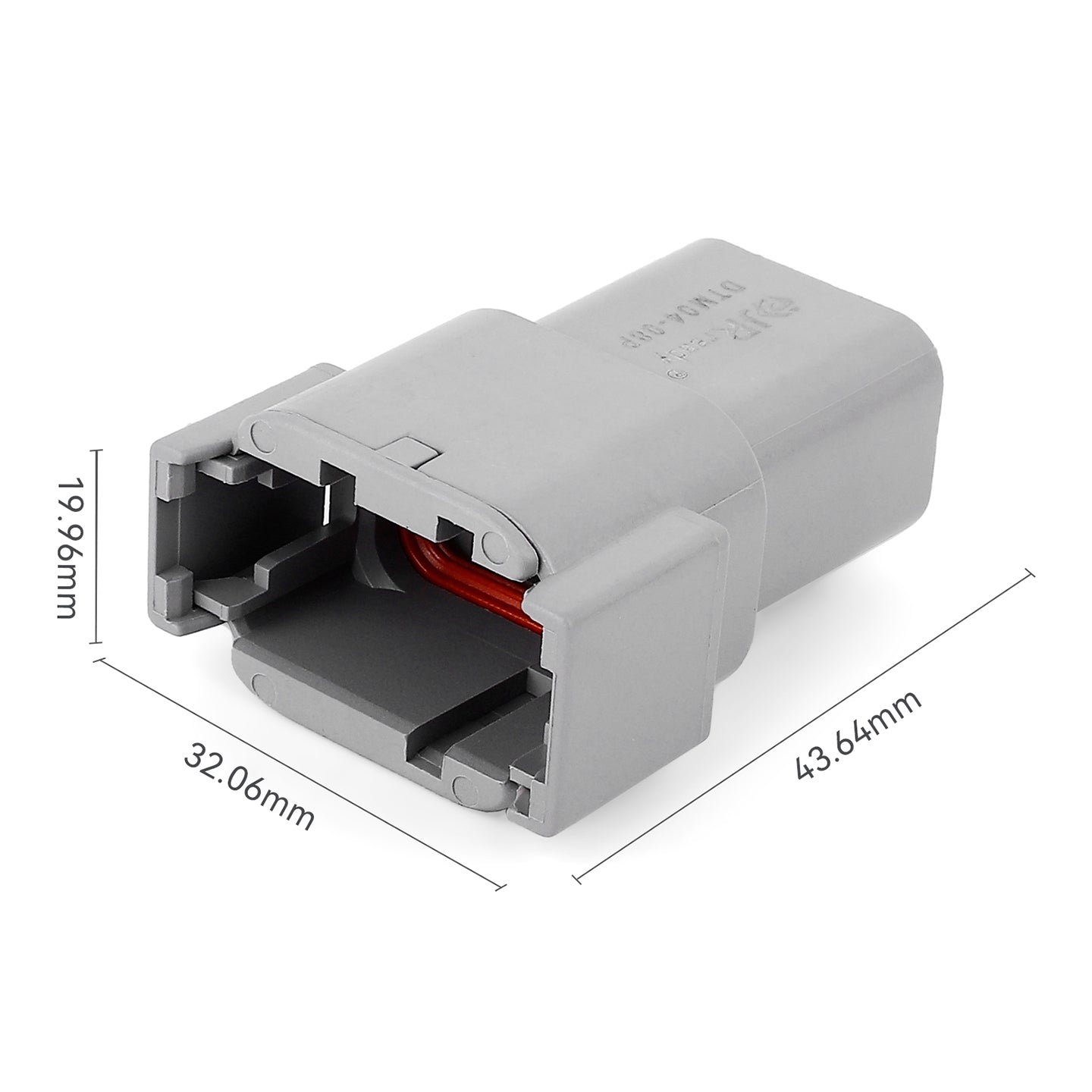

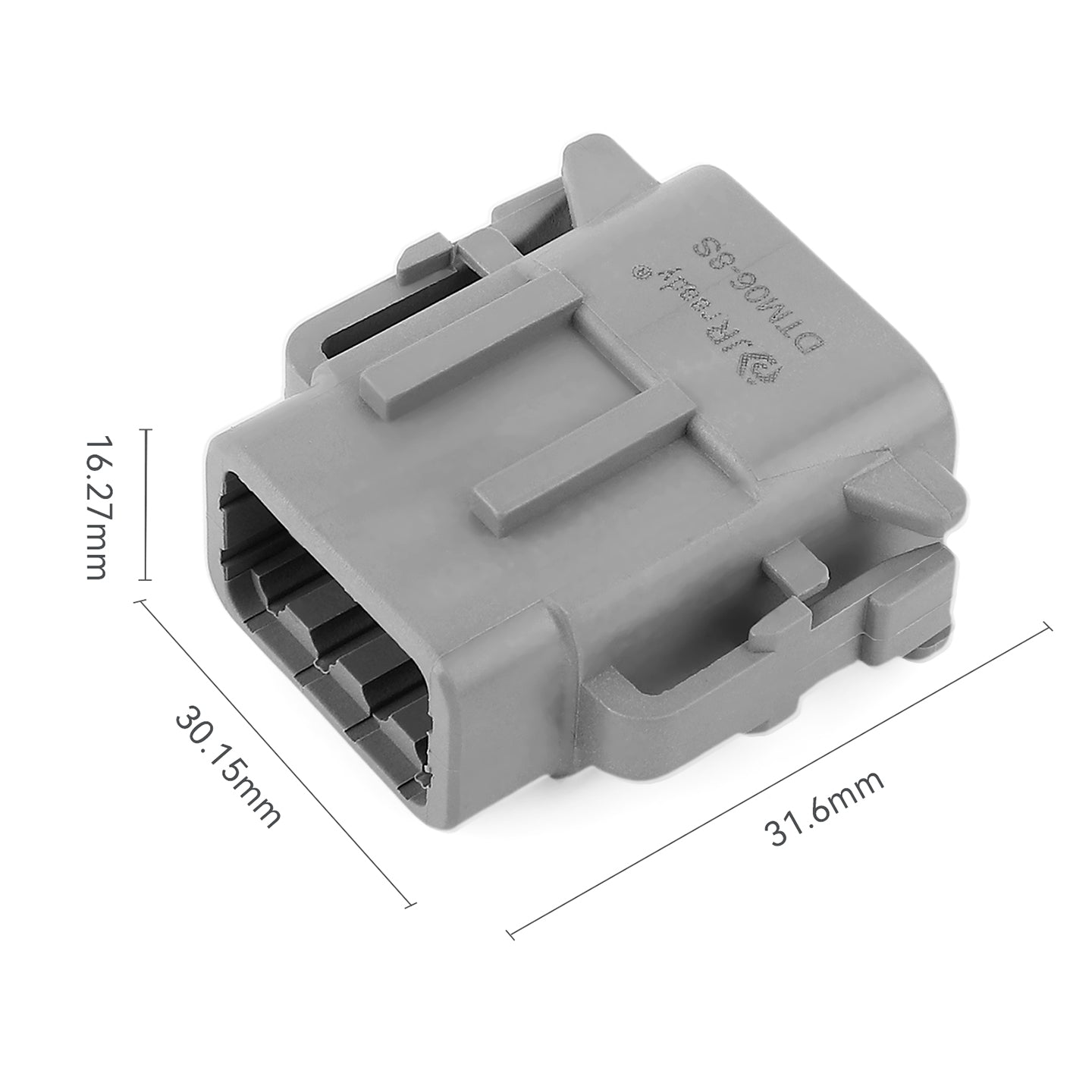

JRready DTM Series 8-Pin connector housings (1 male + 1 female) with solid contacts, 5 Sets
(WM-8P+WM-8S+DTM04-8P+DTM06-8S+0462-201-20141*8+0460-202-20141*8)*5

[EIGHT PRECISION CONTACTS, ZERO TOLERANCE FOR FAILURE]

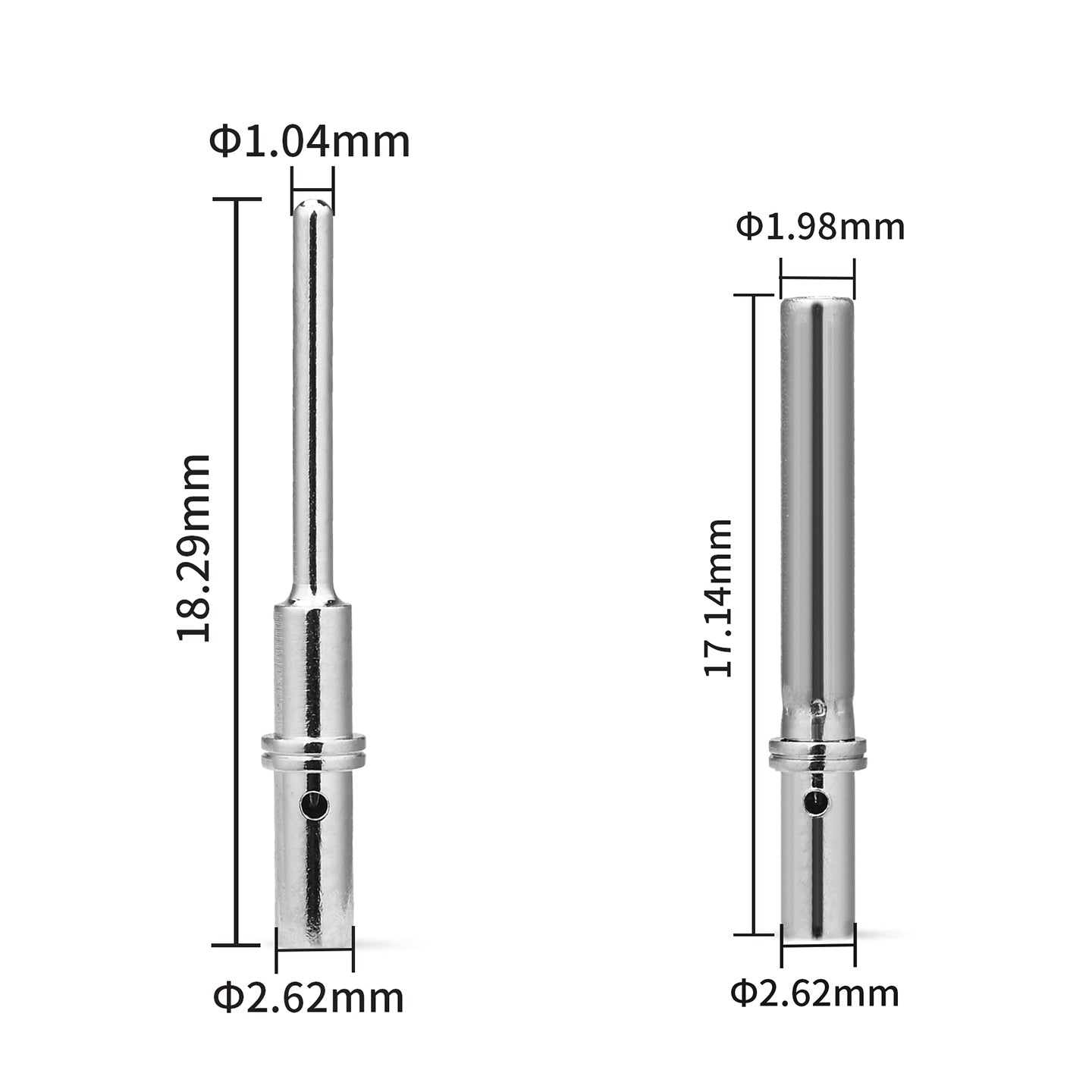

At eight circuits per connector, contact quality isn't optional. Each solid machined contact is precision-turned from tin bronze, delivering tighter dimensional tolerances and more consistent mating force than stamped alternatives across all eight positions. Rated for a minimum of 500 insertion and extraction cycles, this kit is built for the kind of wiring that gets serviced, not just installed.

[IP67 SEALED ACROSS ALL EIGHT WIRE ENTRIES]

More wire entries mean more potential leak points — and the IP67-rated PA66 housings in this kit seal every one of them. UL94V-0 flame retardancy and a -40°C to +125°C operating range keep the assembly intact through temperature swings, moisture exposure, and chemical environments common in heavy truck underhood, marine deck, and agricultural cab installations.

[FULL NICKEL PLATING — EIGHT POSITIONS, ONE STANDARD]

Every machined contact in this kit is nickel-plated end to end, applying the same corrosion resistance uniformly across all eight mating surfaces. No exposed base metal, no weak points at plating transitions — just stable conductivity at 7.5A / 250V AC/DC across 20-22AWG (0.5–0.35mm²) at every position, from the first mate to the five-hundredth.

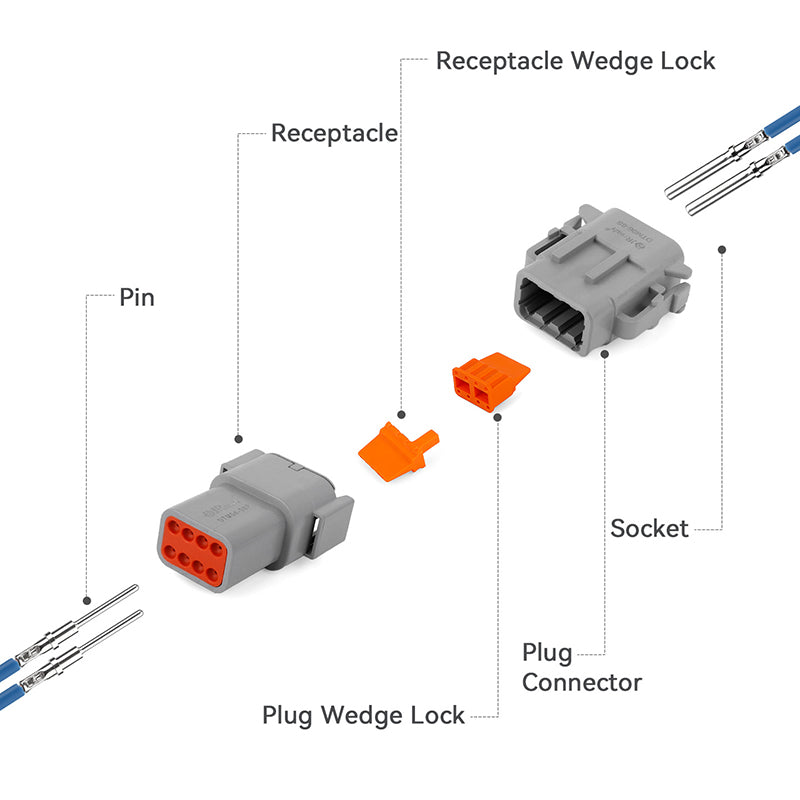

[SINGLE WEDGE LOCK ACTION SECURES ALL EIGHT TERMINALS]

The wedge locks included in each set cover all eight terminal positions in one motion — plug side and receptacle side both locked simultaneously with no individual terminal adjustments needed. Retention force exceeds 60N per position, keeping every circuit secured through the sustained vibration and cable stress that eight-circuit harnesses encounter in heavy-duty applications.

[HIGH-CYCLE RELIABILITY FOR COMPLEX WIRING SYSTEMS]

Eight circuits in a single weatherproof connector pair is the practical choice for ECU harnesses, multi-axis sensor arrays, and body control modules where routing eight separate connectors wastes space and adds failure points. Compatible with DTM series connectors in the field and extending to HDP20, HD30, and DRC series — a direct-fit upgrade for trucks, marine vessels, and agricultural equipment that demands both circuit density and long service life.
