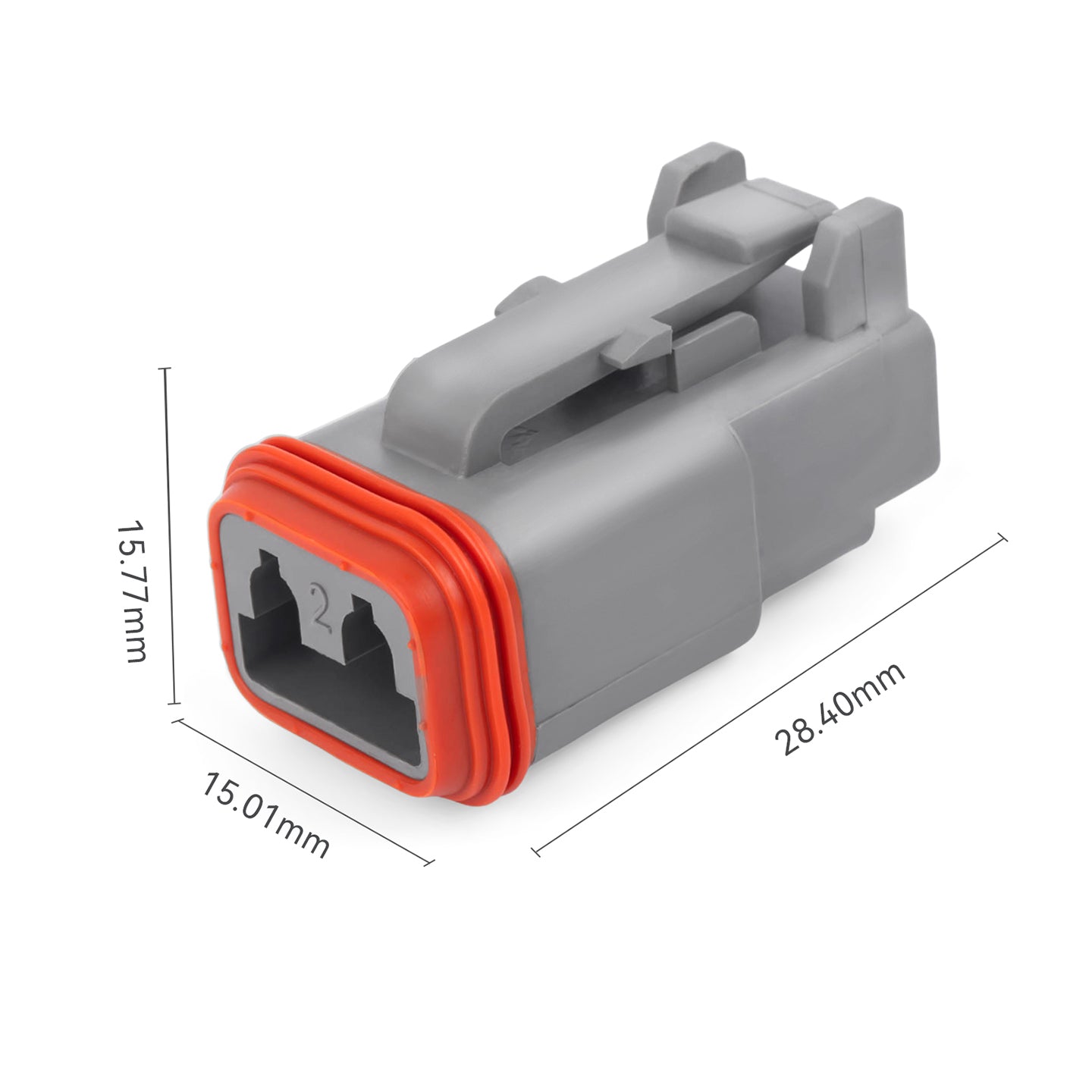

JRready 2-12 Pin Deutsch DT Connector Kit with #16 Solid Contacts, 14-20 AWG - Heavy-Duty Waterproof Marine & Transportation

PACKAGE LIST:

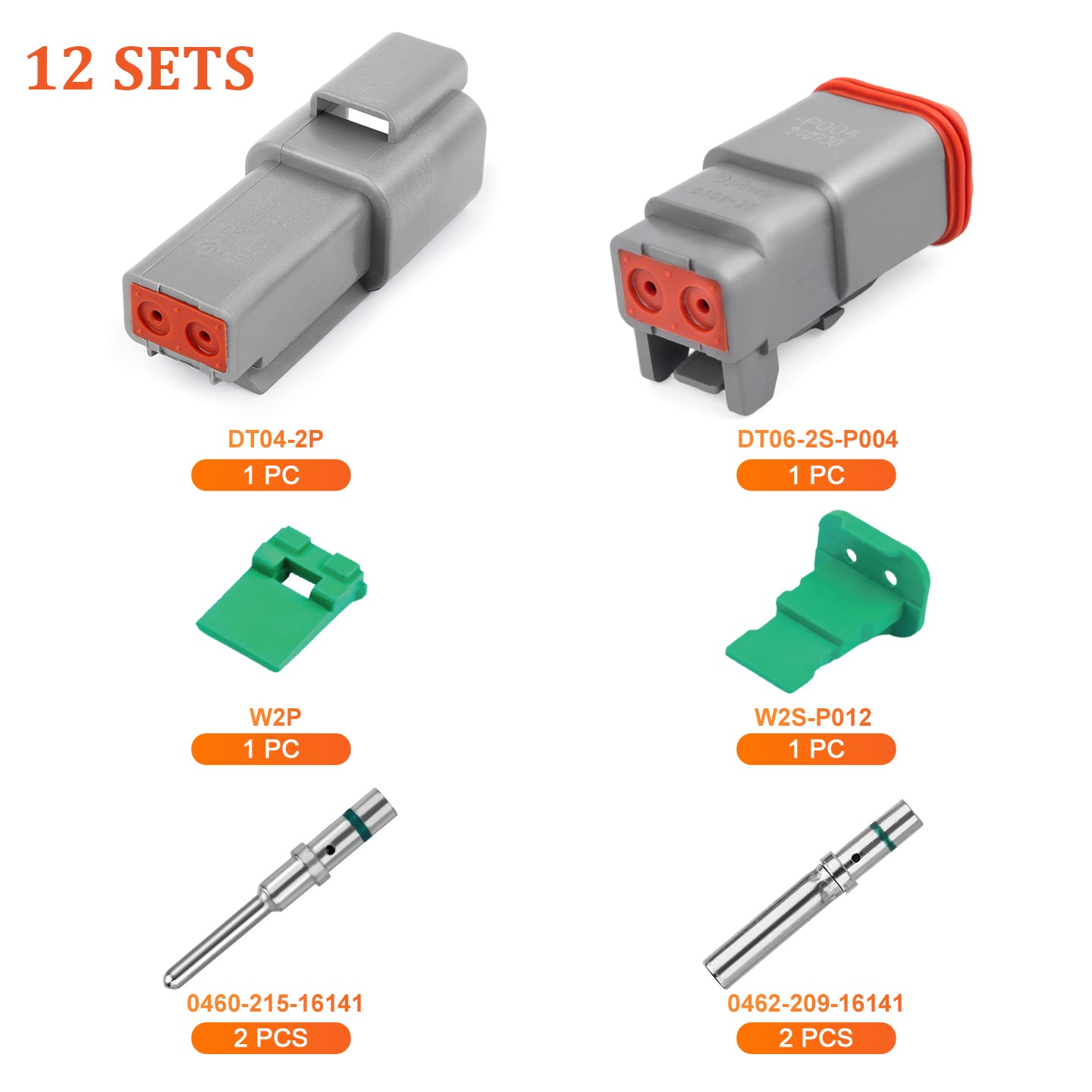

QH6054*12: Connector Kit contains（W2P+DT04-2P+DT06-2S-P004+W2S-P012+0462-209-16141*2+0460-215-16141*2）*12

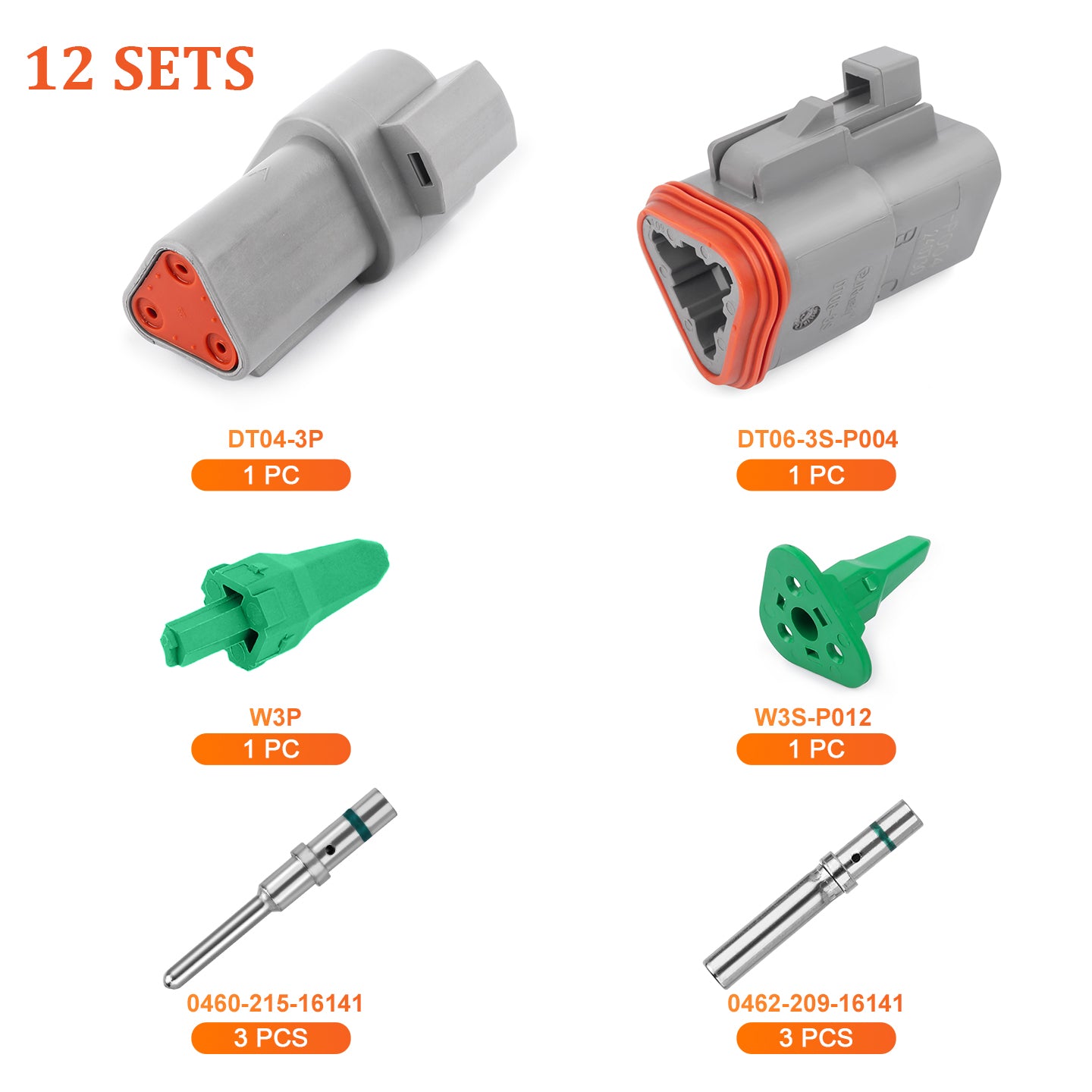

QH6055*12: Connector Kit contains （W3P+DT04-3P+DT06-3S-P004+W3S-P012+0462-209-16141*3+0460-215-16141*3）*12

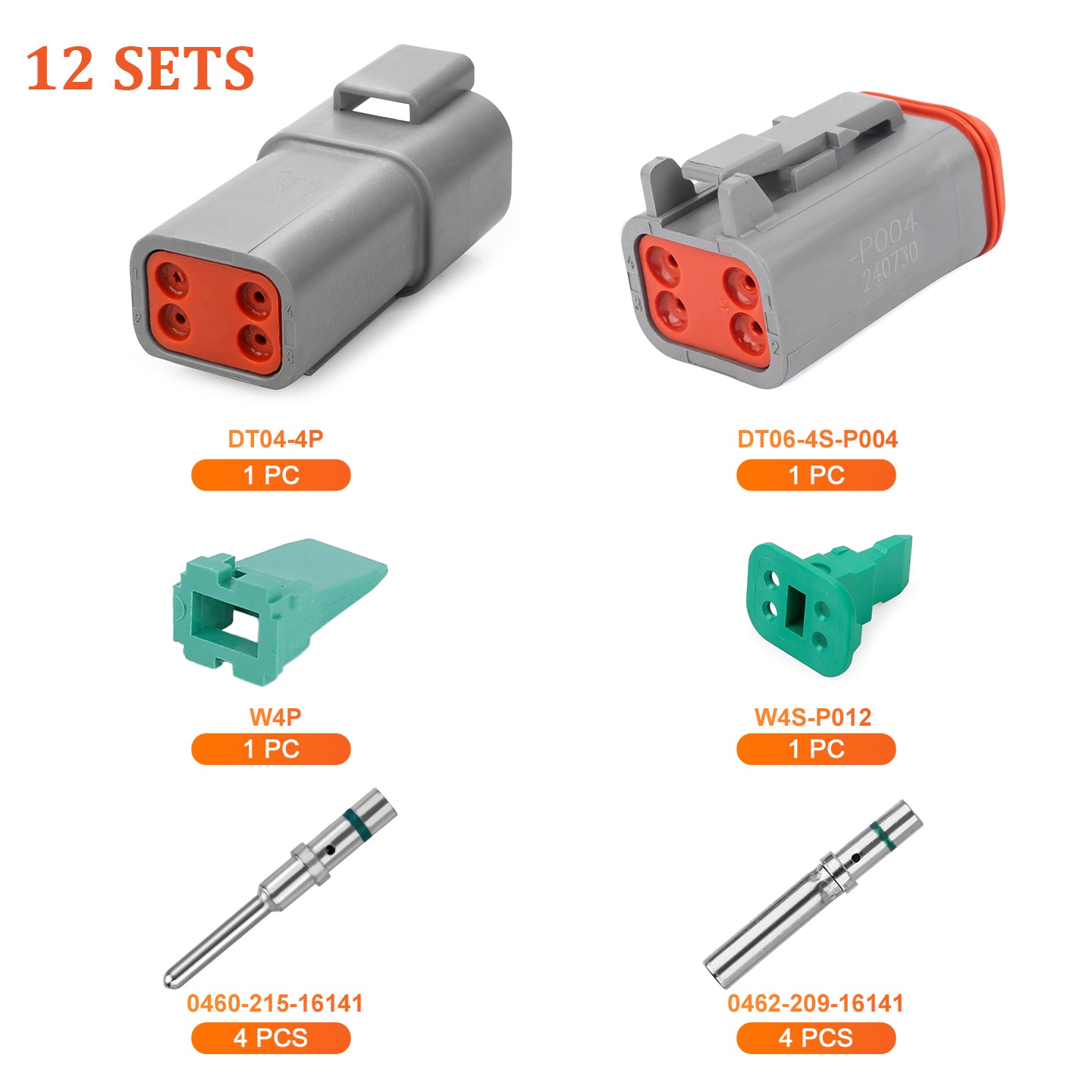

QH6056*12: Connector Kit contains （W4P+DT04-4P+DT06-4S-P004+W4S-P012+0462-209-16141*4+0460-215-16141*4）*12

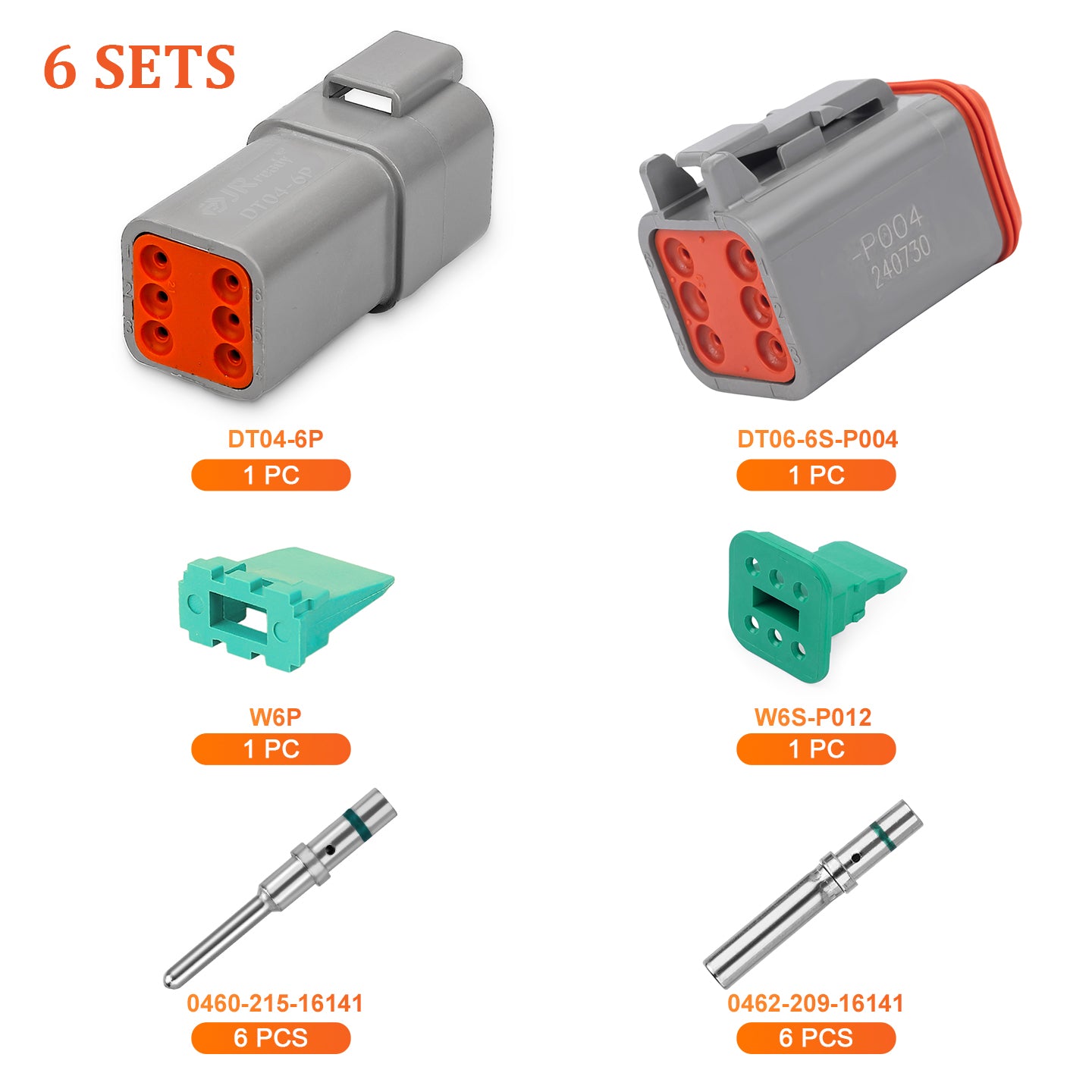

QH6057*6: Connector Kit contains （W6P+DT04-6P+DT06-6S-P004+W6S-P012+0462-209-16141*6+0460-215-16141*6）*6

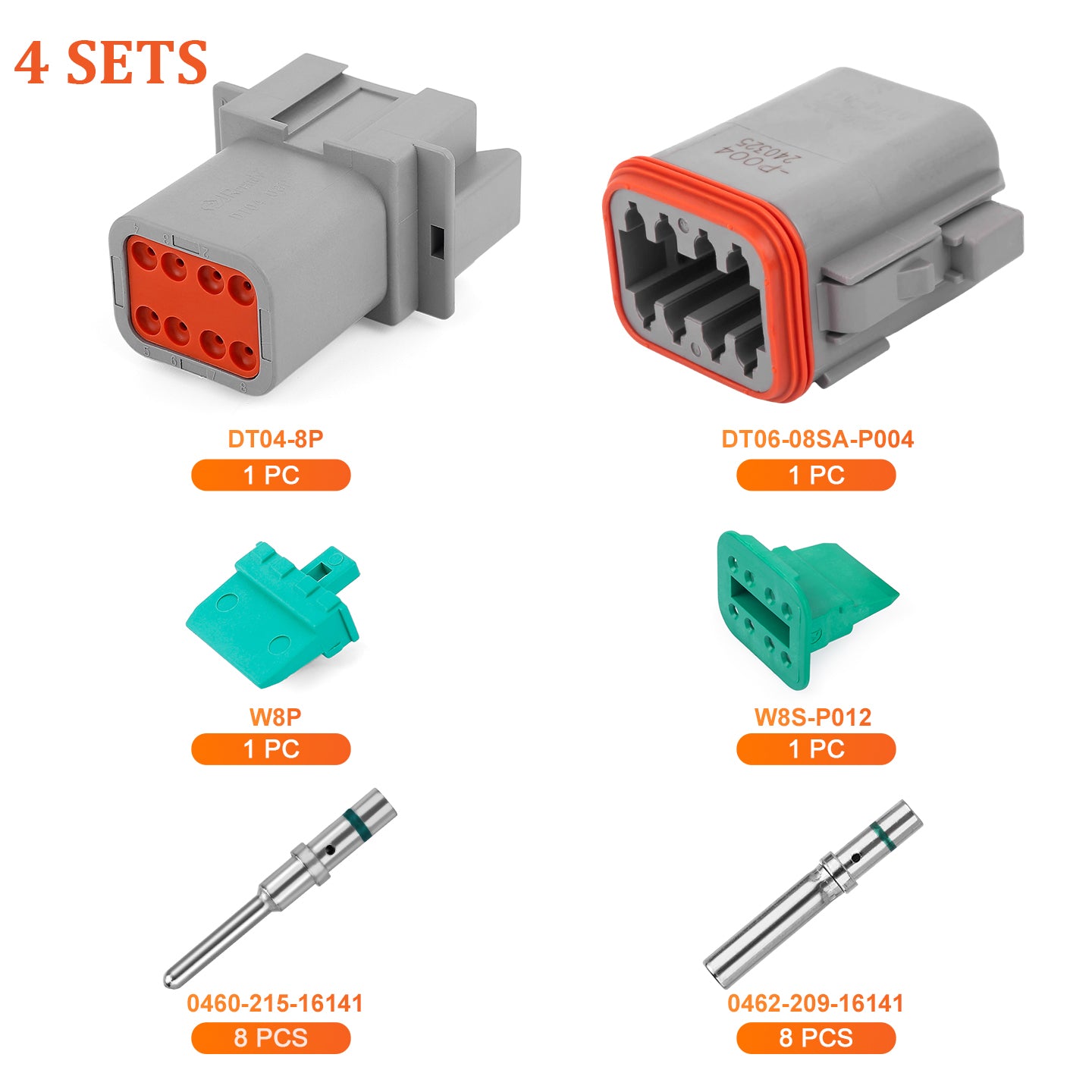

QH6058*4: Connector Kit contains （W8P+DT04-8P+DT06-08SA-P004+W8S-P012+0462-209-16141*8+0460-215-16141*8）*4

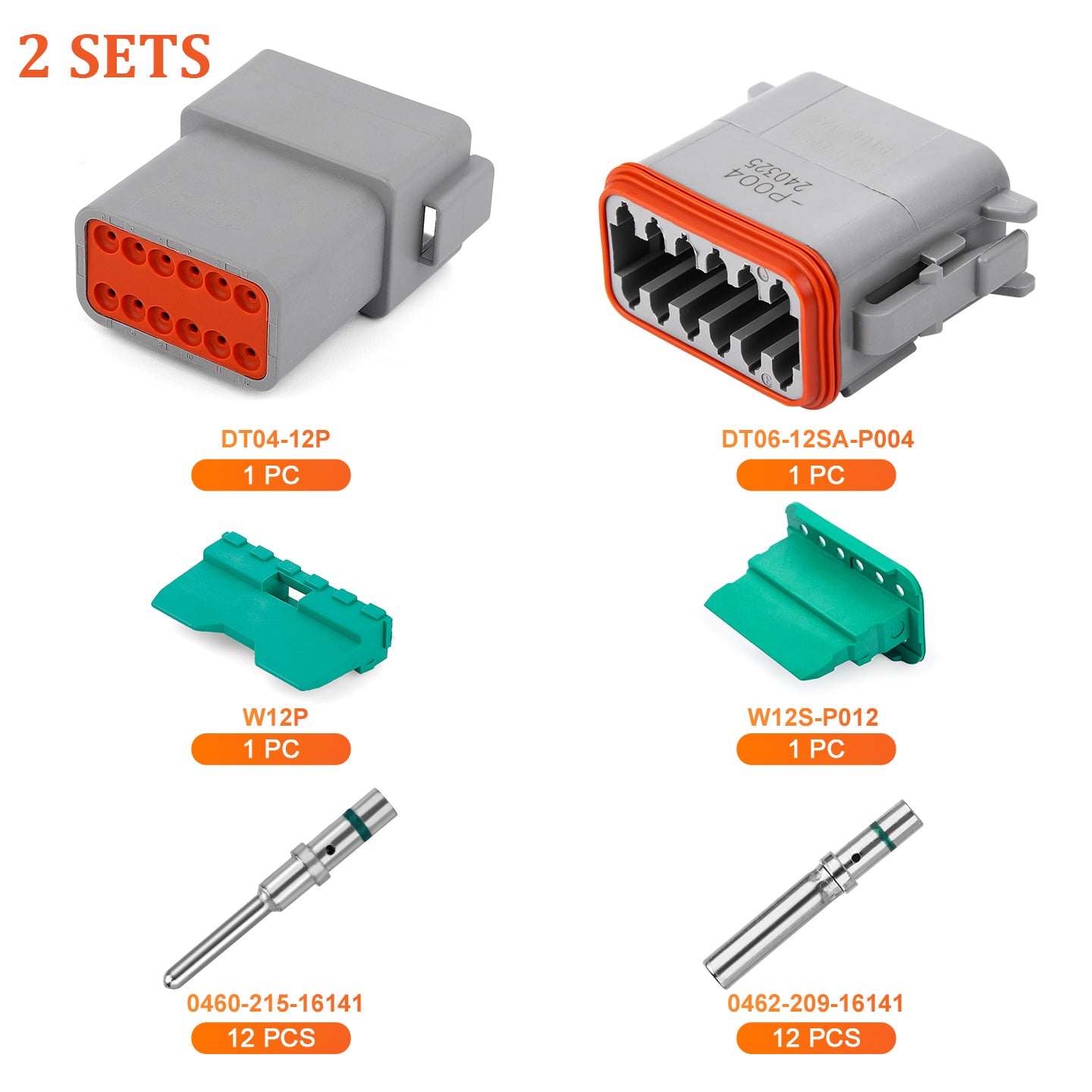

QH6059*2: Connector Kit contains （W12P+DT04-12P+DT06-12SA-P004+W12S-P012+0462-209-16141*12+0460-215-16141*12)*2

[WATERPROOF HOUSING FOR EXTREME ENVIRONMENTS]

Built to perform where standard connectors fail. Each DT connector shell is molded from high-impact PA66 nylon, offering structural rigidity, chemical resistance, and a continuous operation range of -40°C to +125°C. The integrated face seal and individual wire seals block moisture and dust even under direct water exposure — engineered for the engine bay, undercarriage, marine deck, and anywhere failure is not an option.

[VIBRATION-PROOF DUAL WEDGELOCK RETENTION SYSTEM]

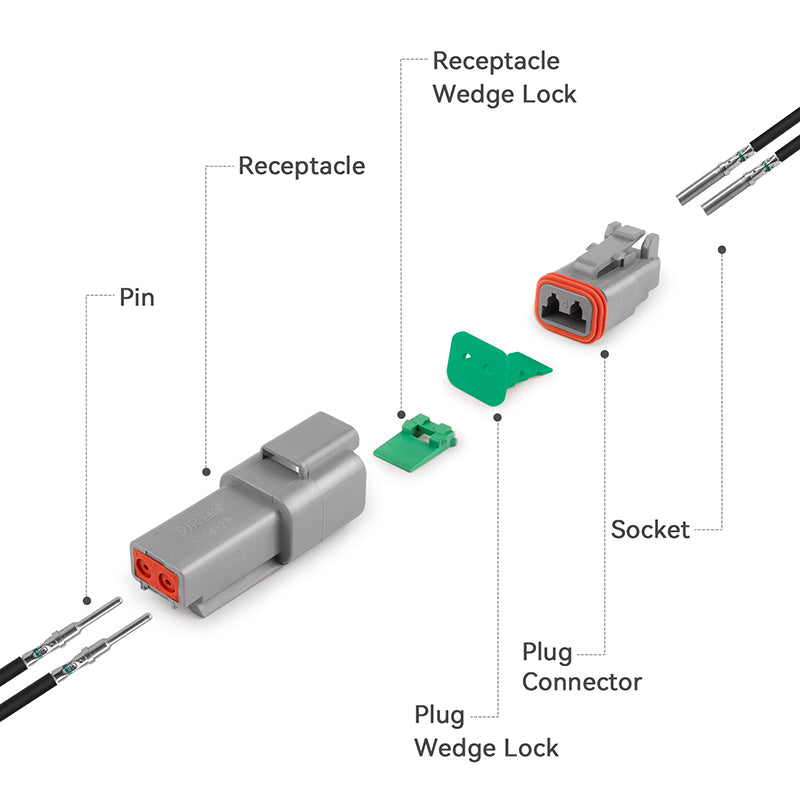

The green wedgelock included with every set isn't just a dust cap — it's the second stage of a two-stage terminal retention system. Once contacts are crimped and inserted, the wedgelock slides in behind them and mechanically prevents terminal back-out under sustained vibration and mechanical stress. Both plug-side and socket-side wedgelocks are included as standard, ensuring every circuit position is fully secured.

[#16 STAMPED CONTACTS FOR RELIABLE FIELD TERMINATIONS]

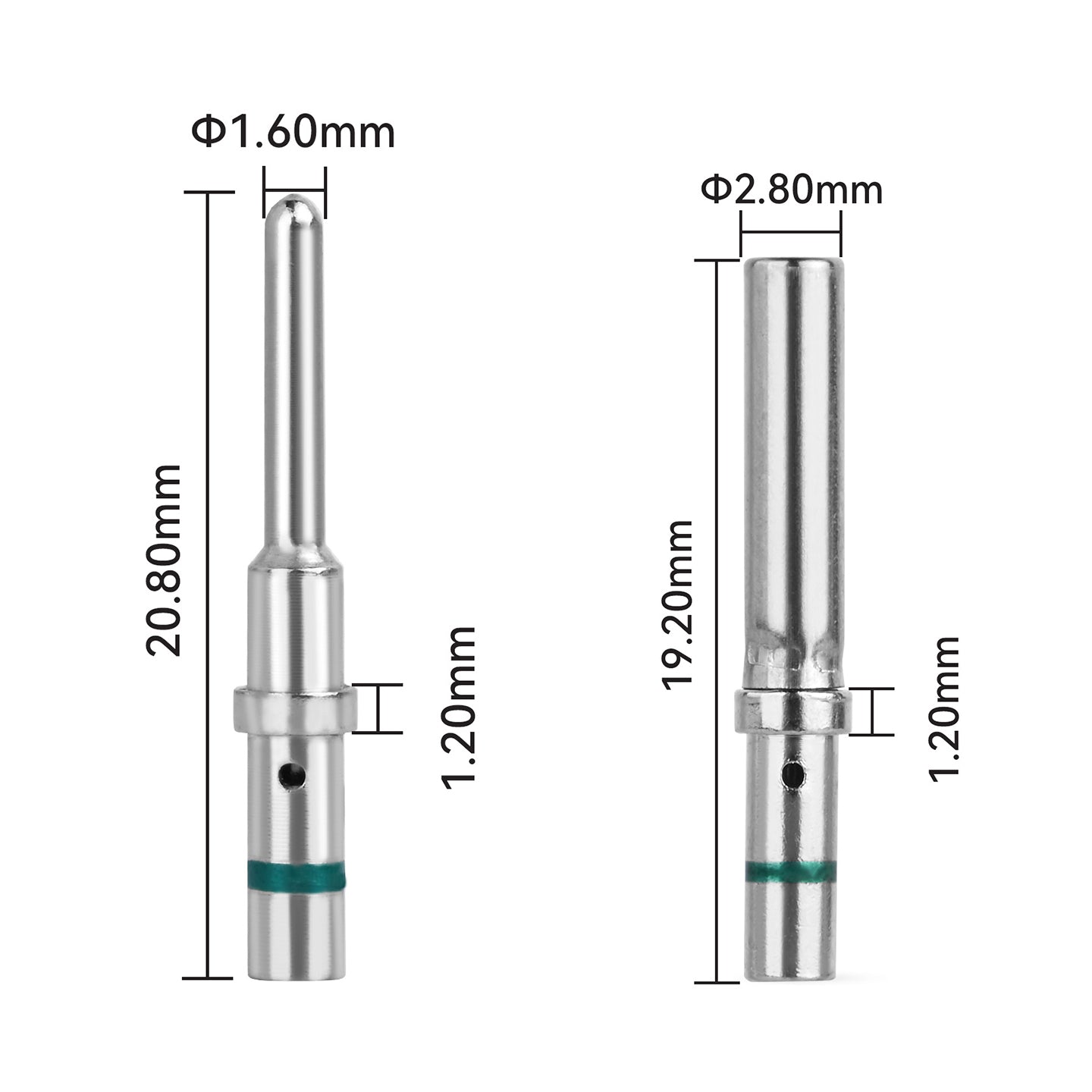

Each kit includes a matched pair of #16 contacts per circuit position — pin and socket — compatible with 14-20 AWG (2.0-0.5mm²) wire and rated at 13A / 250V. These contacts support both solid and stamped pin configurations, delivering stable conductivity across power, ground, and signal circuits in demanding wire-to-wire applications. To achieve clean, gas-tight terminations every time, we recommend pairing this kit with the JRready NEW-DT2 crimp tool, purpose-built for DT Series #16 contacts.

Learn more about the Crimp Tool NEW-DT2 here: JRready NEW-DT2 Deutsch Crimper, Crimping Pliers, New Appearance Conne – JRDTOOLS

[UNIVERSAL ACROSS DEMANDING INDUSTRIES]

Engineered for heavy-duty transportation, marine, alternative energy, agricultural, and industrial applications where reliable connectivity in harsh environments is non-negotiable. These kits are built for real-world field use — connectors mate and de-mate by hand without tools, snap positively with an audible click, and are cavity-numbered for fast, error-free assembly. The six available pin counts — 2, 3, 4, 6, 8, and 12 — cover everything from a single sensor line to a full ECU connector replacement.

[DIRECT-FIT REPLACEMENT FOR STANDARD DT SERIES CONNECTORS]

Engineered to the same cavity dimensions, contact sizing, and mating interface as standard DT series connectors, these kits serve as a direct drop-in replacement for existing DT series wiring without modification. Whether sourcing components for a new build or restocking field repair inventory, the plug, socket, wedgelock, and contacts are fully interchangeable with standard DT series configurations across all six pin counts.
